3.3 4-20mA input – AI1, AI2, AI3, AI4, AI5

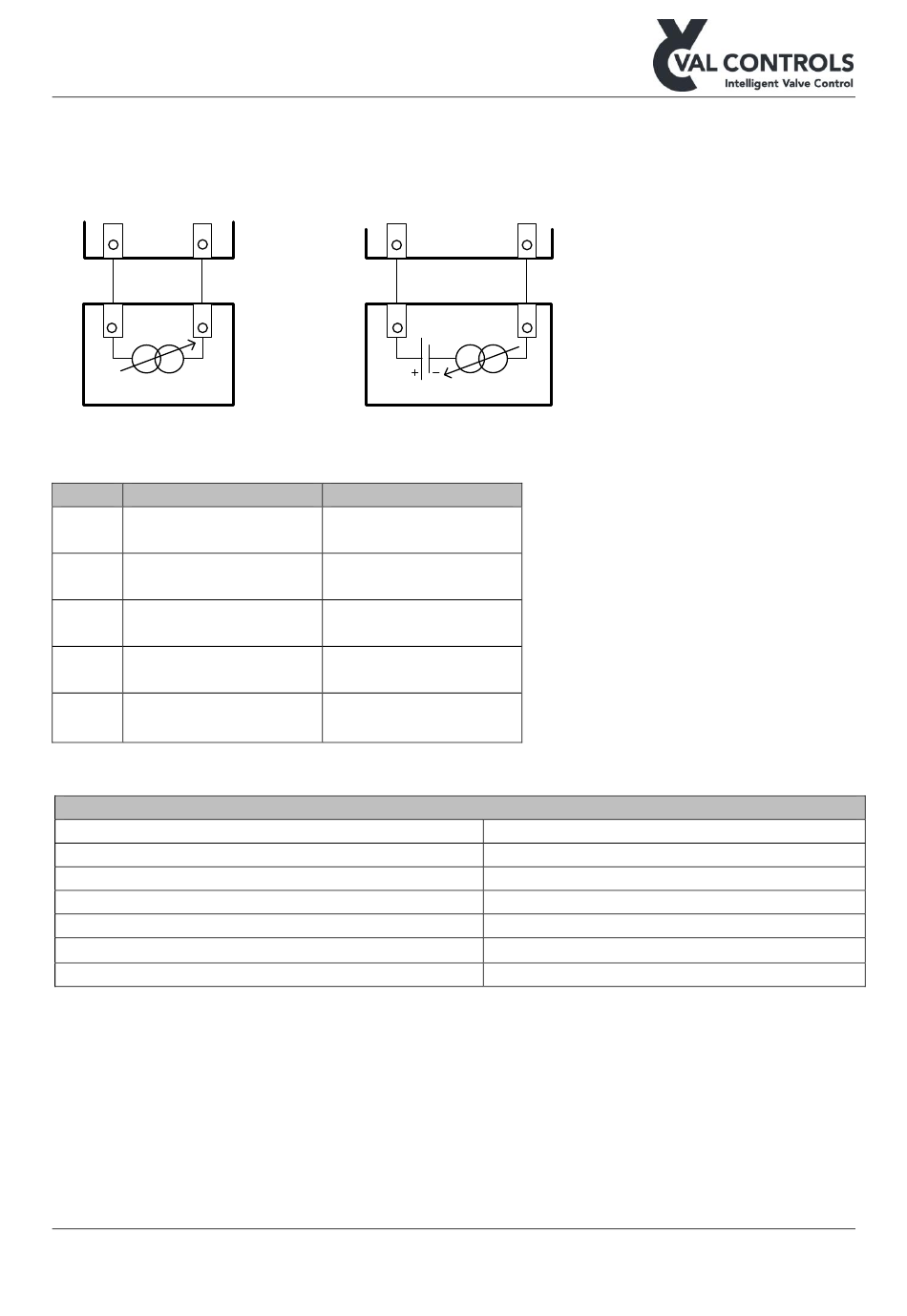

The analogue inputs can be used to connect passive 4-20mA sensors to the device or in the
alternative configuration active 4-20mA sensors.
AI
+ -
+ -
Passive loop
3.3.1 Terminals
Passive sensor
AI1 11 (+)
12 (-)
AI2 13 (+)
14 (-)
AI3 15 (+)
16 (-)
AI4 17 (+)
18 (-)
AI5 19 (+)
20 (-)
3.3.2 Electrical specifications
AI – Analogue inputs
External loop max Rload
Operating area
Minimum span
Cable length
Linearity
Temperature coefficient
Rin
Val Controls A/S • Limfjordsvej 3 • DK-6715 Esbjerg N • Tel. +45 7547 0600
DHW-UM-002
Revision: 3
AI
+
+
Active loop
Active sensor
12 (+)
6 (-)
14 (+)
6 (-)
16 (+)
6 (-)
18 (+)
6 (-)
20 (+)
6 (-)
820 Ohm at 20mA and 16.4VDC
4 – 20mA
12mA
1000 meters
< 0.1%
0.01% / 1°C (Warm-up: 10 min)
< 100 Ohm
