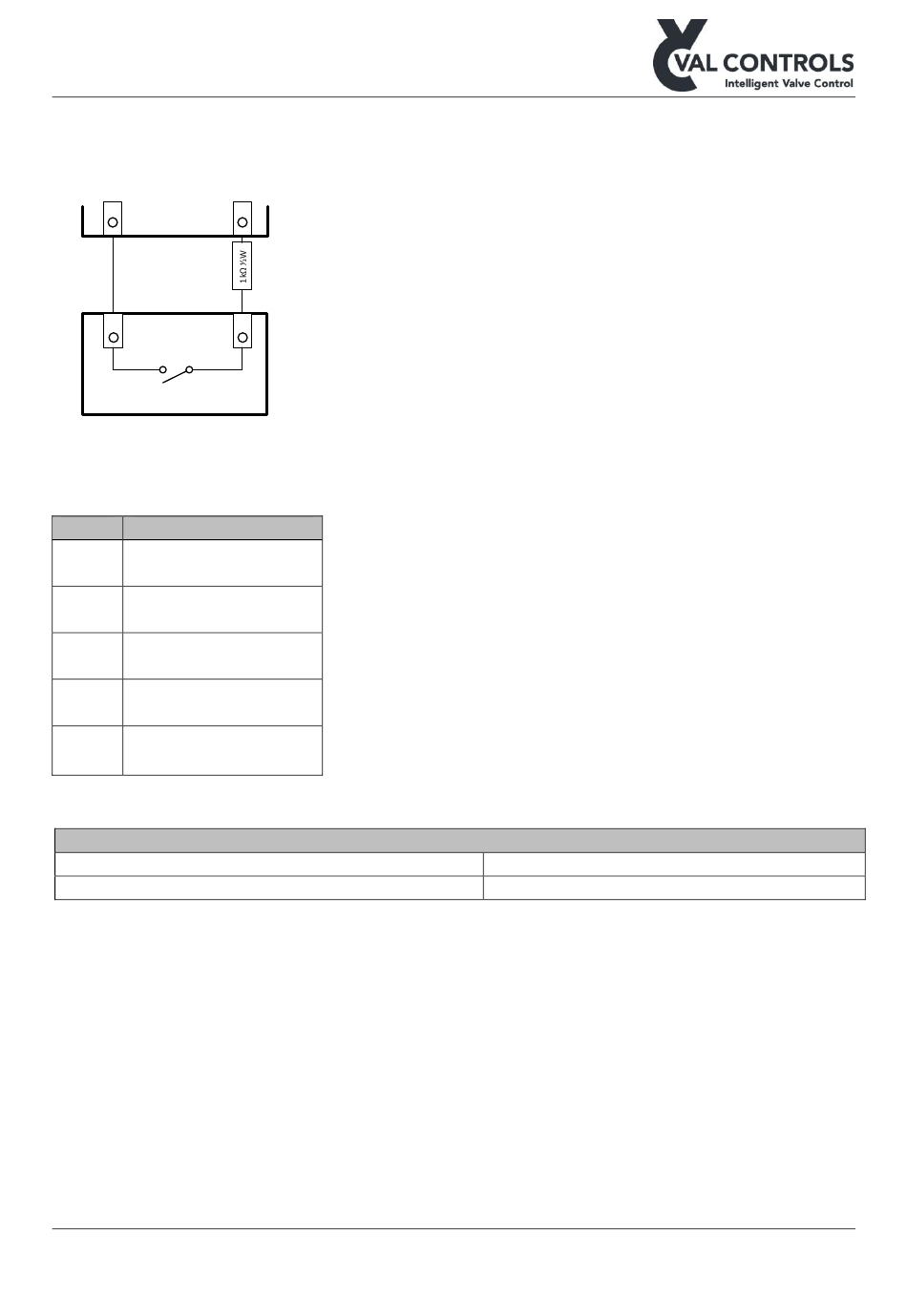

4.3 Digital input – DI13, DI14, DI15, DI16, DI17
DI13 substitutes AI1, DI14 substitutes AI2, and so on.
DI
+
+
Switch
The external resistor must be mounted to get the correct functionality.
4.3.1 Terminals
DI13 11 (+)
12 (-)
DI14 13 (+)
14 (-)
DI15 15 (+)
16 (-)
DI16 17 (+)
18 (-)
DI17 19 (+)
20 (-)
4.3.2 Electrical specifications
DI – Switch
Type
Cable length
