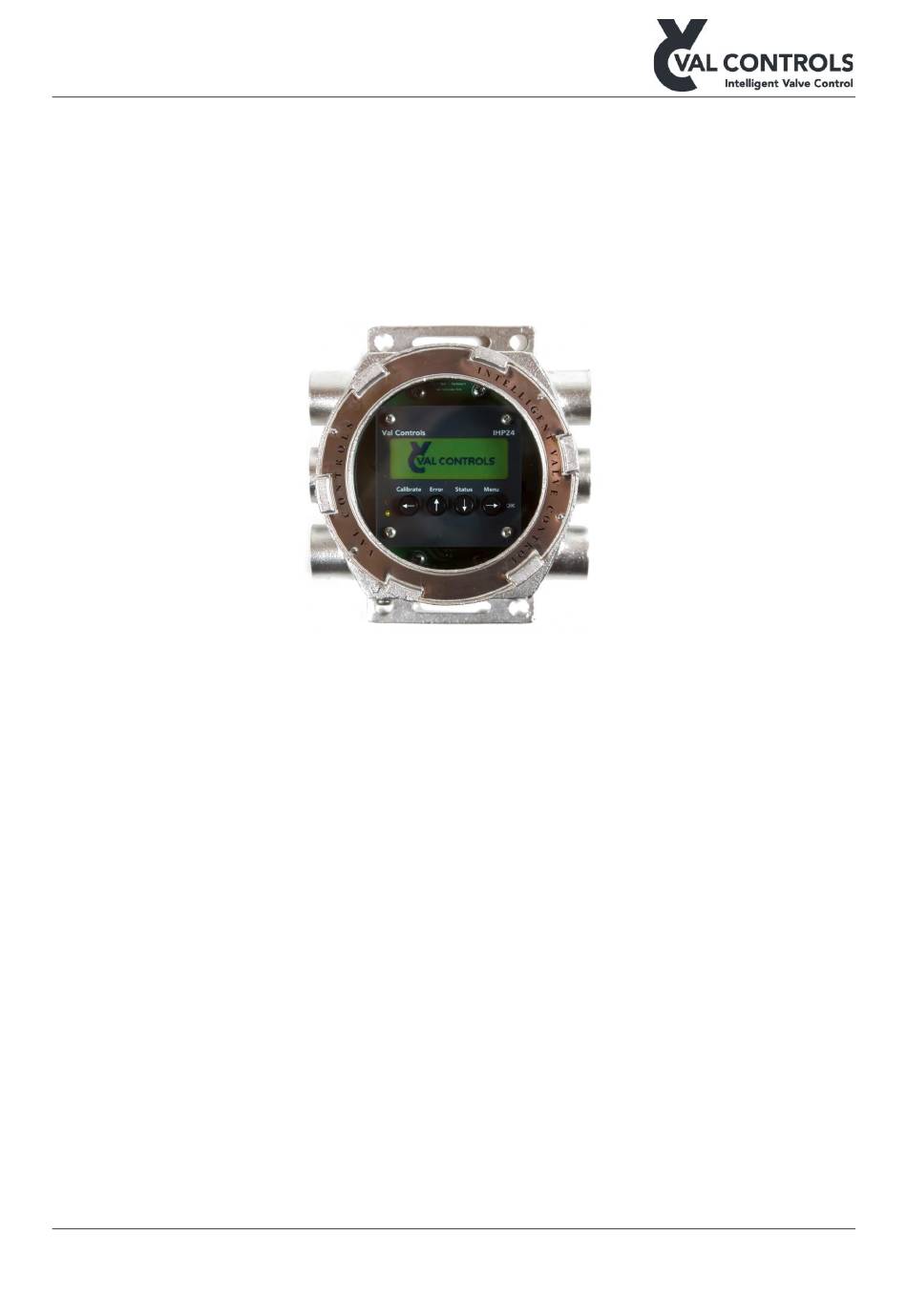

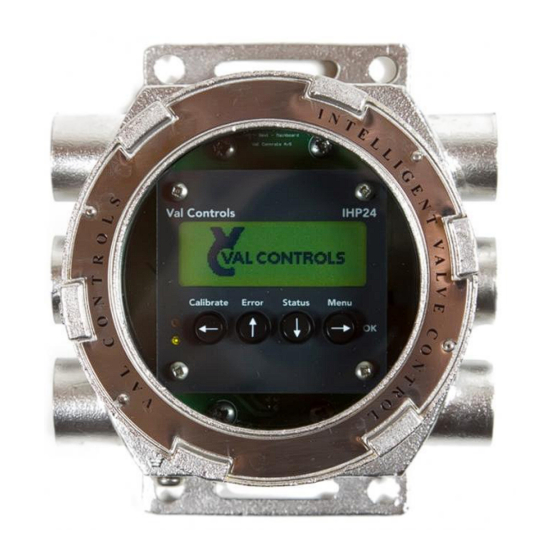

- Page 1 HARDWARE MANUAL Ixx24-BF Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 1/13...
-
Page 2: Table Of Contents
Electrical specifications ......................12 4.3 Digital input – DI13..........................13 4.3.1 Terminals ........................... 13 4.3.2 Electrical specifications ......................13 Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 2/13... -
Page 3: General
IPC24-BF 1.1 Safety instructions For a safe installation of a Val Controls device, the following must be observed. The module must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this product as well as all instructions in this manual. -
Page 4: Communication
< 0.1% Temperature coefficient 0.015% / 1°C (Warm-up: 10 min) HART (optional) FSK, 1200Hz / 2200Hz 400-800mVpp Galvanic isolated Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 4/13... -
Page 5: Modbus
A maximum of 247 nodes can be connected on the same daisy chain bus. Typical shielding of the RS485 bus cable is done on the master side of the cable. Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com •... -
Page 6: Foundation Fieldbus
4 (FB-N) 2.3.2 Electrical specifications FF-Fieldbus FF-Fieldbus - H1 Device Class – Basic Device Interface Termination No internal termination Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 6/13... -
Page 7: Main Board
Power dissipation, no position sensor/loop or < 2W valves are connected. Power dissipation, with maximum load on all < 5W inputs and outputs Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 7/13... -
Page 8: 4-20Ma Input - Ai1
Cable length 1000 meters Linearity < 0.1% Temperature coefficient 0.01% / 1°C (Warm-up: 10 min) < 100 Ohm Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 8/13... -
Page 9: Position Sensor - Ai10
Cable length 1000 meters Linearity < 0.1% Temperature coefficient 0.01% / 1°C (Warm-up: 10 min) < 100 Ohm Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 9/13... -
Page 10: Digital Output - Do1, Do2, Do3, Do4
Max load per digital output up to 48W at 24VDC Max load total up to 192W at 24VDC Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 10/13... -
Page 11: Alternative Digital Inputs
5 (+) 9 (-) DI11 5 (+) 10 (-) 4.1.2 Electrical specifications DI12 Type Switch Cable length 1.5 meters Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 11/13... -
Page 12: Digital Input - Di12
4.2.1 Terminals DI12 1 (+) 5 (-) 4.2.2 Electrical specifications DI12 Type Switch Cable length 1000 meters Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 12/13... -
Page 13: Digital Input - Di13
4.3.1 Terminals DI13 11 (+) 12 (-) 4.3.2 Electrical specifications DI – Switch Type Switch Cable length 1000 meters Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600 DHW-UM-003 Revision: 6 vc@valcontrols.com • www.valcontrols.com 13/13...
