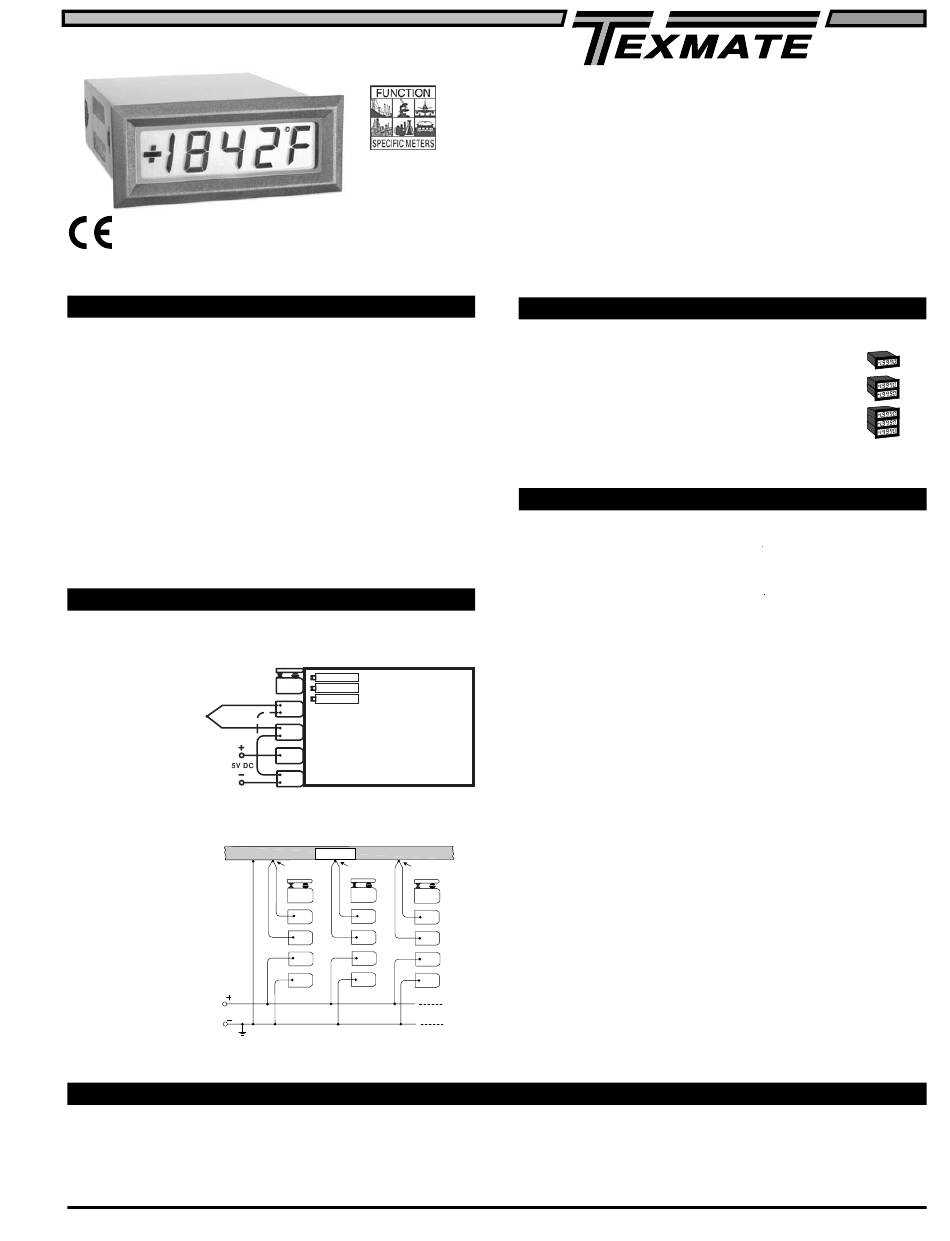

Texmate TM Series Operating

˚C or ˚F, 5V DC powered with screw terminal or edge connector inputs.

General Features

Texmate's popular TM-35 Series of 5V DC powered temperature
meters are available with an LED or LCD display.
The meters are supplied factory-configured either for 'J' or 'K'
thermocouples, and scaled for ˚C or ˚F. On site re-scaling for ˚C
or ˚F is possible. A selectable ˚C/˚F descriptor is included with
every meter. The unique differential input configuration facili-
tates operation with both grounded and ungrounded probes and
allows several meters, operating with grounded thermocouples,
to be powered by the same non-isolated 5VDC supply.
The standard meter is provided with TB-KIT screw terminal
blocks and insulated quick- disconnects. For the greatest con-
venience and ease of use, order the optional preconfigured
Push-On screw terminal connectors. (see Push-On Screw
Terminals and Ordering Information on pages 3 & 4)
Typical Application Connections
Single-Ended Input
For optimum noise
reduction, either the
+ or - lead of the
thermocouple should
be connected to
power supply ground.
Differential Input with Grounded Thermocouples
The unique differen-
tial input of the TM-
35 Series enables
the use of grounded
thermocouples by
several meters pow-
ered from the same
5V DC supply.
5VDC
For additional connection information see page 3.
TM-35 Series LED Displays
TM-35JC ..............3.5 digit LED-Type J °C Thermocouple, 5VDC Pwr
TM-35JF ..............3.5 digit LED-Type J °F Thermocouple, 5VDC Pwr
TM-35KC ..............3.5 digit LED-Type K °C Thermocouple, 5VDC Pwr
TM-35KF ................3.5 digit LED-Type K °F Thermocouple, 5VDC Pwr
September 10, 2003 TM-35X DS (TM08)
TM-Series
A low cost LCD temperature meter for 'J' or 'K' thermocouples,
Zero Offset
H/T
Span
Linearity
T+
T-
+5V
TM-35
GND
Vessel Wall
Hot Junction 1 Hot Junction 2 Hot Junction 3
H/T
H/T H/T
T+
T+ T+
T-
T- T-
+5V
+5V +5V
GND
GND GND
Meter 1
Meter 2 Meter 3
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com

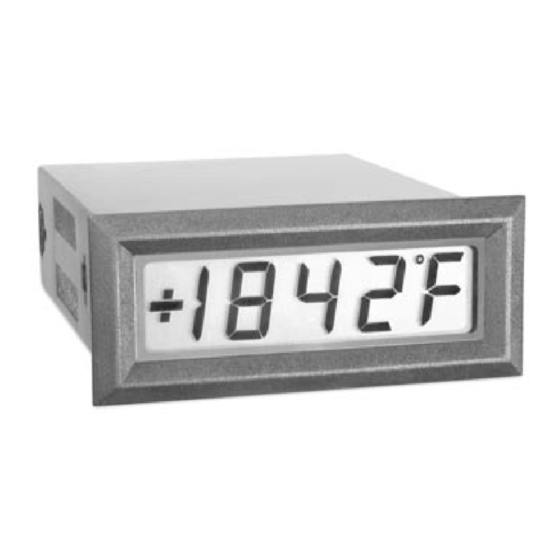

TM-35XJC, TM-35XJF,
TM-35XKC & TM-35XKF
Panel Temperature Meters
3 1/2 Digit 0.48" LCD
in a Slim Bezel Case
Compatibility
The TM-Series is shipped in a standard Slim
Bezel case. The Slim Bezel case is compatible
with the CM, SM, PM, & SP Series of meters.
The TM-Series can be ordered in End Mount
cases for twin mounting or combinations of mul-
tiple center mount cases and two end mount
cases for stack mounting.

Specifications

Input Configuration:..........True differential and single-ended.
Thermocouple Ranges: ....0 to 760˚C
Resistance Effect: ............20µV per 10Ω of lead resistance.
Compensation (RJC): ........Automatic, ±0.1˚C/˚C
Input Protection: ..............25V AC/DC
Normal Mode Rejection: ..>40dB above 50Hz
Common Mode Rejection:..±4V referred to power supply ground.
Conformity Error: ..............±(2˚C + 1 Digit)
Resolution: ........................1˚C or 1˚F
Warm-up Time: ..................One minute to specified accuracy.
Conversion Rate: ..............3 readings per second
Display: ..............................0.48" Liquid Crystal Display (LCD)
Over-range Indication:......Most significant "1" digit and polarity sym-
Power Supply: ..................+4.75 to +5.25V DC at 40mA
Operating Temperature:....-20˚C to +50˚C
Storage Temperature: ......-20˚C to +70˚C
Relative Humidity: ............95% (non-condensing)
Case Dimensions: ............Bezel 2.76" X 1.17" (69.75 X 29.7mm)
Weight: ..............................156 gms (5.5 oz) when packed
TM-35 Series LCD Displays
TM-35XJC ............3.5 digit LCD-Type J °C Thermocouple, 5VDC Pwr
TM-35XJF ............3.5 digit LCD-Type J °F Thermocouple, 5VDC Pwr
TM-35XKC............3.5 digit LCD-Type K °C Thermocouple, 5VDC Pwr
TM-35XKF ..............3.5 digit LCD-Type K °F Thermocouple, 5VDC Pwr
SLIM
BEZEL
'J' Thermocouple
0 to 1400˚F
0 to 1260˚C
'K' Thermocouple
0 to 1999˚F
(consult factory for other types)
typical
±(4˚C + 1 Digit) maximum
±(3˚F + 1 Digit) typical
±(5˚F + 1 Digit) maximum
"Display Hold" & ˚C/˚F descriptor.
bol are displayed with all other digits
blank.
Depth behind Bezel 3.32" (84mm) plus
0.68" (17.27mm) for connector
Page 1
