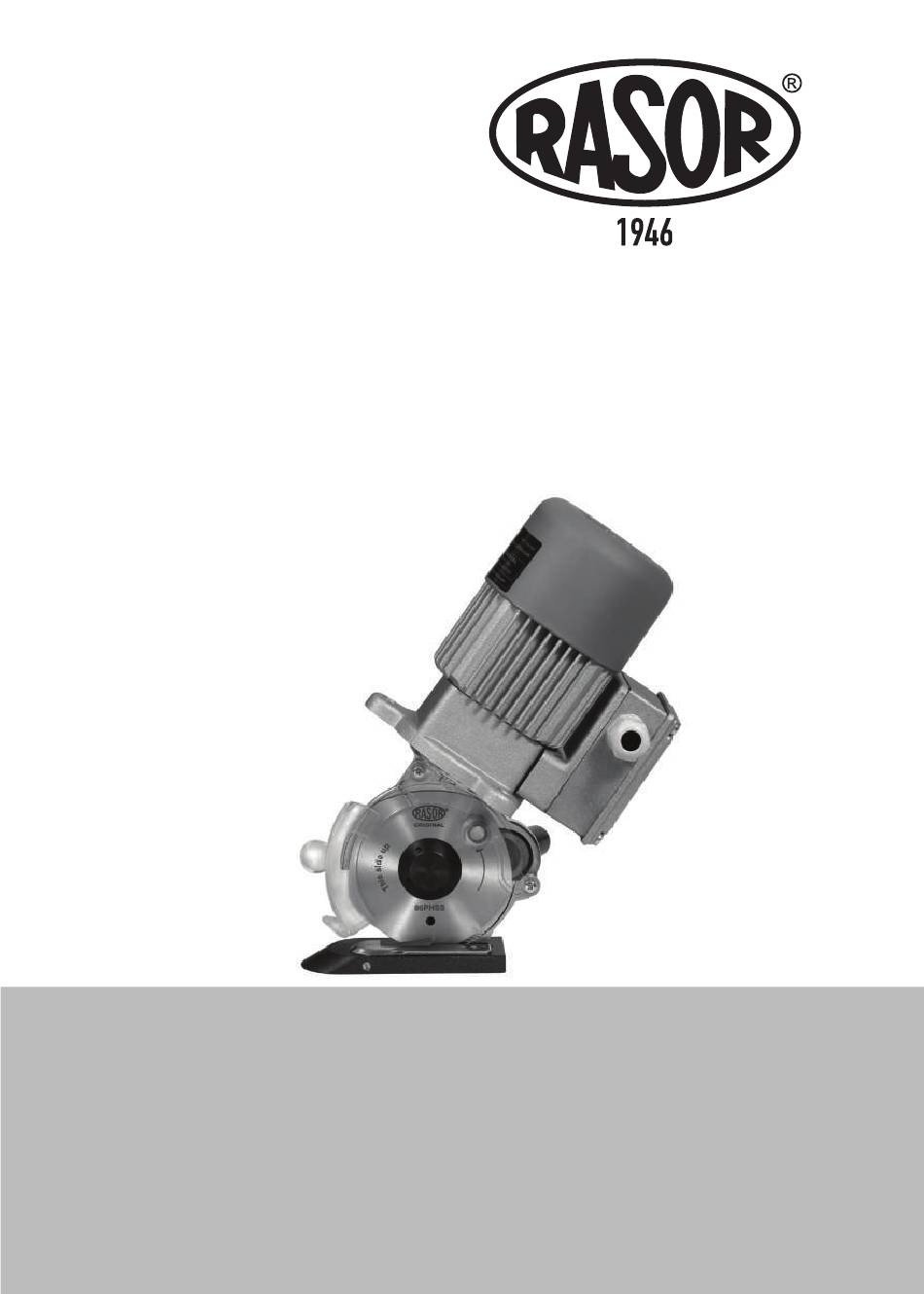

- Page 1 GRT-MINI THREE-PHASE CUTTING UNIT USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit GRT-MINI and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit GRT-MINI must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model READ THE SHEARING Serial number GRT-MINI INSTRUCTION R ISK MANUAL 380-400 Electric data Year of production... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a small cutting unit model GRT-MINI which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes located in the motor support. GRT-MINI can operate continuously and it can cut at various heights by means of multiple installation. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit GRT-MINI is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202:2010. -
Page 8: Use Warnings
Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. It is allowed to assemble cutting unit GRT-MINI on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
6) Carry out the cutting operation. NOTE Cutting unit GRT-MINI can work in a fixed position (the material has to be moved) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling. -
Page 10: Blade Sharpening
To carry out this operation, remove the protective plug “A” located on the motor support of the cutting unit and fill it with lubricating grease Rasor. Screw plug “A” again a few turns. Screw plug “A” a few turns every 2-3 working days (see picture 9). -
Page 11: Blade Replacement
Rasor can be seen by the operator. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION Check the distance between the blade and the counterblade Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between the Check the fabric thickness blade and the counterblade Check the compatibility between blade and fabric Make sure that the motor turns correctly Reduce the feeding speed... - Page 14 The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®...
