Introduction

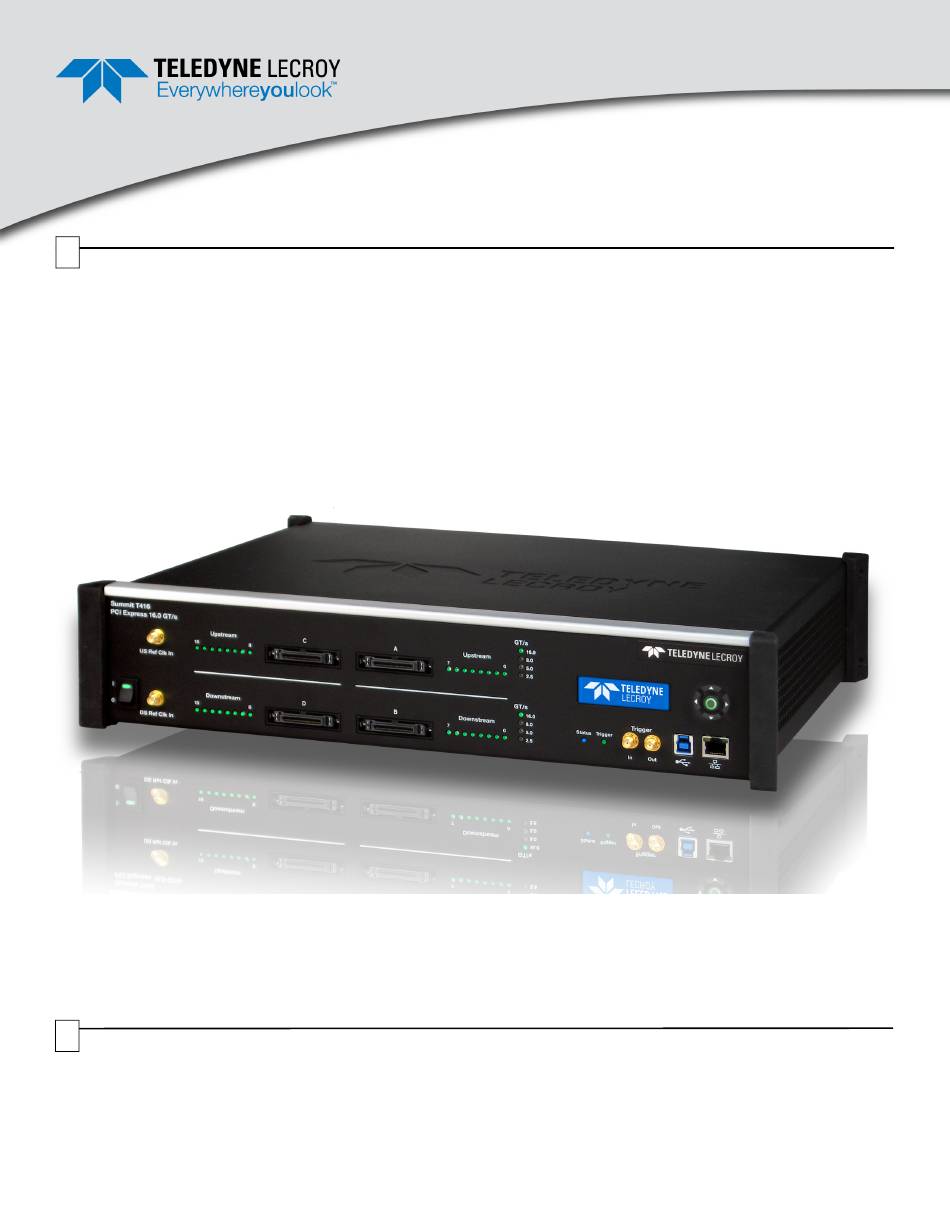

The Summit T416 system is a high-end comprehensive analysis tool to display and analyze PCI Express 4.0 bus traffic. A single Summit
T416 can capture up to 16 lanes of traffic and is equipped with up to 128 GB of capture memory for exceptional trace depth. The Summit
T416 can monitor, capture, decode and analyze PCIe
T416 protocol analyzer supports multiple PCIe storage protocols such as SATA Express, NVM Express and SCSI Express and also
supports side band SMBus protocols such as MCTP and NVMe-MI. A Gen4 compatible interposer is required in order to tap in to Gen4
traffic.
Use this document for quick installation and setup.
If you experience problems or need more information, see the PCI Express Protocol Analysis Summit T4 Analyzer User Manual on the
Installation DVD or at the
Teledyne LeCroy web site.
teledynelecroy.com/sw/pciexpress
2
Components
The analyzer package includes the following components:
•

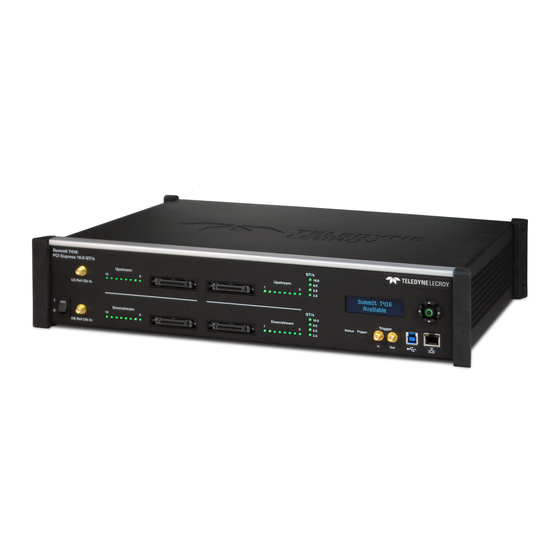

Summit T416 analyzer system
•
AC Power Cable
•
USB 3.0 and Ethernet cables (one of each)
Please see the Summit T416 User Manual on the installation DVD for component specifications and further details.
Summit T416
PCI Express 4.0
Quick Start
®
protocol traffic with data rates from 2.5 GT/s to 16.0 GT/s. The portable Summit
Summit T416 Protocol Analyzer
•
PCIe Protocol Suite Installation DVD-ROM
•
Quick Start Guide (this document)
®
Protocol Analyzer
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Lecroy Summit T416
Summary of Contents for Teledyne Lecroy Summit T416
- Page 1 Introduction The Summit T416 system is a high-end comprehensive analysis tool to display and analyze PCI Express 4.0 bus traffic. A single Summit T416 can capture up to 16 lanes of traffic and is equipped with up to 128 GB of capture memory for exceptional trace depth. The Summit T416 can monitor, capture, decode and analyze PCIe ®...
-
Page 2: Front Panel Description
Inspect the received shipping container for any damage. Unpack the container and account for each of the system components listed on the accompanying packing list. Visually inspect each component for absence of damage. In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper’s inspection. Front Panel Description [13] Trigger LED: Lights when Summit T416 triggers on an event. - Page 3 Required applications: For tips as for how to improve on the performance of the Teledyne LeCroy analysis Microsoft Internet Explorer, version 6 or newer. To view the manuals, datasheets and system and more specifically on the performance of the software, please refer to the other documents, you would need to install ‘Adobe Acrobat Reader’...
-
Page 4: Environmental Conditions
Summit T416. Making Your First Recording Connect Summit T416 to the system under test using an interposer or probe, and then configure the Recording Options. You can then test the Analyzer by creating a short snapshot recording. Connect Summit T416 to System under Test using an Interposer or Probe For a slot interposer, do the following: Insert a Gen4 interposer into a PCI Express slot that you want to monitor.
