USB Advisor T3
Quick Start
1
Introduction
The Teledyne LeCroy USB Advisor T3™ USB 3.0 Protocol Analyzer is a
verification system for USB development and testing. It supports both USB 2.0 and
USB 3.0. It is designed to record USB traffic and graphically present the logical
transactions and events. It connects to a host machine (laptop or desktop PC) via
USB 2.0.
Please see the Readme file on the installation CD for the latest information on
PC requirements and supported operating systems.
The system can monitor traffic between USB 2.0 links using standard high-speed
compliant cables.
If configured for USB 3.0 testing, the system supports monitoring between
SuperSpeed links using USB 3.0 cables.
2
Components
The Teledyne LeCroy Advisor T3 Analyzer package includes the following items:
•

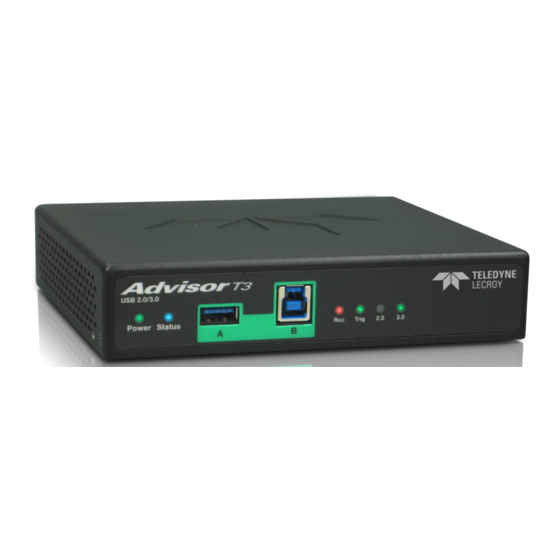

One Teledyne LeCroy USB Advisor T3 Analyzer
•
DC Power Adaptor
•
USB cables (three)
•
Installation CD-ROM, including documentation
•
Quick Start Guide
•
Carrying Case
Please see the USB Protocol Suite User Manual on the installation CD for
component specifications.
