1
Introduction
The Summit T3-8 system is a comprehensive analysis tool to display and analyze data traffic for PCI Express 3.1 bus
specification. The Summit T3-8 can capture up to 8 lanes of traffic and depending on configuration up to 4 GB trace depth
with a single unit. Larger trace depths can be achieved by using a second T3-8 unit in expansion mode providing up to
8 GB and bus monitoring up to x16 lanes. The Summit T3-8 can monitor, capture, decode and analyze PCIe protocol with
data rates up to 8.0 GT/s. The Summit T3-8 protocol analyzer can support multiple PCIe storage protocols such as SATA
Express, NVM Express and SCSI Express.
Use this document for quick installation and setup.
If you experience problems or need more information, see the Summit T3-8 User Manual on the Installation DVD or at the
Teledyne LeCroy web site.
2
Components
The analyzer package includes the following components:
•

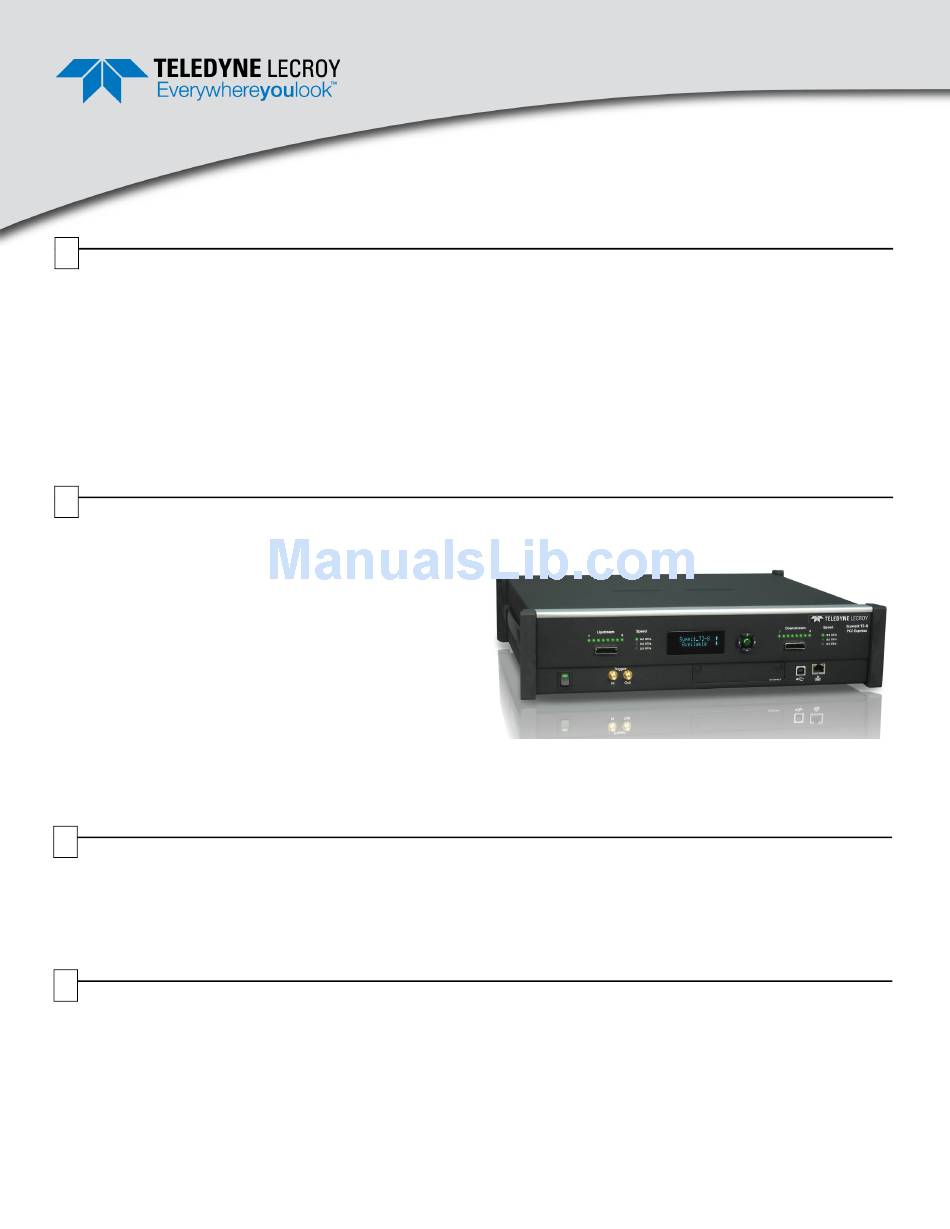

Summit T3-8 analyzer system
•
AC Power Cable
•
USB and Ethernet cables
•
PCIe Protocol Suite Software program DVD-ROM
•
Quick Start Guide (this document)
Depending on configuration, the package may also include:
•
One probe cable for x8 recording
•
Slot interposer
•
MidBus Probe kit
Please see the Summit T3-8 User Manual on the
installation DVD for component specifications and further
details.
3
Unpacking the Analyzer
Inspect the received shipping container for any damage. Unpack the container and account for each of the system
components listed on the accompanying packing list. Visually inspect each component for absence of damage.
In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper's inspection.
4
Environmental Conditions
•
Temperature: Operating 32° F to 122° F (0° C to 50° C)
•
Temperature: Non-Operating 14° F to 176° F (-10° C to 80° C)
•
Humidity: Operating 10% to 90% RH (non-condensing)
Summit T3-8
PCI Express Protocol Analyzer
Quick Start Guide
Summit T3-8 Protocol Analyzer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Lecroy Summit T3-8
Summary of Contents for Teledyne Lecroy Summit T3-8
-
Page 1: Environmental Conditions
The Summit T3-8 system is a comprehensive analysis tool to display and analyze data traffic for PCI Express 3.1 bus specification. The Summit T3-8 can capture up to 8 lanes of traffic and depending on configuration up to 4 GB trace depth with a single unit. -
Page 2: Front Panel Description
Interposer has electrostatic-sensitive components. required. Handle only at static-safe work stations. Installing the Software The PCIe Protocol Analysis operates all of Teledyne LeCroy’s PCI Express Protocol Analyzer and Exerciser products and and should be installed on a ® ® Microsoft Windows -based host machine. - Page 3 Please remember that storing large captured traces can result in multiple gigabytes of file sizes and can quickly fill your available storage space. • To take full advantage of the rich visualization and analysis of Teledyne LeCroy software it is recommended that the display is set to at least 1050 lines of vertical resolution with at least 24-bit color depth.
- Page 4 Summit T3-8. Making Your First Recording Connect Summit T3-8 to the system under test using an interposer or probe, and then configure the Recording Options. You can then test the Analyzer by creating a short snapshot recording. Connect Summit T3-8 to System under Test using an Interposer or Probe For a slot interposer, do the following: Insert the slot interposer into a PCI Express slot that you want to monitor.
