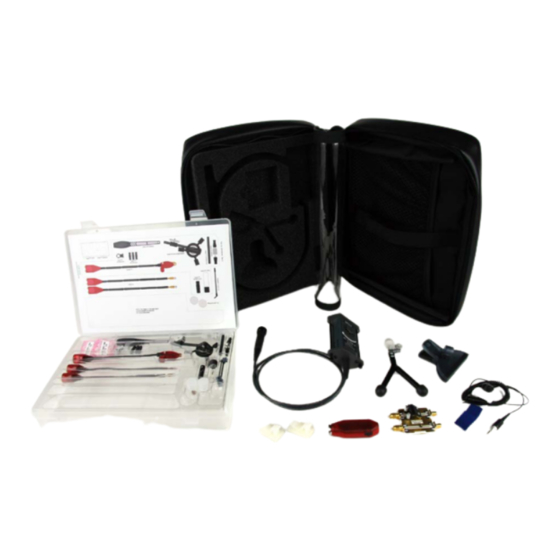

Teledyne Lecroy WaveLink Series Operator's Manual

Differential probe 13-25 ghz
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution
of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business
relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components
to meet their specific needs.
With the principle of "Quality Parts,Customers Priority,Honest Operation,and Considerate Service",our business
mainly focus on the distribution of electronic components. Line cards we deal with include
Microchip,ALPS,ROHM,Xilinx,Pulse,ON,Everlight and Freescale. Main products comprise
IC,Modules,Potentiometer,IC Socket,Relay,Connector.Our parts cover such applications as commercial,industrial,
and automotives areas.
We are looking forward to setting up business relationship with you and hope to provide you with the best service
and solution. Let us make a better world for our industry!
Contact us
Tel: +86-755-8981 8866 Fax: +86-755-8427 6832
Email & Skype: info@chipsmall.com Web: www.chipsmall.com
Address: A1208, Overseas Decoration Building, #122 Zhenhua RD., Futian, Shenzhen, China
  

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WaveLink Series and is the answer not in the manual?

Questions and answers

Related Manuals for Teledyne Lecroy WaveLink Series

Summary of Contents for Teledyne Lecroy WaveLink Series

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
  • Page 2 Operator’s Manual WaveLink Series Differential Probe (13-25 GHz)
  • Page 4 WaveLink Series Differential Probe (13-25 GHz) Operator's Manual November, 2014...
  • Page 5 Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center. However, this will be done only if the product is determined by...

  • Page 6: Table Of Contents

    Handling the Probe ......................16 Connecting the Platform/Cable Assembly, Amplifier Module, and Interconnect Lead ... 16 Connecting the Probe to a Teledyne LeCroy Oscilloscope ..........18 Operation with a Teledyne LeCroy Oscilloscope .............. 19 Connecting the Probe to the Test Circuit ................. 22 Positioning of the Input Leads ..................
  • Page 7 WaveLink Series Differential Probe (13-25 GHz) Returning a Product for Calibration or Service ..............46 Returning a Product to a Different Country ..............48 Consumables and Replacement Parts ................48 Service Options .........................53 Functional Test ......................54 Functional Test Overview ....................54 Test Setup .........................54 Performance Verification ....................

  • Page 8: Introduction

    The WaveLink Series of High Bandwidth Differential Probes also utilize digital filtering to optimize the system frequency response. The design of the WaveLink probe amplifier is such that there is a very wide bandwidth response that exceeds the oscilloscope bandwidth.

  • Page 9: Modular Advantage

    WaveLink Series Differential Probe (13-25 GHz) M odu la r Adva n t a ge These probes use a pioneering modular design first introduced by Teledyne LeCroy's initial WaveLink product releases. The modular design consists of a Platform/Cable Assembly, Differential Amplifier Small Tip Module with Solder-in Leads, or Positioner Tip (Browser).
  • Page 10 Operator's Manual WL-PLINK-A-CASE Standard Accessories Dxx05-A Dxx05-A-PS Dxx05-PT-KIT WL-2.92MM-CASE Amplifier System Amplifier 1 each 1 each Solder-in Lead Set 2 each 2 each Spare Damping Resistors for SI Tip 5 each 5 each Tip Retaining Clip for SI Leads 2 each 2 each Adhesive Tape 1 set...

  • Page 11: Modular Probe Components

    ProLink inputs currently used on ≥4 GHz Teledyne LeCroy WaveMaster 8 Zi/Zi- A models, or to 2.92mm inputs used for 25-36 GHz signals on Teledyne LeCroy WaveMaster 8 Zi-A, LabMaster 9 Zi-A, and LabMaster 10 Zi models.
  • Page 12 Operator's Manual Platform/cable assembly provided with WL-2.92MM-CASE The Platform/Cable Assembly performs the following important functions: • It provides power to the probe amplifier from the oscilloscope. • It communicates to the oscilloscope the identifying characteristics of the amplifier that is connected to the probe so that the oscilloscope channel can be set to the correct probe attenuation value automatically.
  • Page 13 WaveLink Series Differential Probe (13-25 GHz) Platform/Cable Assembly Product Code WaveLink ProLink Platform/Cable Assembly WL-PLINK-A-CASE WaveLink 2.92mm Platform/Cable Assembly WL-2.92MM-CASE...

  • Page 14: Differential Amplifier Small Tip Modules

    Operator's Manual LPA- 2 .9 2 m m t o Pr oLink Pr obe Ada pt e r This adapter provides a simple and effective method to convert a Teledyne LeCroy ProLink interface to a Teledyne LeCroy 2.92mm interface. Teledyne LeCroy's 2.92mm interface utilizes a 2.92mm connector for the signal, and a LEMO connection for probe power and communication.
  • Page 15 WaveLink Series Differential Probe (13-25 GHz) This amplifier architecture provides the following: • Very low probe only noise (≤18 nV/√Hz). Much less than other, comparable bandwidth probes. • Excellent system (probe and oscilloscope) rise times. In fact, the probe, when connected to...
  • Page 16 Operator's Manual Product Amplifier Modules (includes solder-in interconnect leads) Code 13 GHz WaveLink D1305-A 13GHz, 2.0Vp-p, ±2.5V Offset Range, and ±4V Common Mode Range Amplifier Module with Dxx05-SI Solder-in Lead (Qty. 2). Also Includes: Replacement Resistors (Qty. 10), Tip Retaining Clips (Qty.

  • Page 17: Solder-In Interconnect Leads

    (13-25 GHz). This lead can also be used as a replacement for the D1x05- SI and D2005-SI. Teledyne LeCroy's solder-in probe lead uses resistors at the tip that are precisely pre-cut to the correct length. This design provides the following advantages: •...

  • Page 18: Positioner Tip (Browser)

    (using the Wand attachment) or as a fast and convenient method to re-position a fixed test point (using a positioner tool, like Teledyne LeCroy's Freehand Positioner, XYZ Positioner or EZ Probe . The carbon composite resistive pogo pin tips are adjustable from 0 to 3.5 mm (0 to 0.14") and have 0.55 mm (0.022") of Z-Axis compliance.

  • Page 19: Complete Probe System (Ps)

    WaveLink Series Differential Probe (13-25 GHz) Positioner Tip (Browser) Kit Positioner Tip (Browser) Kit (includes tip and accessories) Product Code WaveLink Dxx05-PT (20 GHz rating) Adjustable Positioner Tip Kit. For use with D1305-A, Dxx05-PT-KIT D1605-A, D2005-A, and D2505-A amplifiers. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and replacement Carbon Composite Pogo-Pin Tips (Qty.
  • Page 20 Operator's Manual Complete Probe System (PS) Standard Accessories D1x05-A-PS D2005-A-PS D2505-A-PS WL-PLINK-A-CASE Platform/Cable Assembly Kit 1 each 1 each WL-2.92MM-CASE Platform/Cable Assembly Kit 1 each LPA-2.92 to ProLink Adapter 1 each D1x05-A Amplifier System 1 each D2x05-A Amplifier System 1 each 1 each Dxx05-PT-KIT Positioner Tip (Browser) Kit 1 each...

  • Page 21: Probe Operation

    During factory calibration and performance verification, each probe amplifier has a response file created and stored on-board. When the probe is connected to your Teledyne LeCroy oscilloscope, the response file is read by your oscilloscope and a combined optimized probe + oscilloscope response is created for your particular oscilloscope and channel to which the probe is connected.

  • Page 22: Embedding Probes

    However,if you wish to de-embed the effect of probe loading on your circuit, you can also use Teledyne LeCroy’s Virtual Probe option. This option allows you to select the probe tip from a list of supported tips. Your selection applies a corresponding s-parameter file that is derived from the...

  • Page 23: Handling The Probe

    WaveLink Series Differential Probe (13-25 GHz) H a ndling t he Probe The WaveLink series probe is a precision test instrument. Exercise care when handling and storing the probe. Always handle the probe by the platform/cable assembly. Avoid putting excessive strain on any cable or interconnect lead or exposing the probe cables to sharp bends.
  • Page 24 Operator's Manual Do not use pliers or any other tools to tighten the collar. Remove the Amplifier Module by loosening the threaded collar from the module and pulling the two assemblies apart. By design, the amplifier module works with the WL-PLINK-A or WL-2.92MM platform/cable assembly and either the Dxx05-SI Lead or Dxx05-PT Tip .

  • Page 25: Connecting The Probe To A Teledyne Lecroy Oscilloscope

    LPA- 2 .9 2 m m t o Pr oLin k Ada pt e r Some Teledyne LeCroy oscilloscopes utilize both ProLink and 2.92 mm inputs. In this case, a single WL-2.92MM Platform/Cable Assembly can be used for all types of high bandwidth inputs. Use the LPA-2.92mm to ProLink Adapter to connect the WL-2.92MM to a ProLink communication, power...

  • Page 26: Operation With A Teledyne Lecroy Oscilloscope

    Operator's Manual Ope r a t ion w it h a Te le dyne Le Cr oy Oscilloscope NOTE: • Download the latest version of X-Stream software to run your WaveLink probe with maximum performance. • Ensure your Windows updates are current. •...
