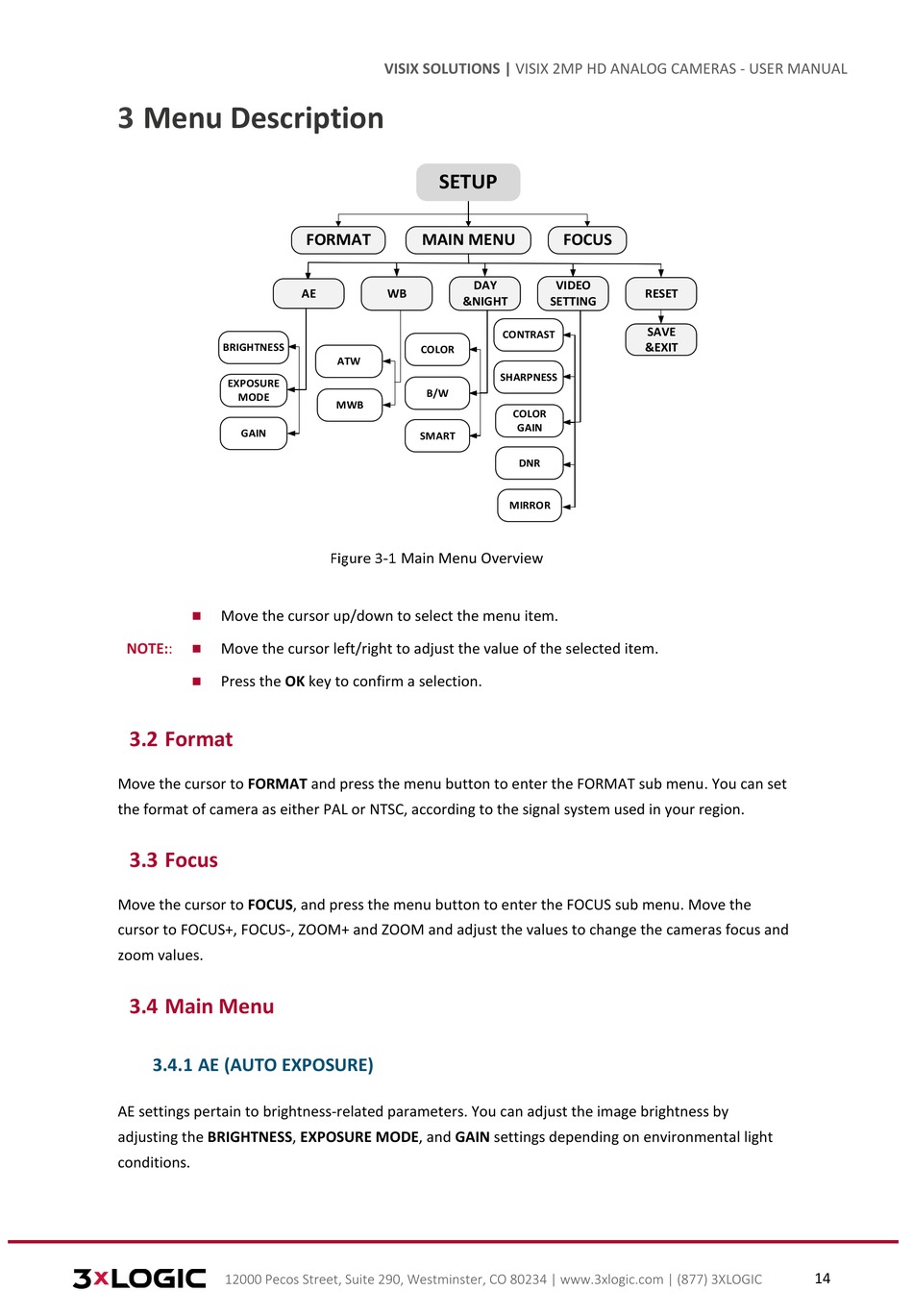

Menu Description

BRIGHTNESS
EXPOSURE
MODE
GAIN
 Move the cursor up/down to select the menu item.
NOTE::  Move the cursor left/right to adjust the value of the selected item.
Press the OK key to confirm a selection.


3.2 Format

Move the cursor to FORMAT and press the menu button to enter the FORMAT sub menu. You can set
the format of camera as either PAL or NTSC, according to the signal system used in your region.

3.3 Focus

Move the cursor to FOCUS, and press the menu button to enter the FOCUS sub menu. Move the
cursor to FOCUS+, FOCUS-, ZOOM+ and ZOOM and adjust the values to change the cameras focus and
zoom values.

3.4 Main Menu

3.4.1 AE (AUTO EXPOSURE)

AE settings pertain to brightness-related parameters. You can adjust the image brightness by
adjusting the BRIGHTNESS, EXPOSURE MODE, and GAIN settings depending on environmental light
conditions.
