2.2 Installation of VX-2MD-OD-RIWH Dome Camera
Steps:
Attach the drill template (supplied) to the installation location then drill the screw holes and the
1.
cable hole in the ceiling/wall per the drill template.
Loosen the screws to remove the clip plate and take out the main body.
2.
Fix the mounting base to the ceiling/wall with screws.
3.
Route the cables through the cable hole and connect the corresponding cables.
4.
Install the main body to the mounting plate and insert the clip plate.
5.
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
VISIX SOLUTIONS | VISIX 2MP HD ANALOG CAMERAS - USER MANUAL

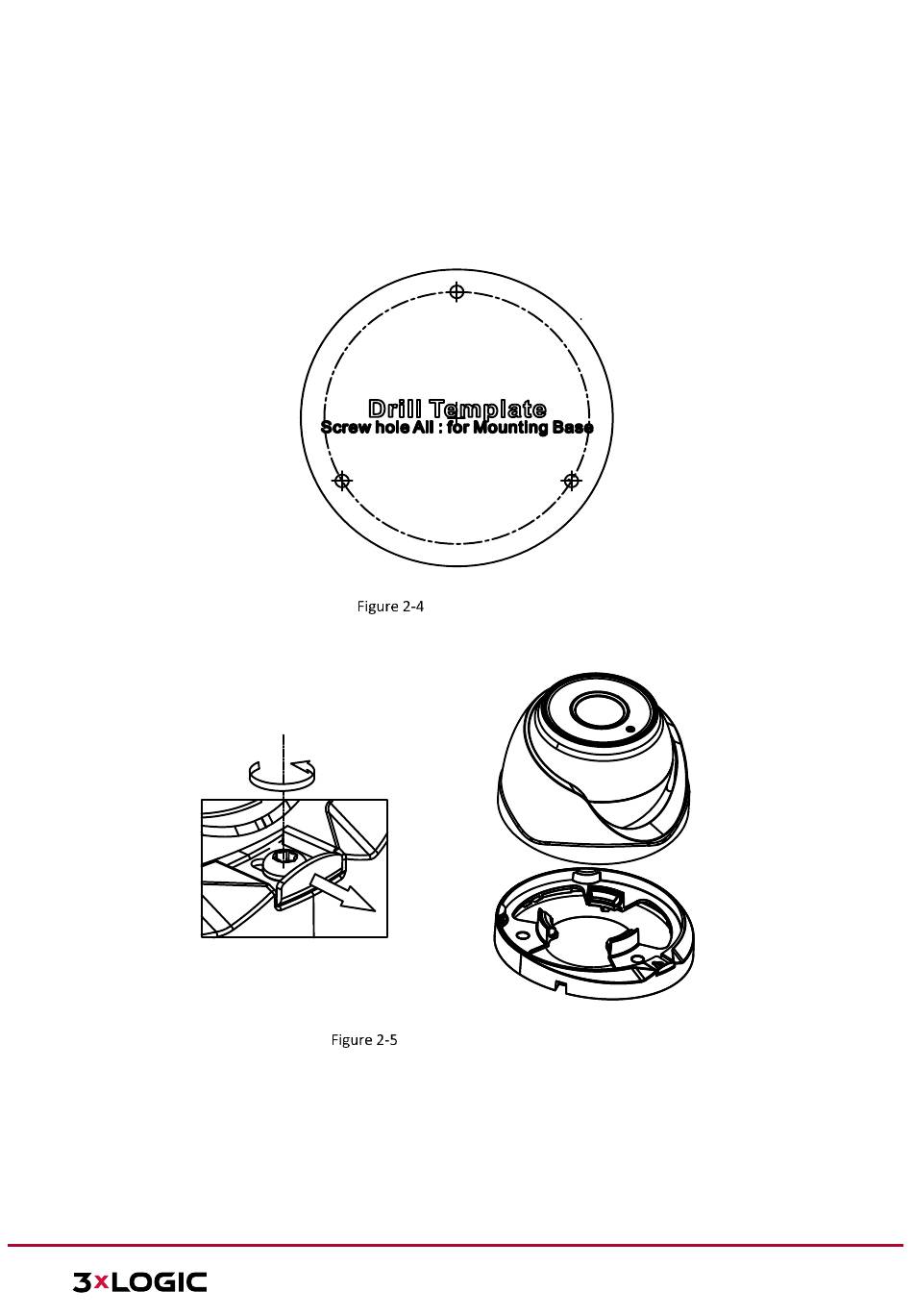

Drill Template
Remove the Clip Plate
