Routine Maintenance & Safety Checks ...................... 2
Exploded Parts Drawing & BOM .................................. 2
W
Ensure that all employees understand and follow the following.
Read and understand all sections of the owner's manual before using
or servicing the hoisting hook.
Ensure that all safety and warning labels stay in place and are
legible.
Do not use the hoisting hook if any damage is observed.
Always watch the load and the load hook carefully when the hoisting
hook is in operation.
The lifting rigging must be fully retained within the hook's safety
latch before lifting any load off the ground.
Make certain that the load is properly slung and balanced under the
hook before lifting with the hoisting hook.
Do not perform modifications to any part of the hoisting hook.
Doing so could cause and failure, and will void the warranty.
Maintenance and repairs are to be done only by personnel qualified
to perform the required work.
Do not use the hoisting hook to pull loads horizontally.
Always secure the hoisting hook to the fork truck mast with the
safety securing strap before connecting a load.
_____________________________________________________________
V
M
. C
./T&S E
ESTIL
FG
O
WM-Vestil S-Fork Hoisting Hook
C
.
ORP
M
S-FORK H
ODEL
Serial number ____________
S
I
ARNINGS AND
AFETY
NSTRUCTIONS
. C
.
QPT
O
O
WNER
M
H
OISTING
Operation Instructions ........................................... 3
Warranty .......................................................... 4
Printed on 9/20/13
WM-Vestil S-Fork Hoisting Hook
08-126-120
'
S
ANUAL
OOK
:
REPLACEMENT PARTS
We take pride in using quality
parts on the equipment we
manufacture. We are not
responsible for equipment
problems resulting from the use
of unapproved replacement
parts.
To order replacement or
spare parts for this equipment,
contact the factory.
In any communication with
the factory please be prepared
to provide the machine's serial
number, which is indicated on
the machine dataplate.
R
ECEIVING INSTRUCTIONS
Every unit is thoroughly
tested and inspected prior to
shipment. However, it is
possible that the unit could
incur damage during transit.
Inspect the unit closely when
it arrives. If you see evidence
of damage or rough handling to
either the packaging or to the
product when it is being
unloaded, immediately make a
note of it on the Bill Of Lading!
It is important that you
remove the product's packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.
Also verify that the product
and its specifications are as
ordered.
Rev.0
1 of 4
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Vestil S-FORK-4/6-RL
Summary of Contents for Vestil S-FORK-4/6-RL

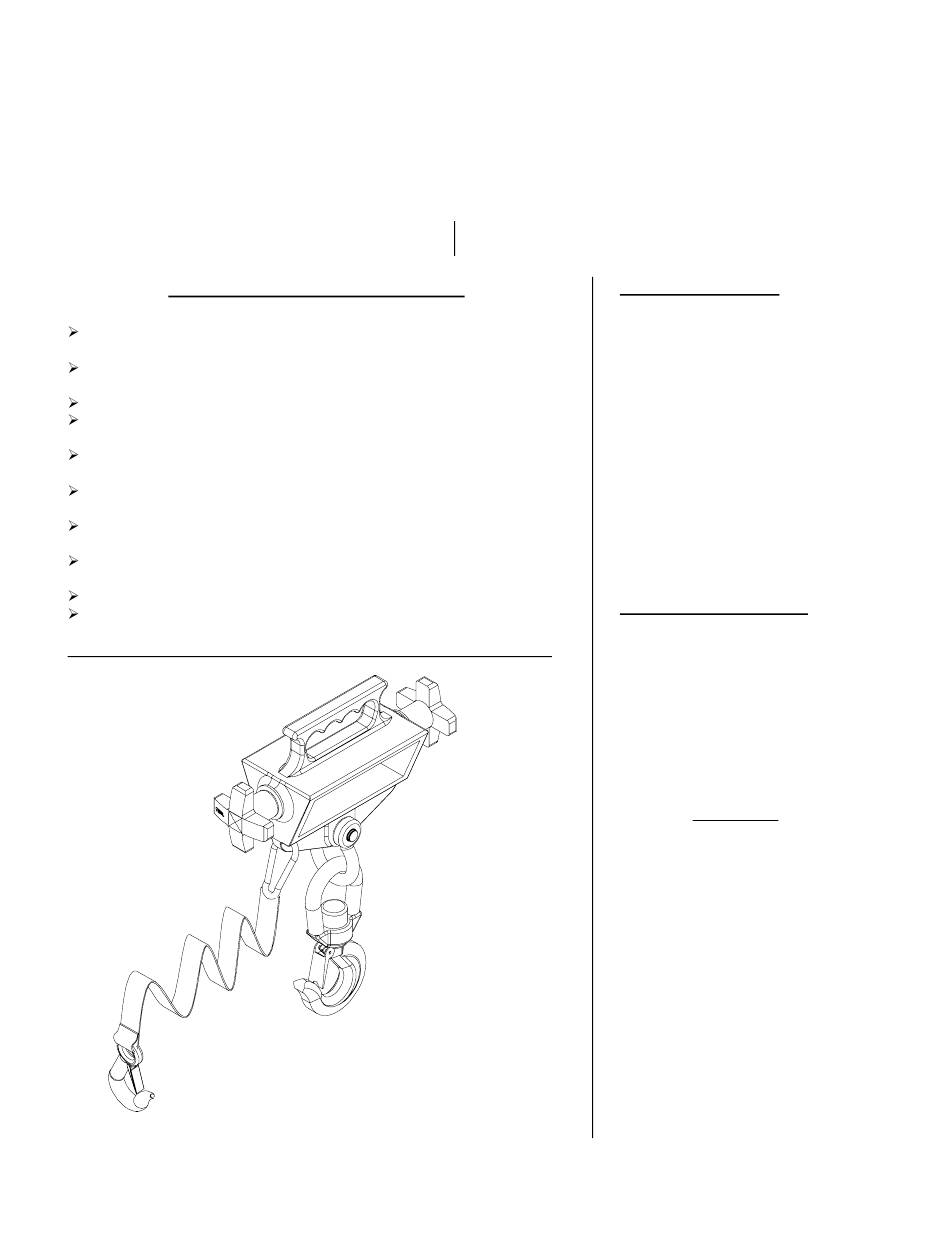

- Page 1 WM-Vestil S-Fork Hoisting Hook Rev.0 09/05 08-126-120 ’ WNER ESTIL ANUFACTURING 2999 N. Wayne St., Angola, IN 46703 ANUAL Ph: 260-665-7586 · Fax: 260-665-1339 E-mail: sales@vestil.com · www.vestil.com S-FORK H ODEL OISTING Serial number ____________ Routine Maintenance & Safety Checks ………………..2 Operation Instructions ……………………….……..
- Page 2 WM-Vestil S-Fork Hoisting Hook Rev.0 09/05 08-126-120 & S – S-FORK OUTINE AINTENANCE AFETY HECKS -S ( -R ( ODELS SWIVEL HOOK RIGID HOOK (A) Before each use inspect for the following: 1.) Visible damage to the casting, the lifting hook, or the clevis.
- Page 3 WM-Vestil S-Fork Hoisting Hook Rev.0 09/05 08-126-120 – S-FORK PERATION NSTRUCTIONS Ensure that all employees involved in the operation and maintenance of this hoisting hook understand and follow these instructions! The S-FORK fork-mounted hoisting hook is intended to be used to lift and transport stable, hanging loads, weighing up to 3,000 pounds, from a properly-rated fork truck’s fork.
- Page 4 WM-Vestil S-Fork Hoisting Hook Rev.0 09/05 08-126-120 RODUCT ARRANTY 90-DAY LIMITED WARRANTY The manufacturer warrants for the original purchaser against defects in materials and workmanship under normal use one 90 days after the date of shipment. Any part that is determined by the manufacturer to be defective in material or workmanship and returned to the factory, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at our option.
