Vestil EHLT Series Instruction Manual

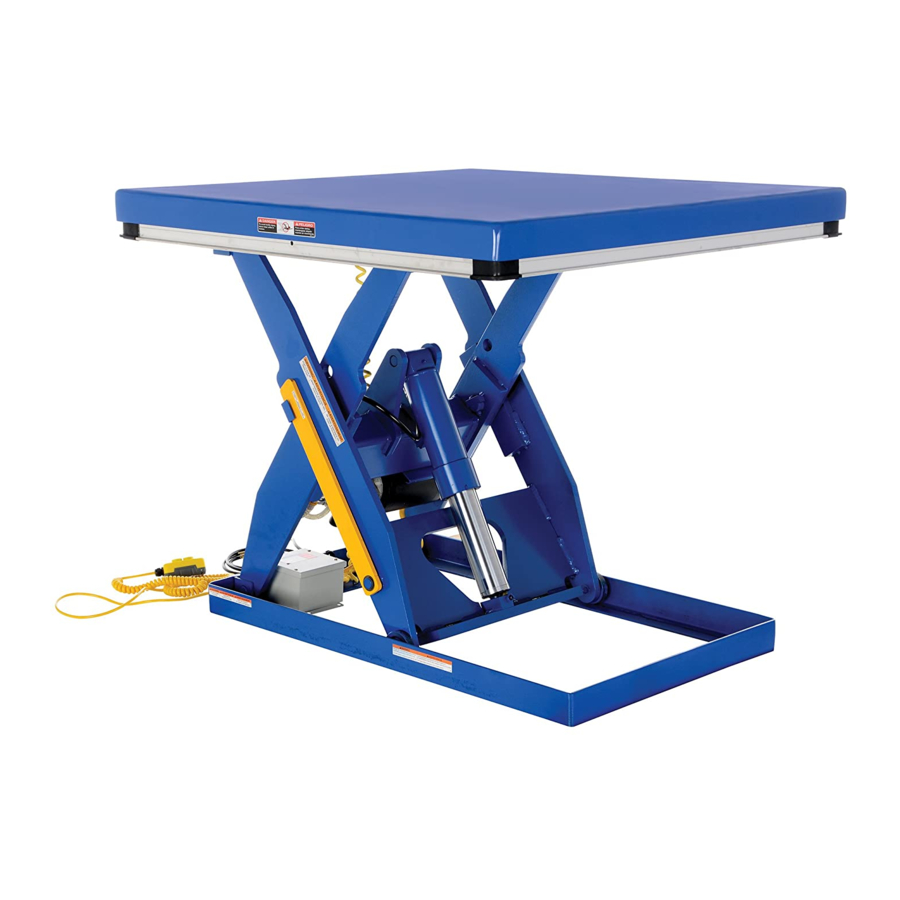

Electric hydraulic scissors lift table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

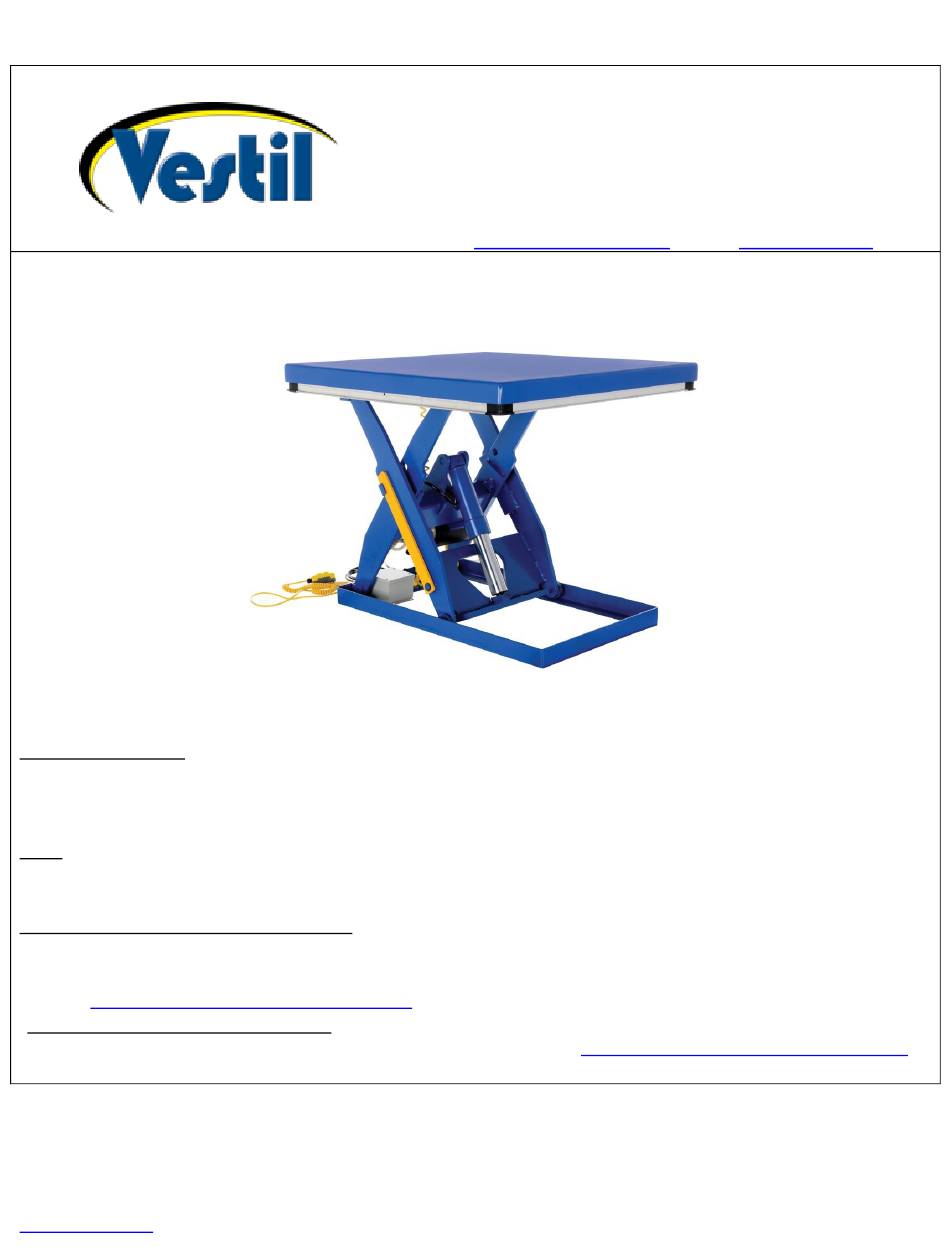

Operator's Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product to determine whether it sustained
damage during transport. If damage is discovered, record a complete description of it on the bill of lading and file a claim
with the carrier immediately! If the product is undamaged, discard the packaging.
NOTE:
The end user is solely responsible for confirming that product design, use, and maintenance comply with laws,
regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Assistance:
If you have questions that are not addressed in these instructions, or to order replacement parts, labels, and
accessories, call (260) 665-7586 and ask for the Service and Parts Department. You can also reach Service and Parts
online at http://www.vestilmfg.com/parts_info.htm.
Electronic Copies of Instruction Manuals:
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php.
Table of Contents
EHLT-Series Electric Hydraulic Scissors Lift Table
Instruction Manual
Copyright 2020, Vestil Manufacturing Corp.
2/2/21
Vestil Manufacturing Corp.
A company dedicated to solving loading dock and material handling
problems since 1955.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free: (800) 348-0868
Fax: (260) 665-1339
http://www.vestil.com/
Model EHLT
EHLT, MANUAL.DOCX
email:
info@vestil.com
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHLT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vestil EHLT Series

Summary of Contents for Vestil EHLT Series

  • Page 1 (260) 665-7586 and ask for the Service and Parts Department. You can also reach Service and Parts online at http://www.vestilmfg.com/parts_info.htm. Electronic Copies of Instruction Manuals: Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php. Table of Contents Copyright 2020, Vestil Manufacturing Corp.

  • Page 2: Signal Words

    HAZARDS Vestil Manufacturing strives to identify all foreseeable hazards associated with the use of its products. However, material handling is dangerous and no manual can address every risk. The end user is ultimately responsible for exercising sound judgment at all times in the use of this product.
  • Page 3 Periodically lubricate pivot points with bearing grease.  Keep the product dry and clean at all times. Always use this product indoors.  Use only factory-approved replacement parts. Contact Vestil Manufacturing to order replacement or spare parts.  Contact the manufacturer for SDS information.
  • Page 4 EXPLODED PART VIEWS AND BILLS OF MATERIAL EHLT Top-Level Bill of Materials ITEM DESCRIPTION BASE ASSEMBLY PLATFORM PERIMETER TOE GUARD ASSEMBLY * See separate illustrations and tables for detailed parts lists Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 4 of 24...
  • Page 5 Operator’s Manual 2/2/21 EHLT, MANUAL.DOCX Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 5 of 24...
  • Page 6 SPRING PIN 3/16 X 1 1/8 (USE WITH Ø 2 1/2” x 10” CYLINDERS ONLY) 32415 Ø5/16 - 18 x 1/2 HWH THREAD CUTTING SCREW, TYPE F, ZINC 1 or 2 01-115-002 WASHER, THRUST BEARING 01-115-001 WASHER, THRUST BEARING, 1 1/8” ID Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 6 of 24...
  • Page 7 1 or 2 Ø5/16-18 x 1/2 BOLT S/S 11051 (NOT PRESENT ON DOUBLE Ø2 1/2" x 10" CYLINDER MODELS) 01-115-002 WASHER, THRUST BEARING 99-113-015 SHIM, S/S, Ø1 1/8 Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 7 of 24...
  • Page 8 HEX BOLT, GRADE A, ZINC PLATED, 1/4"-20 X 3" 33004 FLAT WASHER, USS, ZINC PLATED, Ø1/4" 24189 #8-32 FHSCS 01-015-017 TOE GUARD, LIMIT SWITCH ACTUATOR * Item attaches separately to platform. † Item attaches to base. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 8 of 24...
  • Page 9 115 VAC, Single-Phase Electric Circuit Diagram (24124012 Rev. B) Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * Number of toe guard switches can vary according to size. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 9 of 24...
  • Page 10 208-230 VAC, Single-Phase Electric Circuit Diagram (24124013 Rev. B) Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * Number of toe guard switches can vary according to size. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 10 of 24...
  • Page 11 Three-Phase Electric Circuit Diagram (24124014 Rev. B) Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * Number of toe guard switches can vary according to size. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 11 of 24...

  • Page 12: Motor Lead Connections

    Polarity across the thermostat leads may be reversed. When changing the motor voltage configuration, you must also change the configuration of the control transformer to match the motor voltage. Control Voltage Transformer (01129001 Rev. G). Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 12 of 24...
  • Page 13 O-RING, MANIFOLD, 3/4" 99-144-009 VALVE, PRESSURE RELIEF, 99-153-006 210 BAR CHECK VALVE, SIZE 08, 99-153-011 NOSE-IN/SIDE-OUT VALVE SOLENOID, 99-153-015 STANDARD, w/o COIL FLOW CONTROL, PRES. 99-153-040 COMP., 2.0 GAL. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 13 of 24...

  • Page 14: Hydraulic Schematic

    A fork truck or hoist capable of unloading the left table and setting it in place.  A smooth, level concrete surface on which to mount the lift table. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 14 of 24...
  • Page 15 24” 48” 16-3/8” 15-3/4” 46-3/4” 24-3/8” 48-3/8” 3/16” EHLT-4848-#-##-PSS 30” 48” 22-7/16” 21-3.4” 46-3/4” 48-3/8” 48-3/8” 3/16” * For other models, consult your sales rep or the factory. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 15 of 24...

  • Page 16: Installation

    150 SUS at 100°F (ISO 32 at 40°C) or a non-synthetic automatic transmission fluid. 9. Clean up any debris or spilled oil. Verify that all of the information, safety, and warning labels are in good condition. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 16 of 24...
  • Page 17 For off-center loads, the lift table’s maximum capacity is 75% of the rated capacity for end loading (either end), and 50% for side loading (either side) (see diagram). Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 17 of 24...

  • Page 18: Operation

    Guards cannot protect against every possible condition, and should not be considered a substitute for good judgment and care in use, loading, handling, storage, etc. of the lift table. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 18 of 24...

  • Page 19: Inspection And Maintenance

    Unusual noise or evidence of binding. 2. Test the function of the upper travel limit switch and the perimeter toe guard. Monthly inspection. Have a qualified person inspect for: Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 19 of 24...
  • Page 20 8. Blow the valve off with a compressed-air gun while again pushing the spool in and out. 9. Inspect the bottom of the manifold’s valve cavity for contaminants. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 20 of 24...
  • Page 21 4. Oil and air will sputter from the valve. Once no more air comes out, close the valve. 5. For multi-cylinder lift tables, it will be necessary to open the bleeder valves on all cylinders simultaneously in order to bleed the valves. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 21 of 24...

  • Page 22: Troubleshooting Guide

    Flow control valve spool sticking. “Inspection and Maintenance” section. Remove and inspect valves. Clean per instructions in Platform lowers too quickly. Flow control valve spool sticking. “Inspection and Maintenance” section. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 22 of 24...

  • Page 23: Labeling Diagram

    To order replacement labels, contact the technical service and parts department online at http://www.vestilmfg.com/parts_info.htm. Alternatively, you may request replacement parts and/or service by calling (260) 665-7586 and asking the operator to connect you to the Parts Department. Table of Contents Copyright 2020, Vestil Manufacturing Corp. Page 23 of 24...

  • Page 24: Limited Warranty

    After Vestil receives your request for warranty service, an authorized representative will contact you to determine whether your claim is covered by the warranty. Before providing warranty service, Vestil will require you to send the entire product, or just the defective part (or parts), to its facility in Angola, IN.
