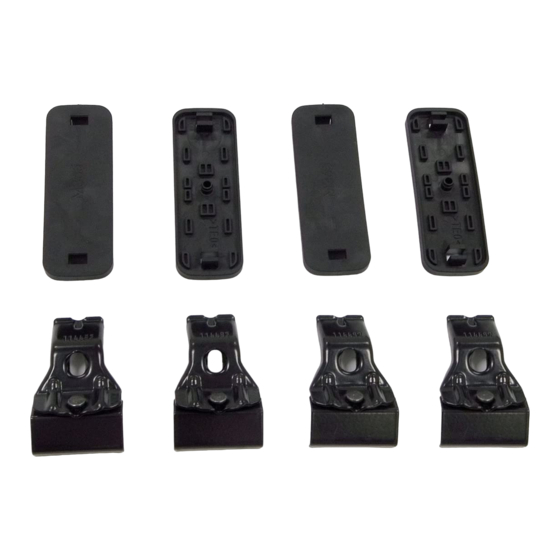

DK001 Rhino-Rack VA, Aero, Euro & HD crossbar instruction
Vehicle
Date
Crossbar
Ford Focus 5dr
05-11
1260mm
Hatch LS/LV
Mitsubishi 380
05-08
1260mm
4dr Sedan DB
Mitsubishi
Galant 4dr
04-07
1260mm
Sedan
Document No. RS174
IDENTIFICATION CHART
FRONT CROSSBAR
VA
Front
Front
Measurement
Right
Left
strip length
Pad/
Pad/
per side
Clamp
Clamp
M367
M367
114500
114500
181mm
Arrow
FORWARD
M367
M367
114500
114500
191mm
Arrow
FORWARD
M367
M367
114500
114500
191mm
Arrow
FORWARD
Identification
VA crossbar
AERO crossbar
AERO
HD
EURO
Measurement
Measurement
Foot plate
strip length
Distance
arrow
per side
( x )
direction
68mm
1010mm
OUT
78mm
1030mm
OUT
78mm
1030mm
OUT
Issue Date: 20 December 2013
EURO crossbar
REAR CROSSBAR
VA
Rear
Rear
Measurement
Measurement
Right
Left
strip length
strip length
Pad/
Pad/
per side
per side
Clamp
Clamp
M365
M365
114490
114490
181mm
68mm
Arrow
FORWARD
M365
M365
114490
114490
168mm
55mm
Arrow
FORWARD
M365
M365
114490
114490
168mm
55mm
Arrow
FORWARD
HD crossbar
AERO
HD
EURO
Measurement
Foot plate
Distance
arrow
( x )
direction
1010mm
OUT
984mm
OUT
984mm
OUT
Page 1 of 2
Advertisement
Related Manuals for Rhino-Rack DK001
Summary of Contents for Rhino-Rack DK001
- Page 1 DK001 Rhino-Rack VA, Aero, Euro & HD crossbar instruction Identification IDENTIFICATION CHART VA crossbar AERO crossbar EURO crossbar HD crossbar FRONT CROSSBAR REAR CROSSBAR AERO AERO EURO EURO Front Front Rear Rear Measurement Measurement Measurement Foot plate Measurement Measurement Measurement...
- Page 2 Carrying capacity: Roof rack is rated to 75kg. Please refer to manufacturers handbook for your vehicles maximum roof load capacity. Always use the lower of the two figures. If your vehicle is not listed on this fitting instruction please refer to your countries Rhino-Rack web site for the latest information.
