Rhino-Rack

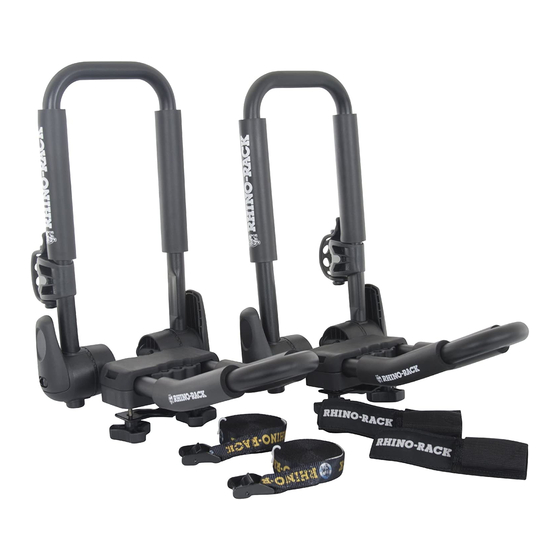

Folding Kayak Carrier
S512
Important:
Please read these instructions carefully prior to installation.
Layout
Important Information
Maximum carrying capacity: 25kg (55lbs)
Warning:
Use only non-stretch fastening ropes or
straps.
Recommendations:
Roof racks must be removed when putting vehicle through an automatic car wash.
Caution:
Advertisement
Related Manuals for Rhino-Rack S512
Summary of Contents for Rhino-Rack S512

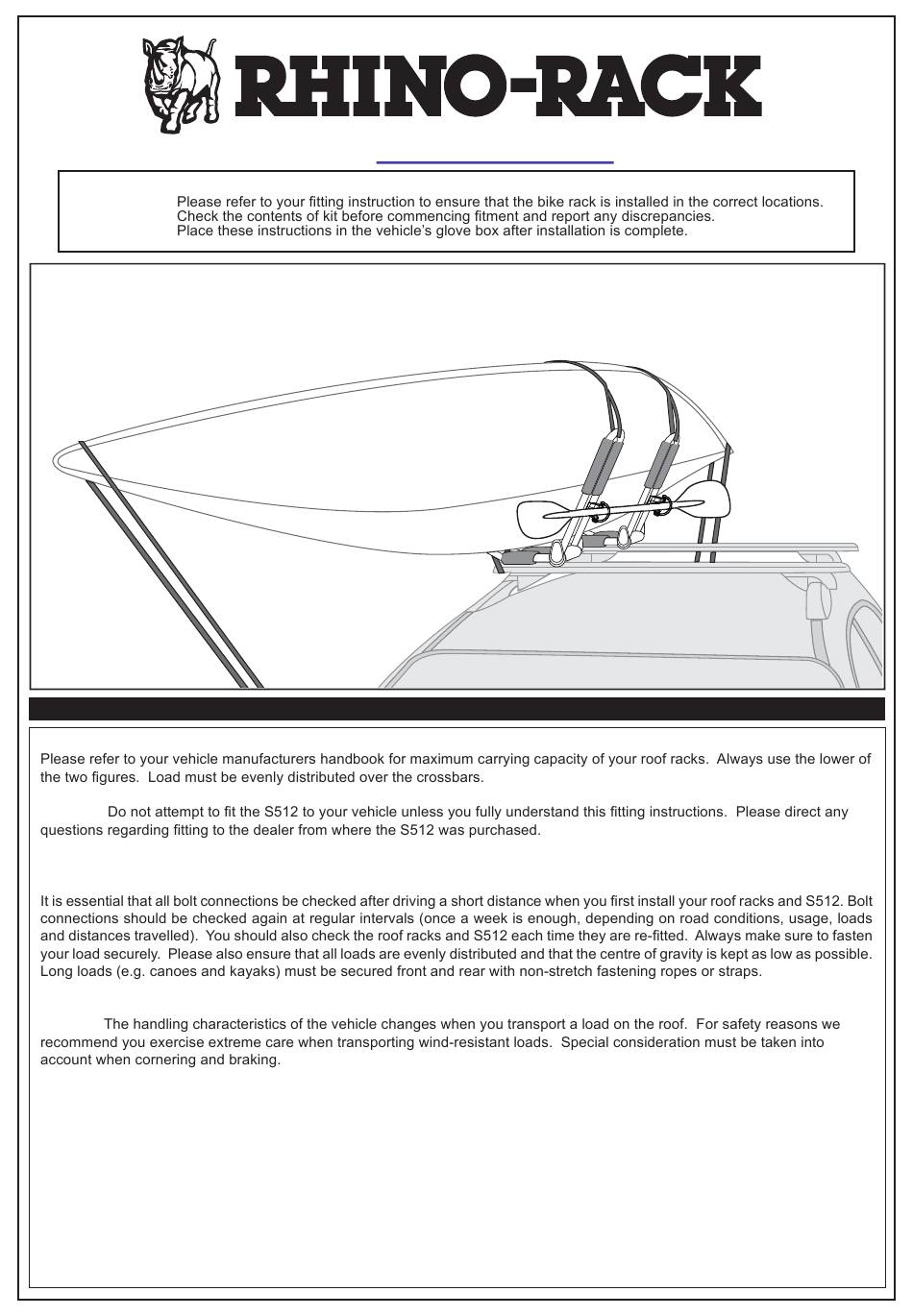

- Page 1 Rhino-Rack Folding Kayak Carrier S512 Important: Please read these instructions carefully prior to installation. Layout Important Information Maximum carrying capacity: 25kg (55lbs) Warning: Use only non-stretch fastening ropes or straps. Recommendations: Roof racks must be removed when putting vehicle through an automatic car wash.
- Page 2 Rhino-Rack Folding Kayak Carrier S512 km/h ? kg 2 x Crossbars = 5.0kg used on a vehicle that is driven off 60kg load rating 30kg load rating halved WARNING! Important Load Carrying Instructions...
- Page 3 Rhino-Rack Folding Kayak Carrier S512 Parts List Item Component Name 102mm 36mm 100mm min. 55mm roof clearance C-channel fitment kit sold seperately Refer to KC - FK8 for Rhino Aero and HD bar C-channel fitment guide KC - FK9 for Rola Aero and Rola...
- Page 4 Rhino-Rack Folding Kayak Carrier S512 Fold out the cradle Load the paddle Tighten the cradle if necessary...
- Page 5 Rhino-Rack Folding Kayak Carrier S512 Pull tight Outside of vehicle Loop the strap under the crossbar How to install and use the optional S512X extension piece (NOTE: S512X sold separately) Do not overtighten Aero bar shown for fitting instruction purposes...
- Page 6 Rhino-Rack Folding Kayak Carrier S512 Fold in the cradle S512X S512X Outside of vehicle Keep the straps loose at this point S512X S512X Outside of vehicle...
- Page 7 Rhino-Rack Folding Kayak Carrier S512 Rotate arm up and lock it in position as shown Load 2nd canoe / kayak Repeat steps 7 to 9 Pull tight Outside of vehicle...
- Page 8 Rhino-Rack Folding Kayak Carrier S512 How to install and use the optional C- channel installation kit (NOTE: Sold Separately) Pliers can be used to assist in inserting the rubber cover. Replace long bolts with supplied 40mm bolt 40mm bolt The 40mm bolts will not protrude out of the bottom.
- Page 9 Rhino-Rack Folding Kayak Carrier S512 RHINO Heavy Duty (PART NO: KC-FK8) M6 x Spring Washer Flat Washer N T M ST located correctly. EUROPEAN Bars (PART NO: KC-FK10) Rola Rack & old ROLA Commercial Bar M6 Tube Nut (PART NO: KC-FK9) Spring Washer M6 x 12.5 Flat Washer...
