VEHICLE
Toyota Camry 50R 4dr sedan
Toyota Aurion 50R 4dr sedan
VEHICLE
Toyota Camry 50R 4dr sedan
Toyota Aurion 50R 4dr sedan
Rhino Rack 2500 Series - DK321
Date
Crossbar

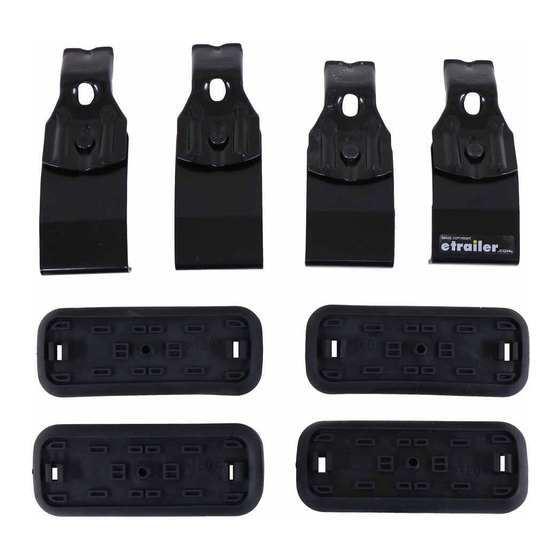

Pad / Clamp
FRONT RIGHT
2012-
1180mm
M282 / SUB0372
2012-
1180mm
M282 / SUB0372
Date
Crossbar
Pad / Clamp
REAR RIGHT
2012-
1180mm
M527 / SUB0373
2012-
1180mm
M527 / SUB0373
FRONT
Pad / Clamp
FRONT LEFT
M281 / SUB0372
M281 / SUB0372
REAR
Pad / Clamp
REAR LEFT
M528 / SUB0373
M528 / SUB0373
Foot plate
Bar measurement
arrow direction strip. Length per side.
OUT
118mm
OUT
118mm
Foot plate
Bar measurement
arrow direction strip. Length per side.
OUT
100mm
OUT
100mm
HD Crossbar
distance ( x ).
914mm / 35,63/64"
914mm / 35,63/64"
HD Crossbar
distance ( x ).
878mm / 34,9/16"
878mm / 34,9/16"
Advertisement
Related Manuals for Rhino-Rack DK321
Summary of Contents for Rhino-Rack DK321
- Page 1 Rhino Rack 2500 Series - DK321 FRONT VEHICLE Date Crossbar Pad / Clamp Pad / Clamp Foot plate Bar measurement HD Crossbar FRONT RIGHT FRONT LEFT arrow direction strip. Length per side. distance ( x ). Toyota Camry 50R 4dr sedan...
- Page 2 Rhino Rack 2500 Series - DK321 Measurement A: CENTRE of door jamb to CENTRE arrow of leg foot plate. Measurement B: CENTRE of Front leg foot plate arrow to CENTRE of Rear leg foot plate arrow. Carrying capacity: Roof rack is rated to 75kg. Please refer to manufacturers handbook for your vehicles maximum roof load capacity. Always use the lower of the two figures.
