Litex RS54BNK6LR Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

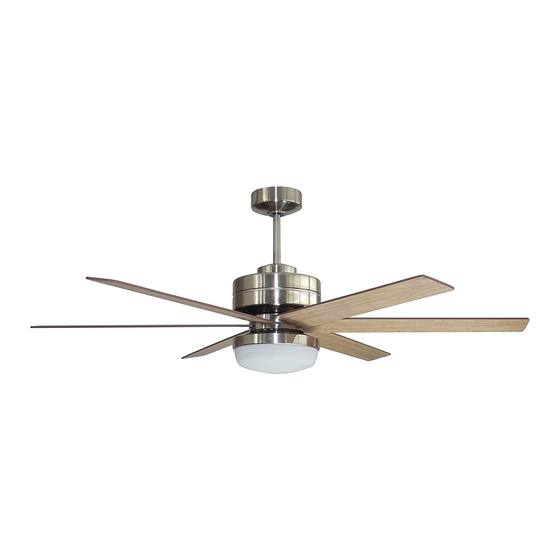

Installation Guide

For Models:

RS54BNK6LR

RS54EB6LR

4007498

net weight of fan: 21 lb (9.53 kg)

READ THESE INSTRUCTIONS AND

AND SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the RS54BNK6LR and is the answer not in the manual?

Questions and answers

Summary of Contents for Litex RS54BNK6LR

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND AND SAVE THEM FOR FUTURE USE Installation Guide For Models: RS54BNK6LR Table of Contents: RS54EB6LR Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure 7 feet inches that the hanging location allows the blades a (2.13 m) (76 cm) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of your fan, set screw hole set screw you must remove the hanging ball from the downrod provided to use with an extended stop pin downrod (sold separately). [If you wish to use the downrod provided, please proceed to instructions following the dotted line below.] hanging ball...
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on hanging bracket tab the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. Raise canopy to hanging bracket, aligning hanging bracket slotted holes in canopy with loosened screws in hanging bracket. Twist canopy to lock. Insert screws (along with star washers) previously removed (on page 3, Section 4) and secure all screws with a Phillips canopy screwdriver.
Page 8: Light Kit Assembly
motor housing 9. Light Kit Assembly. Remove glass shade from light kit fitter. fitter plate Remove 1 screw from post located on underside of fitter plate and partially loosen the other 2 screws. molex connections Connect WHITE wire from motor housing to WHITE wire from light kit fitter.
Page 9: Remote Control Operation
11. Remote Control Operation. 3 button for fan HIGH speed 2 button for fan MEDIUM speed 1 button for fan LOW speed 0 button to turn fan OFF button to turn light ON or OFF button quickly to turn lights off or on. Hold button down to increase or decrease lights.
Page 10: Troubleshooting
2. Verify that reverse switch is set completely in either Service at 1-800-527-1292 to arrange for return of fan. direction. Return fan, shipping prepaid, to Litex Industries, Ltd. We will 3. Verify that receiver is wired properly. 4. Check to be sure fan is wired properly.
