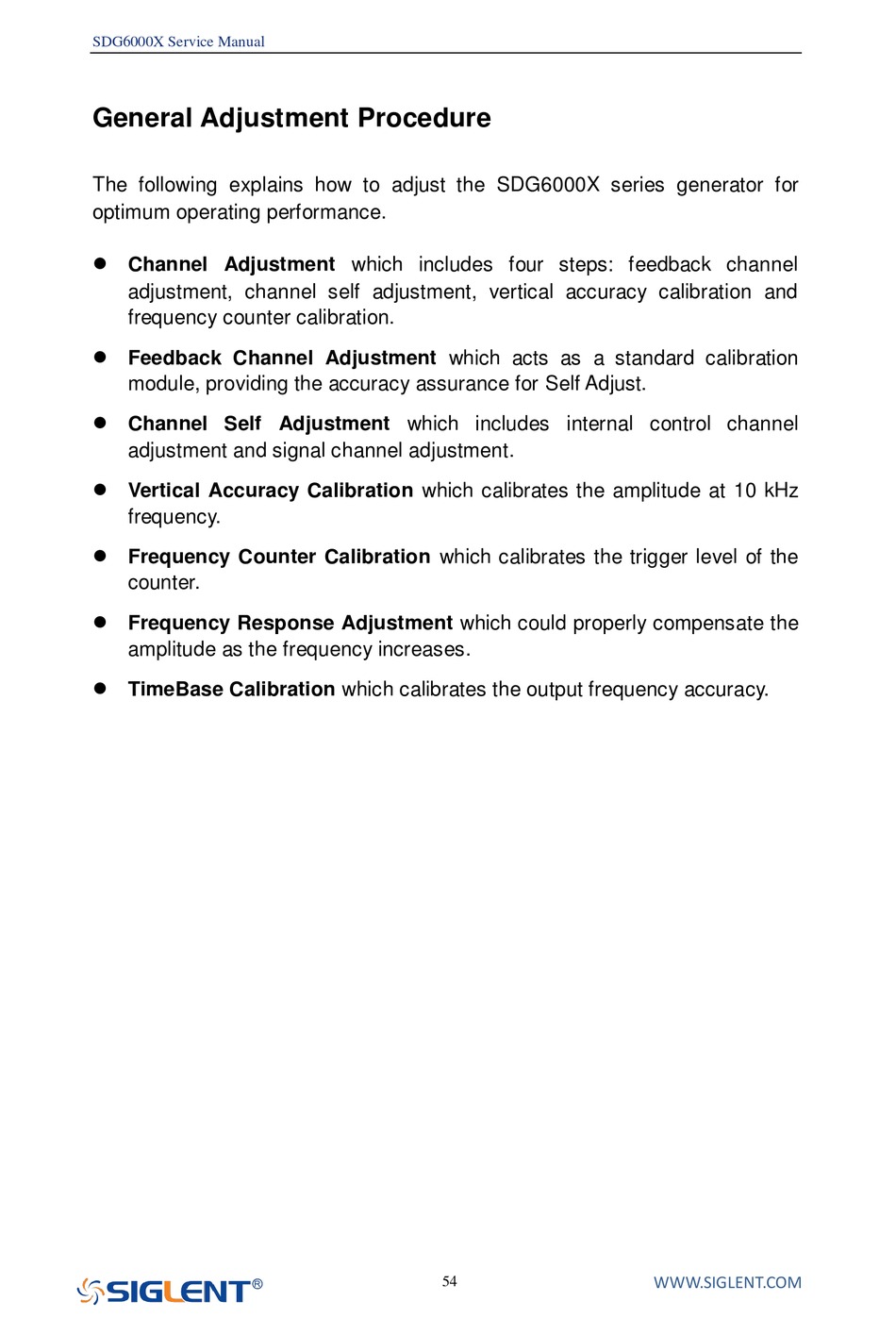

General Adjustment Procedure

The following explains how to adjust the SDG6000X series generator for
optimum operating performance.
 Channel Adjustment which includes four steps: feedback channel
adjustment, channel self adjustment, vertical accuracy calibration and
frequency counter calibration.
 Feedback Channel Adjustment which acts as a standard calibration
module, providing the accuracy assurance for Self Adjust.
 Channel Self Adjustment which includes internal control channel
adjustment and signal channel adjustment.
 Vertical Accuracy Calibration which calibrates the amplitude at 10 kHz
frequency.
 Frequency Counter Calibration which calibrates the trigger level of the
counter.
 Frequency Response Adjustment which could properly compensate the
amplitude as the frequency increases.
 TimeBase Calibration which calibrates the output frequency accuracy.
