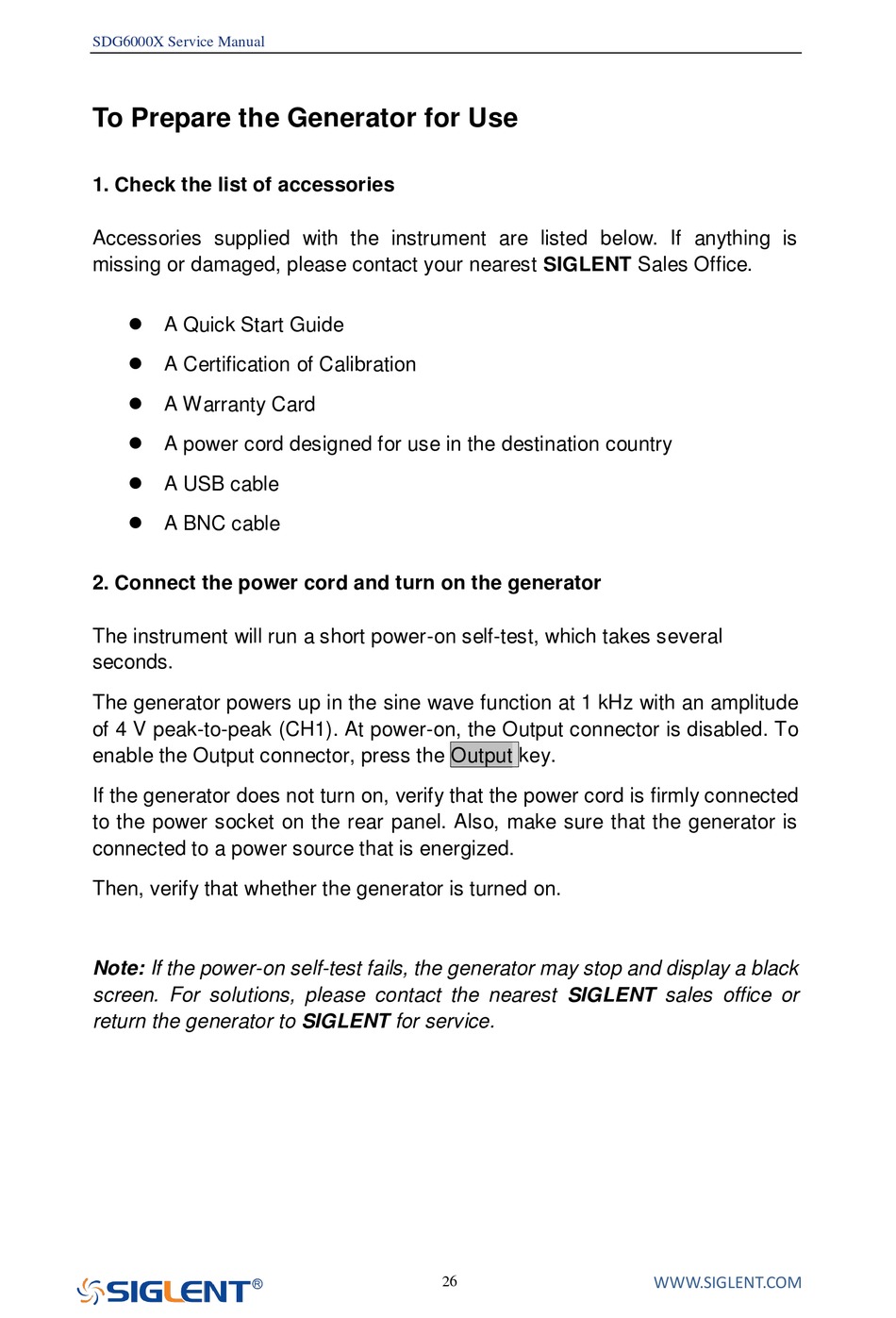

To Prepare the Generator for Use

1. Check the list of accessories
Accessories supplied with the instrument are listed below. If anything is
missing or damaged, please contact your nearest SIGLENT Sales Office.
 A Quick Start Guide
 A Certification of Calibration
 A Warranty Card
 A power cord designed for use in the destination country
 A USB cable
 A BNC cable
2. Connect the power cord and turn on the generator
The instrument will run a short power-on self-test, which takes several
seconds.
The generator powers up in the sine wave function at 1 kHz with an amplitude
of 4 V peak-to-peak (CH1). At power-on, the Output connector is disabled. To
enable the Output connector, press the Output key.
If the generator does not turn on, verify that the power cord is firmly connected
to the power socket on the rear panel. Also, make sure that the generator is
connected to a power source that is energized.
Then, verify that whether the generator is turned on.
Note: If the power-on self-test fails, the generator may stop and display a black
screen. For solutions, please contact the nearest SIGLENT sales office or
return the generator to SIGLENT for service.
