The SDG6000X Series Generator at a Glance

SIGLENT's SDG6000X is a series of dual-channel Pulse/Arbitrary Waveform
Generators that feature up to 500 MHz maximum bandwidth, maximum
sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include
proprietary TrueArb and EasyPulse technology that helps to solve the
weaknesses inherent in traditional DDS generators when generating arbitrary,
square and pulse waveforms. In addition, the SDG6000X is a multi-function
device which can generate Noise, IQ signals and PRBS patterns. These
features enable the SDG6000X to provide a variety of high fidelity and low jitter
signals, meeting the growing requirements of complex waveform synthesis.
Characteristics
The powerful feature set for the SDG6000X generator family includes:
Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output
amplitude, high fidelity output with 80 dB dynamic range
High-performance sampling system with 2.4 GSa/s maximum sampling
rate and 16-bit vertical resolution.

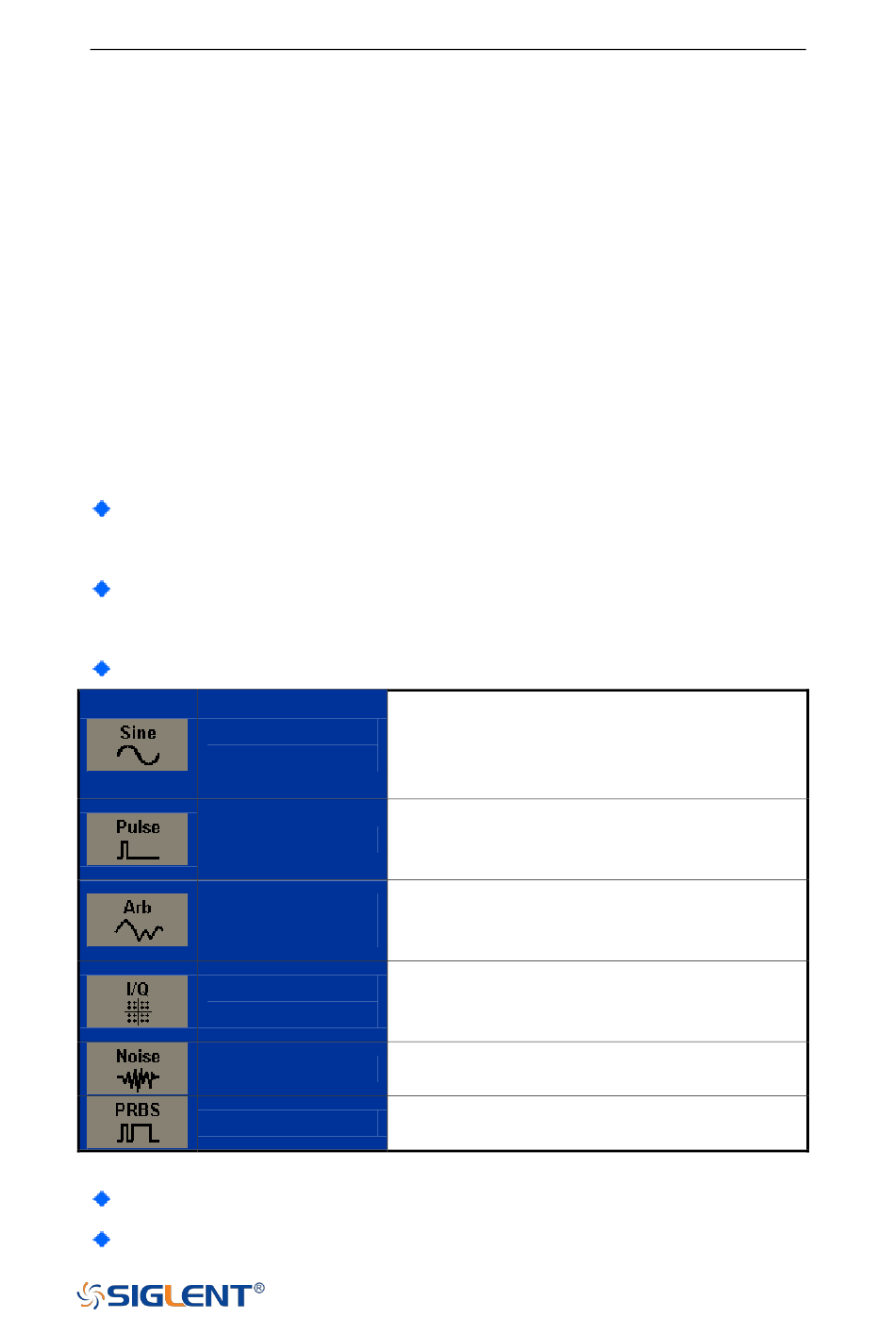

Multi-function signal generator that delivers:
Continuous
Generator
Pulse Generator
Function/Arbitrary
Waveform Generator
IQ Signal Generator
(optional)
Noise Generator
PRBS Generator
Sweep and Burst function
Harmonic function
Up to 500 MHz sine wave, supporting sweep and
Wave user-defined harmonics.
Low cost replacement of RF signal generators
below 500 MHz.
Up to 150 MHz Pulse, with adjustable width, rising
edge and falling edge; 3.3 ns minimum width and 1
ns minimum edge across the full frequency range
Basic Function/Arbitrary Waveform Generator with
modulation, sweep, burst and waveform
combining functions.
Base Band and IF IQ signal generation with
symbol rates between 250 Symb/s ~ 37.5
MSymb/s
Up to 500 MHz bandwidth White Gaussian Noise
with adjustable bandwidth
Up to 300 Mbps PRBS3 ~ PRBS32 with bit rate
and edge adjustments
