To Set the Output Frequency

The following steps show how to change the frequency to 20 kHz.
1.Press the Parameter softkey
Press the Parameter softkey to enter the parameter setting interface. The
waveform parameters including Frequency/Period, Amplitude/HighLevel,
Offset/LowLevel and Phase are ready to modify using the numeric keypad.

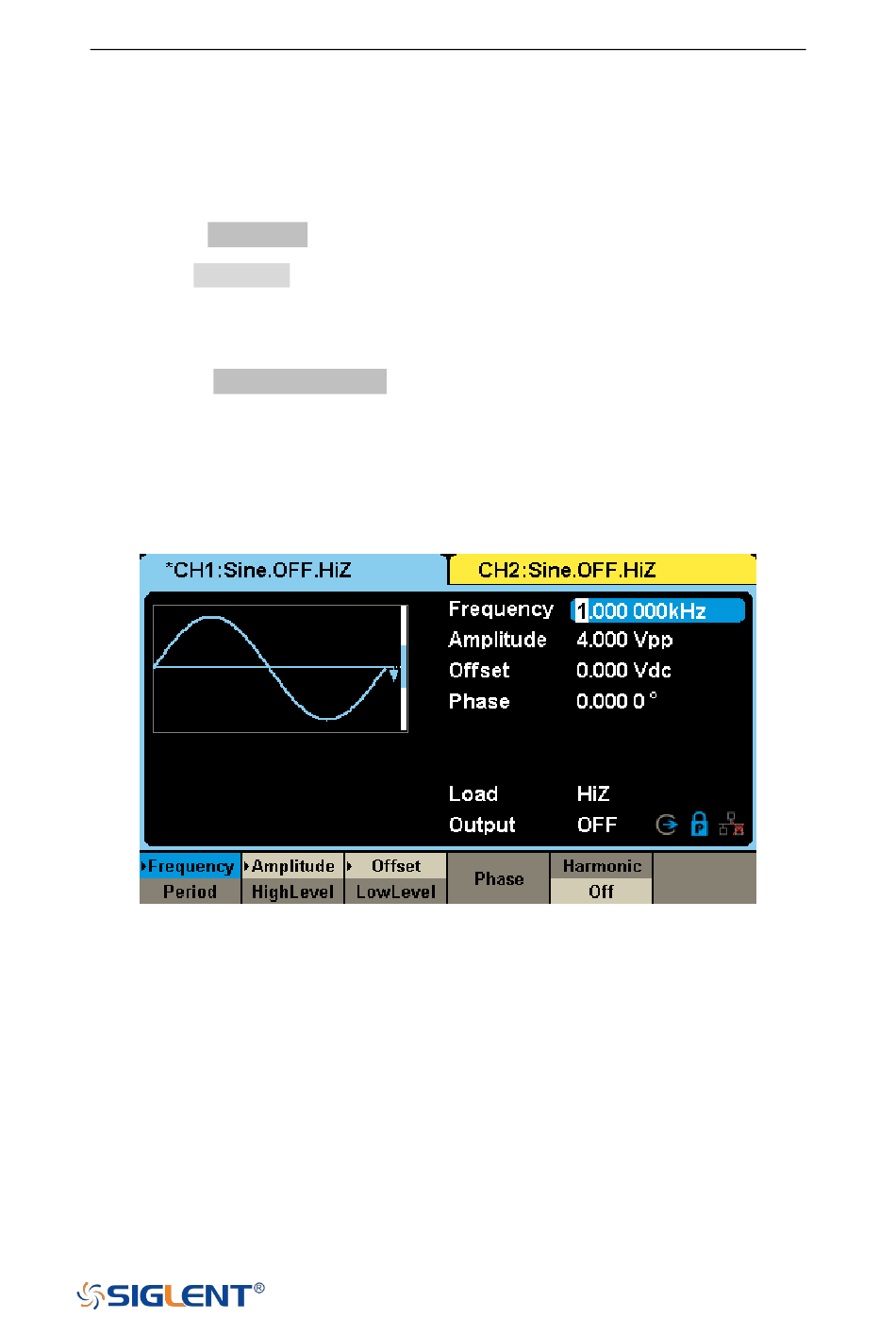

2. Press the Frequency/Period softkey
The displayed frequency is either the power-on value or the frequency
previously selected. When changing the waveform type, the same frequency is
used if the current value is valid for the new waveform. To set the period, press
the softkey again to switch to the period parameter.
3. Input the desired frequency
Use the digital keypad to input the value directly. Enter the value "20", then
press the corresponding softkey to select the desired unit. For example, press
kHz.
