Bass and Treble Control

For optimum audio quality, the audio input levels and the bass and treble controls must all
be set up properly. Input audio levels may need to be adjusted depending on the variation
of the output levels from different source devices.
NOTE: By default these levels are set for the consumer product level of -10 dBV.
Bass and treble should be adjusted once the input and output levels have been adjusted.
These are adjusted by configuration software only, with a range from -24 dB to +12 dB.
By default the bass and treble have been set at 0 dB.

VoiceLift Level Adjustment

To adjust VoiceLift microphone levels, press the
steps) from -18 dB to +24 dB, default is 0 dB.
While speaking into the microphone, increase the gain until the Normal LED is lit and the
Peak LED only lights occasionally.
INPUT
Figure 10.
The VoiceLift Microphone Receiver input signal is not affected by the system volume
adjustment and tone control via SIS or an MLC controller attached to the switcher. The
VoiceLift audio channel is always active, and it is independent of the selectable audio
inputs (1 - 7).
The VoiceLift Receiver Microphone input audio can be heard throughout a presentation,
whether or not audio from the selected input (1-6) is active or muted.
NOTE: If output audio is muted via the 1Z SIS command, all embedded audio on the
HDMI, line out and amplifier outputs is not be heard.
The VoiceLift Microphone input can be muted via a separate SIS command (see the
SIS Communication and Control
AUDIO LEVEL ADJUST
PAGING
VOICELIFT
SENSOR
PEAK PEAK
NORMAL NORMAL
SIGNAL SIGNAL

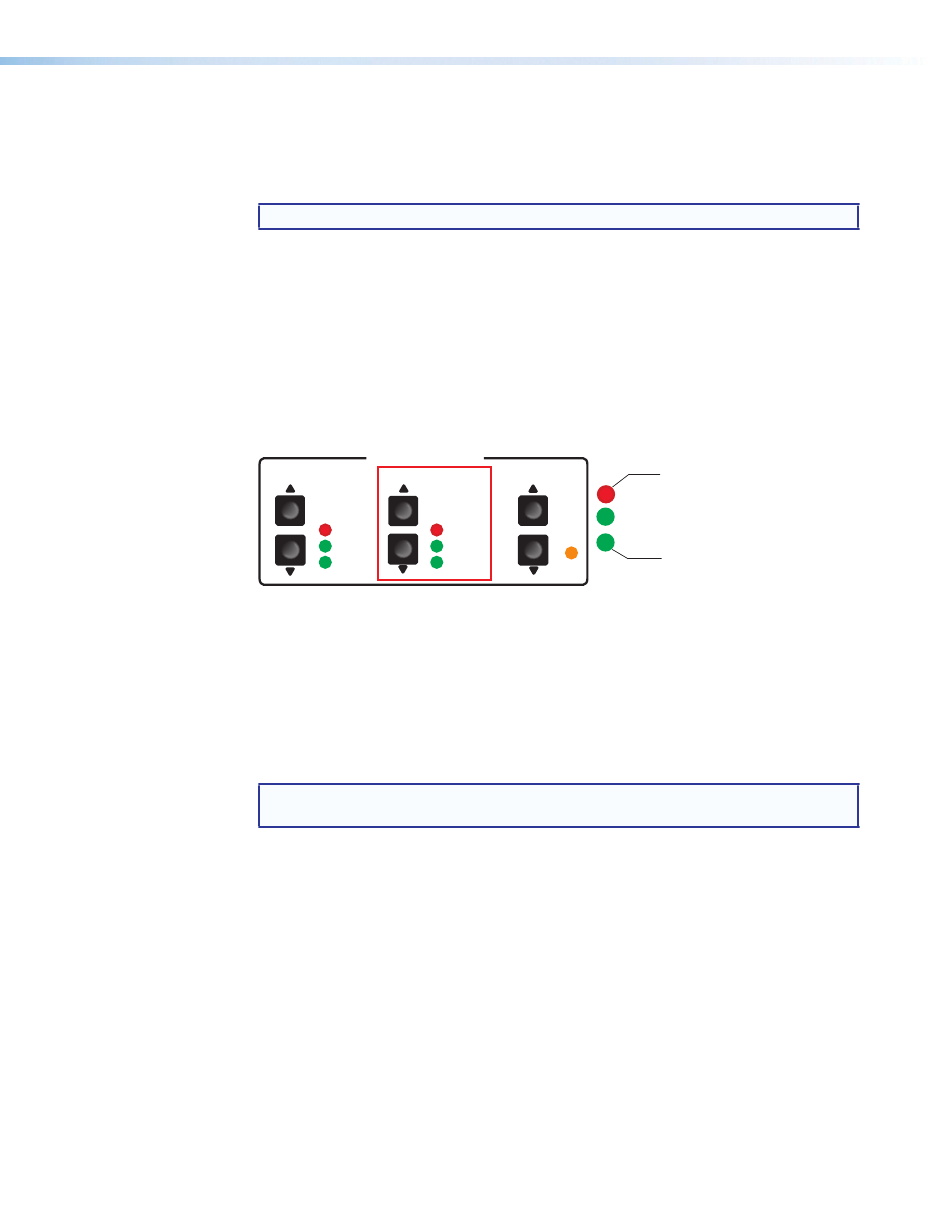

Front Panel VoiceLift Mic Peak/Normal/Signal LEDs and Adjustment
Buttons
section, page 18, for details).
adjustment buttons (in 1 dB
VoiceLift
Level set too high,
lower input gain.
PEAK
Level has been
NORMAL
properly adjusted.
SIGNAL
Signal threshold;
raise input gain.
PVS 407D Switcher • Operation 16
