BP10 NIBP Module
Q u i c k R e fe re n ce G u i d e
BP10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mindray BP10

Summary of Contents for Mindray BP10

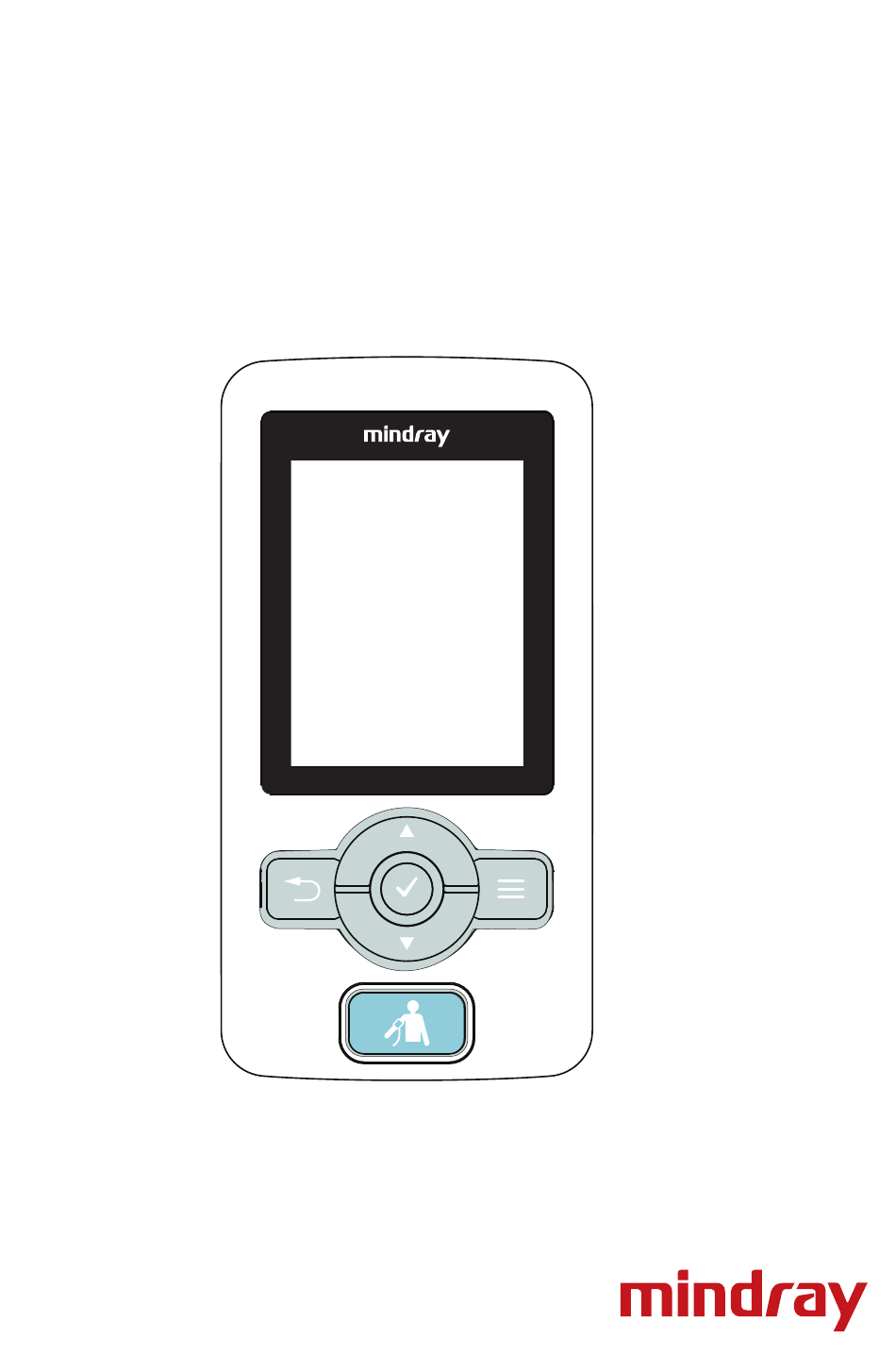

  • Page 1 BP10 NIBP Module Q u i c k R e fe re n ce G u i d e BP10...
  • Page 2 Note: The BP10 NIBP Module Quick Reference Guide is not intended as a replacement to the Operating Instructions. Prior to operating equipment, the user must be familiar with the Operating Instructions Manual contents. This document is a guideline only to be used as an aid to...

  • Page 3: Table Of Contents

    Disinfect the BP10 ........
  • Page 4 P/N: H-046-011009-00 Rev 2.0...

  • Page 5: Physical View

    BP10 NIBP Module Quick Reference Guide PHYSICAL VIEW BP10 1. Display 2. Confirmation key When the desired option is highlighted, press this key to select or activate the corresponding function. 3. Main Menu key Press this key to turn to the main menu.
  • Page 6 8. Power On/Off key • When BP10 is powered off, press this key to turn BP10 on. • When BP10 is powered on, press and hold this key to display the power off confirmation menu. • If the screen display is on, press this key to turn the display off.

  • Page 7: Main Screen

    BP10 NIBP Module Quick Reference Guide MAIN SCREEN 2015/08/08 10:03 PM NIBP-001 Sequence:P1 mmHg @ 10:00 PM 00:00:05 (84) 2015/08/08 10:03 PM NIBP-001 mmHg 120/80 (94) @ 10:00 PM 00:00:05 SYS/DIA 120/80 (94) 09:55 PM 126/86 (96) 09:50 PM 120/80 (94)
  • Page 8 This area displays the date and time. 4. Audio off symbol The audio off symbol displays when the technical audio is turned off. 5. MPAN (Mindray Patient Area Network) symbol The MPAN symbol displays when the MPAN is turned on. 6. Battery symbol This symbol indicates the battery charge status.

  • Page 9: Main Menu

    BP10 NIBP Module Quick Reference Guide MAIN MENU 10-13-2013 01-13-2015 10:03 PM 10:03 PM Cad... Rajagopalan 41059080 NIBP-001 Menu Menu Clear Prompt Clear Prompt History Stop All History Stop All NIBP STAT NIBP STAT Mode Mode Manual Manual Venipuncture Venipuncture...

  • Page 10: Select And Configure An Option

    3. Select Patient Category to select the patient category 4. Select to confirm that the patient category 5. Press to exit the menu Note: Adjusting patient category restores the BP10 to the default (preset) settings but does not clear patient information. P/N: H-046-011009-00 Rev 2.0...

  • Page 11: Discharge

    BP10 NIBP Module Quick Reference Guide Discharge Discharging the patient will stop monitoring, clear patient information, and restore patient category and default (preset) settings at the BP10. A patient can be discharged by selecting the Discharge Patient in the main menu. STANDBY...

  • Page 12: Nibp Measurement

    Stop All in the main menu. PAIRING A BP10 WITH TD60/TM80 The BP10 can be paired with a TD60/TM80. After pairing, TD60/TM80 can display the NIBP related data and messages, and enable various BP10 functions. Refer to BeneVision TM80 Telemetry Monitor Quick Reference Guide (P/N: 046-011071-00) or BeneVision TD60 Display Telepack Quick Reference Guide (046-007060-00) for details on the paring process.

  • Page 13: Switch On/Off The Audio

    Volume option. 4. Press the key to save the setting and exit the menu PARAMETER COLOR The BP10 provides the ability to adjust the parameter's numeric color. To adjust the parameter's color at the BP10: 1. Press to enter the main menu 2.
  • Page 14 BP10 NIBP Module Quick Reference Guide The following table lists approved cleaning and disinfecting agents. Product Name Product Type Ingredients Sodium hypochlorite Liquid Sodium hypochlorite bleach 10% bleach* Hydrogen peroxide* Hydrogen peroxide 3% Isopropanol* Isopropanol 70% 1-Propanol* 1-Propanol 50% CIDEX OPA Solution Ortho-Phthalaldehyde 0.55%...
  • Page 15 BP10 NIBP Module Quick Reference Guide Product Name Product Type Ingredients Alpet® D2 Surface Wipes Isopropyl Alcohol 58.6000%® Sanitizing Wipes Octyl Decyl Dimethyl Ammonium chloride 0.0075%, Dioctyl Dimethyl Ammonium Chloride 0.0030% Clorox Dispatch® Sodium Hypochlorite 0.65% Hospital Cleaner Disinfectant Towels...
  • Page 16 2. Clean the display screen with wipes or a soft cloth moistened with one of the cleaning agents listed in the table above. 3. Clean the exterior surface of the BP10 main unit and lithium-ion battery pack with wipes or a soft cloth moistened with one of the cleaning agents listed in the table above.

  • Page 17: Disinfect The Bp10

    BP10 NIBP Module Quick Reference Guide CLEAN/DISINFECT THE REUSABLE NIBP Cuff To clean and disinfect the reusable NIBP cuff, refer to the instructions for use delivered with the accessory. STERILIZATION Sterilization is not recommended for this equipment, related products, accessories or supplies unless otherwise indicated in the Operating Instructions that accompany the product, accessories or supplies.

  • Page 18: Disinfect The Reusable Nibp Cuff

    Mindray DS USA, Inc. 800 MacArthur Boulevard, Mahwah, New Jersey 07430 USA Tel: 1.800.288.2121, 1.201.995.8000 www.mindray.com 0 4 6 - 0 1 1 0 0 9 - 0 0 ( 2 . 0 )
