3.4
API function call flow
The VL53L1X_ULD driver is used in the following two use cases:
•
Calibration flow is used to calibrate the sensor. Such calibration is done during manufacturing. The
calibration data must be stored in the host sytem and sent to the sensor during the bootup stage.
•
Ranging flow is used for distance measurements or object detection operations in the application software.
3.4.1
Calibration flow
UM2510 - Rev 1

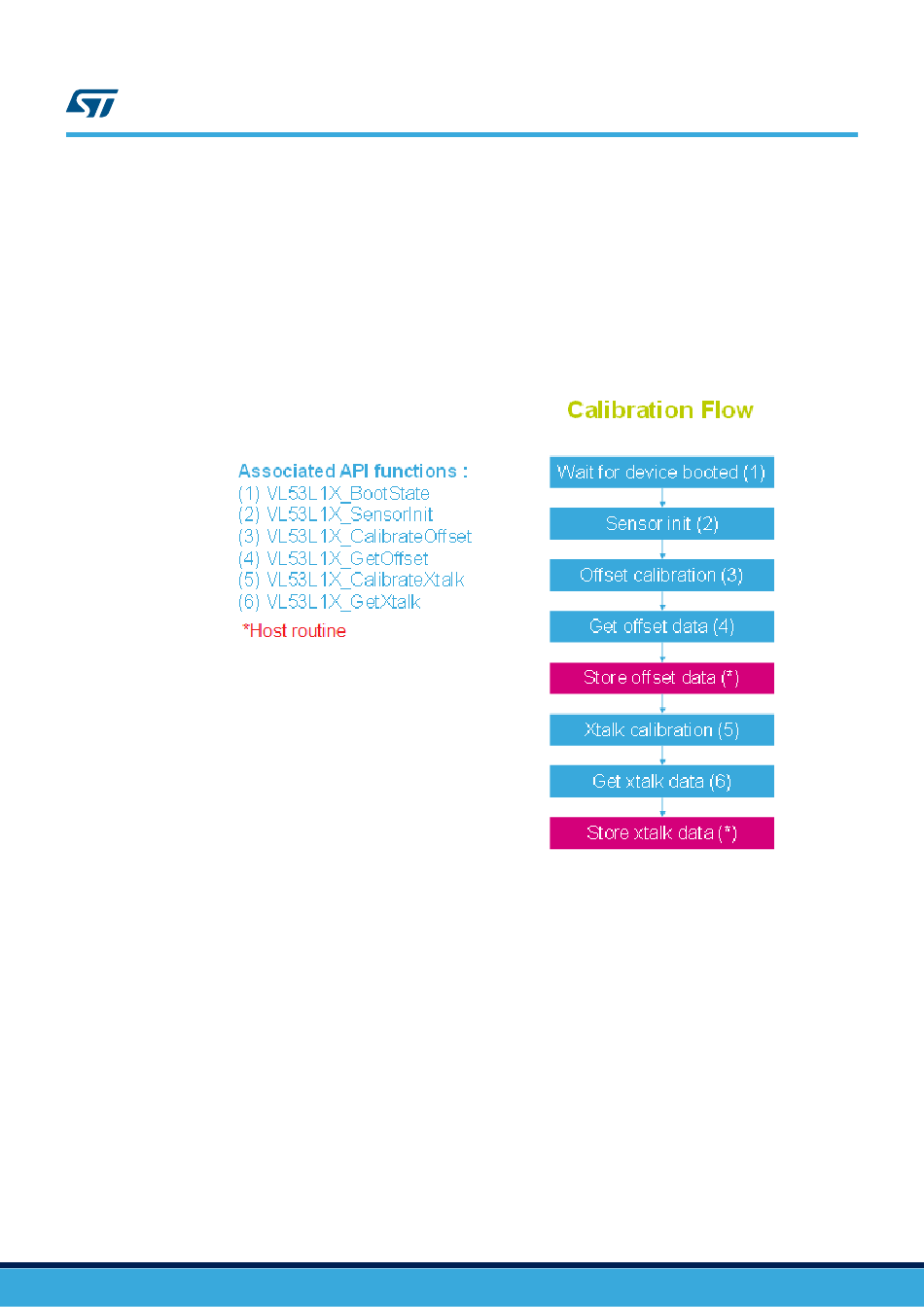

Figure 4.
Calibration flow
UM2510
API function call flow
page 5/26
