Pah 2-6.3/paht 2-6.3/paht c 2-6.3 and paht g 2-6.3 disassembling and assembling
Hide thumbs
Also See for PAH Series:
- Instructions manual (12 pages) ,
- Disassembling and assembling instructions (20 pages)
Table of Contents
Advertisement
Instruction
4

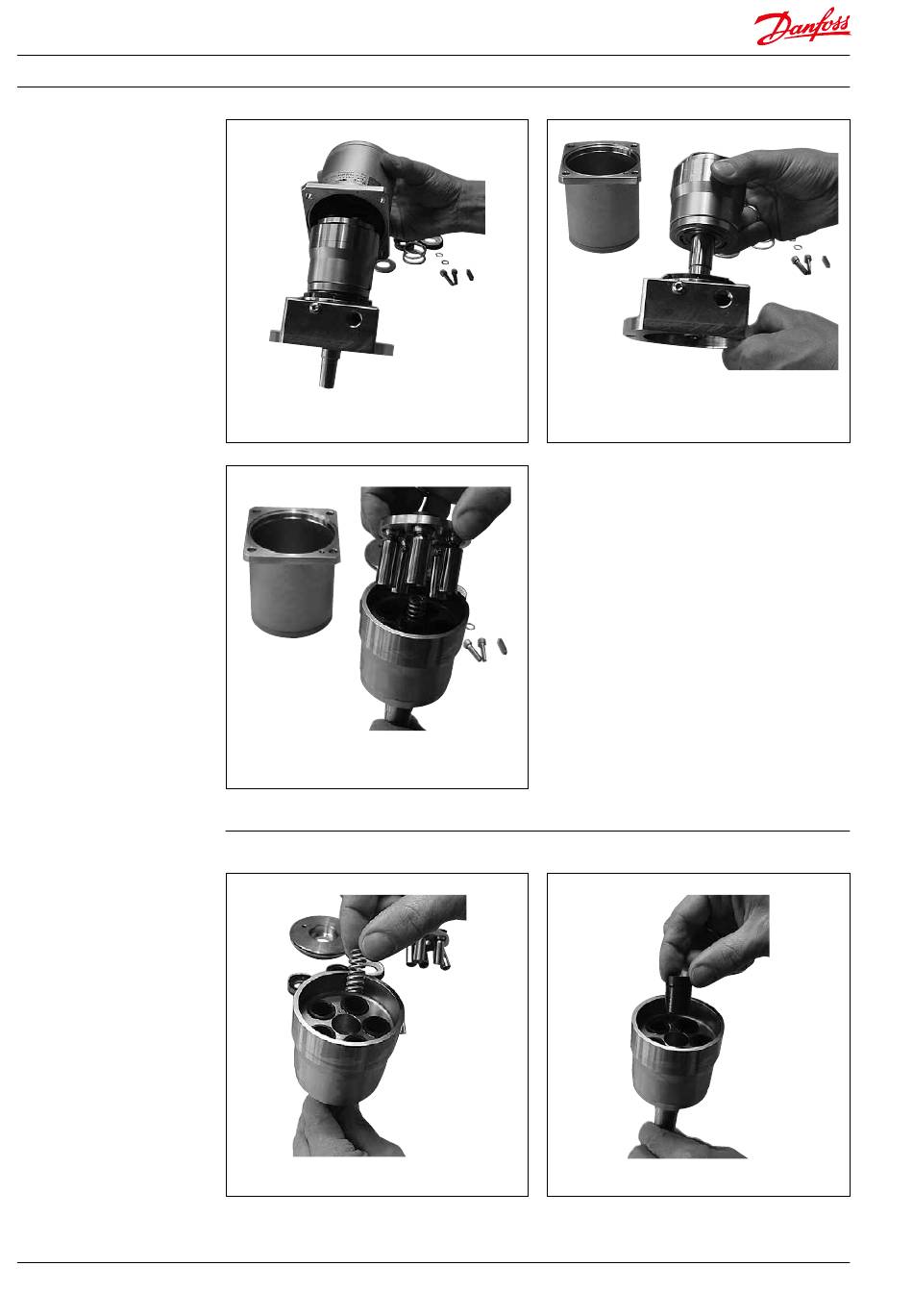

Disassembling and assembling PAH 2-6.3, PAHT 2-6.3, PAHT C 2-6.3 and PAHT G 2-6.3
7. Remove the housing.
9. Remove the pistons and the retainer plate
from the cylinder barrel.
NB: Items 10.1.a. and 10.1.b. concern PAH 2, PAHT 2, PAHT C 2 and PAHT G 2 only
10.1.a. Remove the spring
180R9094 / 521B0985 / DKCFN.PI.011.N5.02 / 09.2015
8. Remove the cylinder barrel.
10.1.b. Remove the stop.
