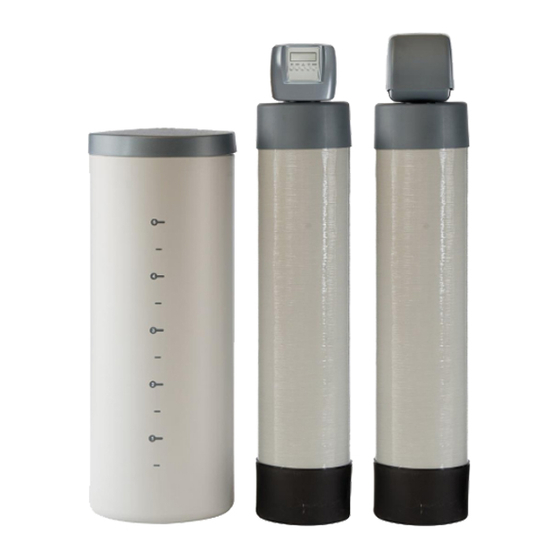

- Page 1 OWNER’S MANUAL Premium Series Two Tank 1-PLUS-1 Water Conditioner & Whole House Filters...
- Page 2 Congratulations! You’ve selected our Premium Series Two Tank 1-PLUS-1 water conditioner and whole house filter for top performance and greater efficiency. It’s a combination water conditioner and whole house filter, all in one! Your Premium Series water conditioning and filtering system is designed to provide years of service with proper care and maintenance.
-
Page 3: Table Of Contents
Table Of Contents PAGE TOPIC Models Specifications Open cartons and identify components Set up valve and install valve on mineral tank Set up brine tank Drain line installation System placement Electrical connections Water test Cycles 13-16 Valve programming Time of day Salt level settings Manual regeneration 20-21... -
Page 4: Models
MODELS Water Conditioners (tank #1) Model Number Tank Size Resin Volume PS-WC-100 10x44 1.0 Cu. Ft. PS-WC-150 10X54 1.5 Cu. Ft. Water Filter (tank #2) Carbon filters Model Number Tank Size Catalytic Carbon & KDF PS-1+1-SRB-100 10x44 1.0 Cu. Ft. PS-1+1-SRB-150 10X54 1.5 Cu. -
Page 5: Specifications
Specifications Valve type Metered (1) Motorized MAV (1) Valve sizes 1” and 1.25” Pipe fittings available ¾”, 1”, 1.25” and 1.5” Regeneration method Down flow Riser tube size 1.05” and 1.25” Drain line fitting ¾” male NPT Drain line tubing ½”, ¾”... - Page 6 Open Cartons This carton is inside the mineral tank Mineral tank carton. It includes the valve, by-pass, carton with fittings you ordered, drain line nut, valve carton drain line insert, upper basket, inside. installation instructions and warranty.
- Page 7 Set-Up Valve & Install On Tank 1. Assemble pipe 2. Lubricate ALL black o-rings with Silicone. fittings (Follow directions in package.) 3. Install 4. Install 6. Connect pipe upper basket valve on Install fittings to by-pass. (insert and mineral tank. by-pass.
- Page 8 Brine Tank Set-Up Premium Brine Components Brine well & fitting Overflow Tanks fitting with overflow device Note: It is necessary to remove and replace the overflow prevention device to be able to attach the brine well to the brine tank using the overflow fitting. Brine tank set-up instructions: 1.
-
Page 9: Drain Line Installation
Drain Line Installation If 5/8” x ½” drain line tubing is used insert the tubing “insert” into the tubing; install nut ; push tubing into the drain line fitting and tighten nut. Otherwise, PEX pipe or rigid ¾” or 1” PVC Push tubing in Insert “insert”... -
Page 10: Electrical Connections
Electrical Connections Connect MAV valve to control valve PRIOR to power up. (See “MAV” port on control valve’s PC board.) May need to “knock out” plugged hole on the back plate for power cord. Control Valve MAV Valve... -
Page 11: Water Test
Water Test It is essential to complete a water test, prior to start-up and valve programming. Check the following parameters: • Hardness • • Iron (well water) • Hydrogen Sulfide (you can smell it!) • Chlorine • We also recommend you check for obvious signs of bacteria on well water installations by checking for slime in back of the toilets. -
Page 12: Cycles
Premium Valve Cycles For One Plus One Systems Softener 1. Brine tank refill, followed by a 120 minute dwell time to dissolve the salt. 2. Backwash (up flow). 3. Draw / rinse to flow brine water through the resin bed. 4. -
Page 13: Valve Programming
Valve Programming Note: Connect MAV valve to master valve and connect master valve to power source before proceeding. On master valve display will read: “SALT REMAINING UNKNOWN”. STEPS: Once the valve is powered up, the display will read: “SALT REMAINING UNKNOWN”... - Page 14 Valve Programming (Continued) Assuming you selected “Conditioner-Filter”, continue as follows: • XR 1000 will appear on the screen. This is 8% resin. For Premium Systems select XR3000, for 10% resin and press NEXT • Select the resin volume and press NEXT (0.75 cu. ft. with 8x44 tank;...
- Page 15 Valve Programming (Continued) Injectors are factory installed. When setting regen at 50% capacity, we use: 8” tanks “C” injector (violet) 10” tanks “E” injector (white) 12” tanks “F” injector (blue) 13” tanks “G” injector (yellow) Check injector label and color of injector.
- Page 16 Valve Programming (Continued) Filter 1 Schedule – SET 5 days for carbon or lighter media 2 days for Birm or heavy media 4 days for neutralizer. Press NEXT. Filter 1 OP Sequence - SET BEFORE CND. Press NEXT.
-
Page 17: Time Of Day
Time of Day TIME OF DAY At the SALT REMAINING default screen: • Press NEXT until you see TIME OF DAY. • Press SET and TIME HOUR is displayed at the top with the hour flashing. Arrow to the correct hour and AM or PM and press NEXT. -
Page 18: Salt Level Settings
Salt Level Settings From the SALT REMAINING default screen: • Press SET • SALT LEVEL is displayed at the top and 0.0 is flashing. Use the arrow buttons to the salt level shown on the brine tank. • Press SET and the display will show SALT REMAINING UNKNOWN. - Page 19 Manual Regen So easy . . . With three regen options: 1. Press and hold the REGEN button (5 seconds), regeneration will be immediate. 2. Press and release the REGEN button, regeneration will be tonight. 3. Press and quickly release REGEN, then press and hold REGEN to initiate an immediate regen, followed by a regen that night.
- Page 20 ,and the valve will advance to the next position. Note: REFILL is the first cycle with Premium Series valves. Therefore, skip past “refill” on the initial start up to prevent carbon and other media fines from going into the brine tank.
- Page 21 Start Up (Continued) • Press REGEN again and the valve will move to REGENERANT DRAW DN cycle. During this cycle watch the level of water in the brine tank go down. (This observation is essential; otherwise, the resin will not become cleaned without brine water.) •...
-
Page 22: Error Messages
Error Messages To go back to factory settings follow these directions: Press NEXT REGEN together for 3 to 5 seconds (release when motor starts). Wait until the screen says: SALT REMAINING UNKNOWN. Now, press NEXT, NEXT, NEXT until you get to CAPACITY REMAINING Then, press SET. -
Page 23: Troubleshooting
TROUBLE SHOOTING If your water softener is “not working”, here is a basic check list to follow: • Test for hardness. • Check power source. • Check to make sure by-pass is open. • Check salt level in the brine tank. •... -
Page 24: Customer Orientation
Demonstrate the sound of water coming out of the drain so they will not be alarmed when they hear a backwash cycle • Explain the warranty (and with Premium Series system fill out the warranty card, which came with the Owner’s Manual. •...
