Summary of Contents for Anritsu MT9810B

  • Page 1 T h e t e s t & me a s u r e me n t e q u i p me n t y o u n e e d a t t h e p r i c e y o u w a n t . A l l t e s t I n s t r u me n t s , I n c .
  • Page 2 MT9810B Optical Test Set MT9812B Multi-Channel Box MN9662A/9664A/9672A/9674A Optical Channel Selector Multipurpose Optical Measuring Instruments Supporting Reference Light Sources...
  • Page 3 Up to 10 sets of measurement conditions can be saved for each channel, permitting the repetition of measurements. The MN96xxA Optical Channel Selector can be controlled from the MT9810B Optical Test Set by connecting the two via Clone Function a dedicated cable. It facilitates the measurement if the optical...
  • Page 4 Display: Displays the measured and set values. Use of a Key switches: Used to set the measurement conditions fluorescent character display tube facilitates the reading of Power switch the values. Plug-in slots: Units are inserted. GPIB interface External device control: Controls the external devices by RS-232C interface connecting an optical channel selector using a dedicated cable Remote interlock: An optical safety mechanism is adopted.

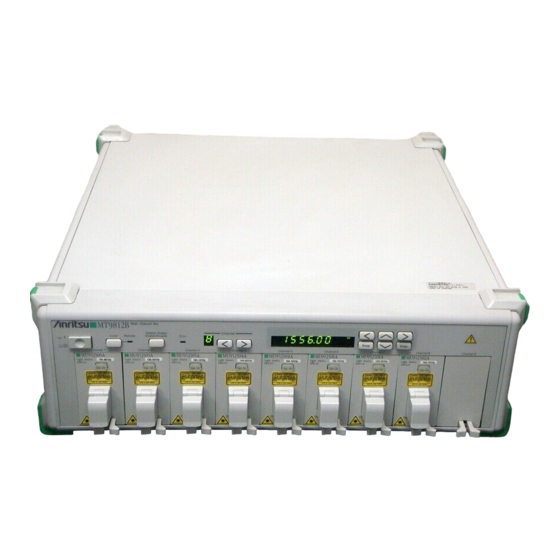

  • Page 5 The MT9812B is a mainframe supporting devices such as DFB- LD multiple light sources and multi-channel device evaluation systems. A maximum of 9 MT9810B compatible light sources (DFB-LD, FP-LD, SLD) and optical sensor units can be inserted. In addition to being able to set and verify setting...
  • Page 6 Control key: Pressing this key in the remote mode switches Parameter display: Displays the setting conditions of the the mode to the local one unit chosen with the channel selection. Moreover, displays Complete optical output control key: Turns on/off the the reception power of chosen with the optical units output from all the incorporated light source units together Operation keys: Used to select the parameter items to be...
  • Page 7 Light Source Units (for MT9810B/9812B) DFB-LD Light Source Unit High-Power, High-Stability MU952500A/952600A series are 97 wavelengths supporting High Power of +10 dBm and high stability of better than or equal WDM. The unit is equipped with a high-output and high-stability to ±0.005 dB are provided.
  • Page 8 FP-LD Light Source Units The MU951301A and MU951501A have a wavelength of 1.31 µm and 1.55 µm, respectively. The MU951001A allows the wavelength to be selected as either 1.31 or 1.55 µm. High-Power The units are general-purpose light sources with a high output of +7 dBm, making them ideal for performing measurements over a high dynamic range.
  • Page 9 High-Resolution Optical Power Measurement port fiber with an APC connector, GI fiber and bare fiber. The MT9810B has a panel of high resolution of 1/1000 dB. In MU931431A is a plug-in model and MA9331A, a sensor head addition, the optical power can be measured at a high resolution model.
  • Page 10: Configuration Example

    Configuration Example Each unit supports various types of optical fibers by changing the replaceable optical connector and connector adapter. Applicable fiber: SM ( 10/125 µm, ITU-T G.652 ) Replaceable optical connector FC-PC FC adapter FC-APC FC-APC FC-PC conversion cord • SC-PC SC adapter SC-APC...
  • Page 11 ( 9/125 to 62.5/125 µm, NA: ≤0.29 ) Applicable fiber : GI/SM Bare fiber (SM/GI, 125 µm outside MA9013A Fiber Adapter diameter usable) MA9005A Connector Adapter MU-PC, MU-APC LC-PC, LC-APC FC-PC, FC-APC ST-PC, ST-APC MU931422A: General-Purpose Optical MA9005A-32 connector Adapter for Sensor Unit MA9005A-33 connector Adapter for LC MA9005A-37 connector Adapter for FC...
  • Page 12 ( 9/125 to 62.5/125 µm, NA: ≤0.29 ) Applicable fiber : GI/SM Bare fiber (SM/GI, 125 µm outside diameter usable) MA9901B Fiber Adapter MA9903A Connector Adapter MU-PC, MU-APC LC-PC, LC-APC FC-PC, FC-APC ST-PC, ST-APC MA9331A: High-power Sensor MA9008A-32 connector Adapter for MU MU931002A: Sensor Adapter MA9008A-33 connector Adapter for LC...
  • Page 13 MT9810B when the optical channel selector is controlled by the MT9810B GPIB/RS-232C setting: Sets the communication conditions of RS-232C interface or an address of GPIB interface External control: The MT9810B Optical Test Set or an opti- cal channel selector is connected.
  • Page 14 Measurement of Insertion Loss Characteristics of the Optical Device Optical Fiber Loss Measurement By combining the MT9810B Optical Test Set with optical chan- By combining the light source with the optical sensor unit, the nel selectors, insertion loss of multiple DUTs can be measured optical fiber loss can be measured.
  • Page 15: Return Loss Measurement

    DUT. about 10 µs (0.5 V output). MT9810B Light source output Optical sensor input Optical isolator Polarization controller...
  • Page 16: Specifications

    Specifications Main frame MT9810B Optical Test Set dBm: 0.001, 0.01, 0.1 Display resolution dB: 0.001, 0.01, 0.1 W: 5 digits Display range –199.999 to +199.999 dBm, ±0.0001 pW to ±10000 W Fluorescent character display tube, 7 segments (5-1/2 digits), 2 screens, dot matrix (138 x 20 dots),...
  • Page 17 Light Sources DFB-LD Light Source Model MU952501A/952502A/952503A/952504A/952505A MU952601A/952602A/952603A/952604A/952605A/952606A Optical element DFB-LD Applicable optical fiber SM (ITU-T G.652) Specified wavelength 191.7 to 195.9 THz (1563.86 to 1530.33 nm) 186.3 to 191.6 THz (1609.19 to 1564.68 nm) ∗ range (fp) ∗ Center optical frequency fp ±0.01 THz (approx.
  • Page 18 SLD light source Model MU954501A Optical element Fiber SM fiber (ITU-T G.652) ∗ Wavelength 1550 ±20 nm ∗ ≥40 nm Spectral half-width ∗ Optical output power –3 ±1 dBm ∗ ∗ ∗ Time stability (short term) : ±0.01 dB ∗ ∗...
  • Page 19 Optical Sensors (unit) Model MU931311A MU931421A MU931422A Element InGaAs-PD Input type Fiber 9/125 to 62.5/125 µm (NA: ≤0.29) SM (ITU-T G.652) Applicable optical fiber PC, APC polish conformity Wavelength range 800 to 1600 nm 750 to 1700 nm CW: +10 to –110 dBm CW: +10 to –80 dBm ∗...
  • Page 20 Optical sensor (sensor head) Model MU931002A + MA9332A/MA9333A Element InGaAs-PD Input type Fiber 9/125 to 62.5/125 µm (NA: ≤0.29), PC, APC polish conformity Applicable optical fiber Wavelength range 750 to 1700 nm Optical power measurement range∗ CW: +7 to –80 dBm Noise level ∗...
  • Page 21 Temperature range Operating: 0˚ to +50˚C, Storage: –30˚ to +71˚C Remote control GPIB, RS-232C (D-sub 9-pin), control by MT9810B 85 to 132/170 to 250 Vac, ≤35 VA, 47.5 to 63 Hz Power 213 (W) x 88 (H) x 351 (D) mm, ≤4.5 kg...
  • Page 22: Ordering Information

    W1886AE MT9810B operation manual: 1 copy MU952501A-01 Light source (fp: 193.10 THz, 1552.52 nm) W1887AE MT9810B remote control operation manual: 1 copy MU952501A-02 Light source (fp: 193.20 THz, 1551.72 nm) J0895 RCA short pin (for remote inter-lock): 1 pc MU952501A-03 Light source (fp: 193.30 THz, 1550.92 nm)
  • Page 23 Model/Code No. Name Model/Code No. Name MU952603A-07 Light source (fp: 189.70 THz, 1580.35 nm) Applications parts MU952603A-08 Light source (fp: 189.80 THz, 1579.52 nm) J0617B Replaceable optical connector (FC, user replaceable) MU952603A-09 Light source (fp: 189.90 THz, 1578.69 nm) J0618D Replaceable optical connector (ST, user replaceable) MU952603A-10 Light source (fp: 190.00 THz, 1577.86 nm) J0618E...
  • Page 24 Connector adapter (MU, user replaceable) J0655A Serial interface cross cable (for PC-98) MA9005A-33 Connector adapter (LC, user replaceable) J0897B MT9810B connection cable, 1 m MA9005A-37 Connector adapter (FC, user replaceable) J0897C MT9810B connection cable, 2 m MA9005A-38 Connector adapter (ST, user replaceable)
  • Page 25 9, Avenue du Québec Z.A. de Courtabœuf 91951 Les 1155 East Collins Blvd., Richardson, TX 75081, U.S.A. Ulis Cedex, France Beijing Representative Office Toll Free: 1-800-ANRITSU (267-4878) Phone: +33-1-60-92-15-50 Room 1515, Beijing Fortune Building, No. 5 North Road, Phone: +1- 972-644-1777...
