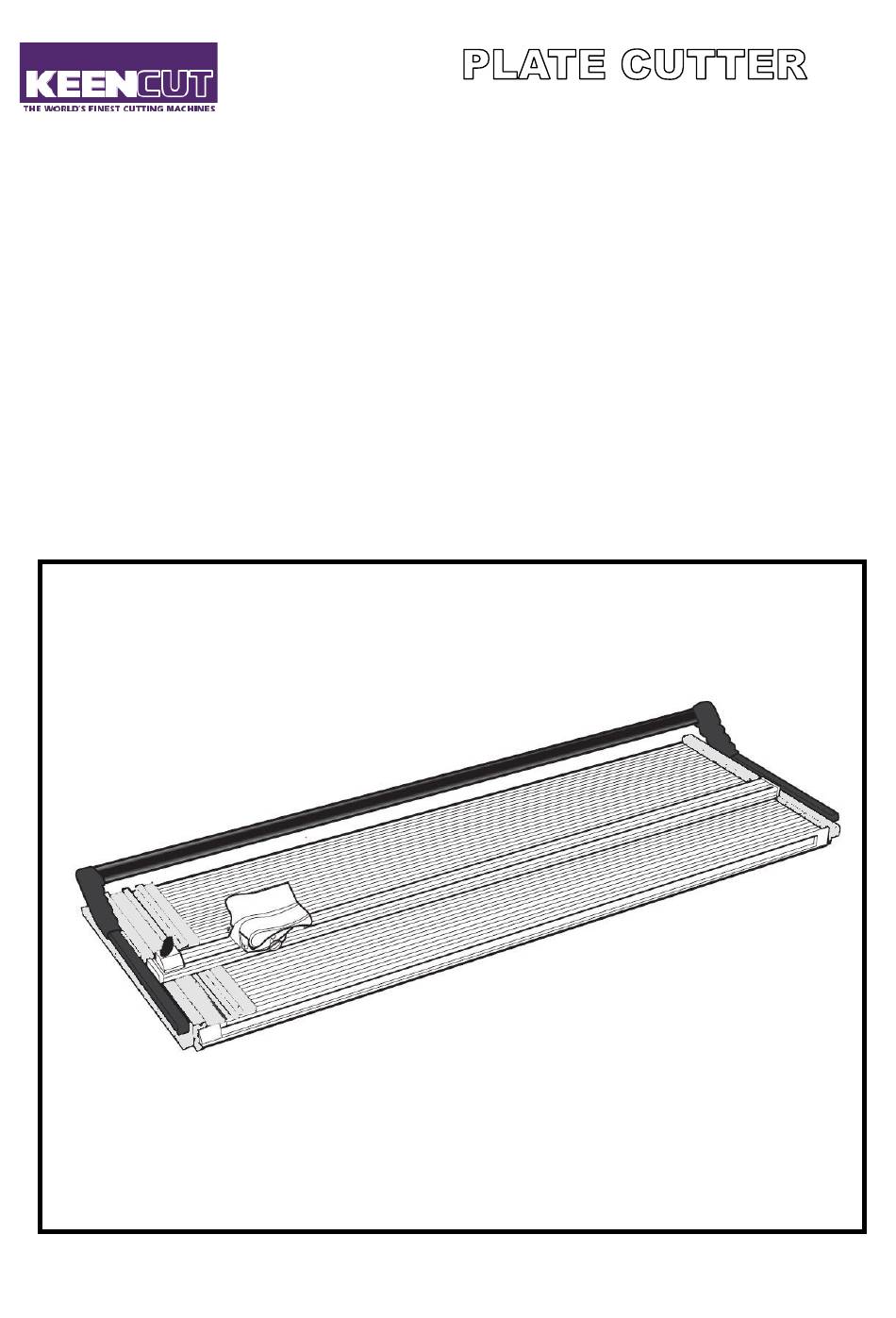

USER INSTRUCTIONS
Thank you for choosing the Keencut FLEXO PLATE CUTTER. Every
effort has been made to bring you a precision engineered product
with the promise of many years of valuable service. In order to obtain
maximum benefit from your machine please read these instructions
carefully.
For advice and assistance or replacement parts please contact your
distributor or Keencut Ltd.
Keencut Limited, Baird Road, Willowbrook Industrial Estate, Corby, Northants, ENGLAND NN17 5ZA.
Telephone: 01536 263158 Fax: 01536 204227 E-mail: info@keencut.co.uk
www.keencut.co.uk
Advertisement
Table of Contents
Related Manuals for KEENCUT FPC32
Summary of Contents for KEENCUT FPC32
- Page 1 For advice and assistance or replacement parts please contact your distributor or Keencut Ltd. Keencut Limited, Baird Road, Willowbrook Industrial Estate, Corby, Northants, ENGLAND NN17 5ZA. Telephone: 01536 263158 Fax: 01536 204227 E-mail: info@keencut.co.uk www.keencut.co.uk...
-
Page 2: Table Of Contents
Contents Know your Flexo Plate Cutter Operation The Blade Cartridges Using the 5° Offset Cutter Replacing the Sightline Strip Using the Bevel Cutter... -

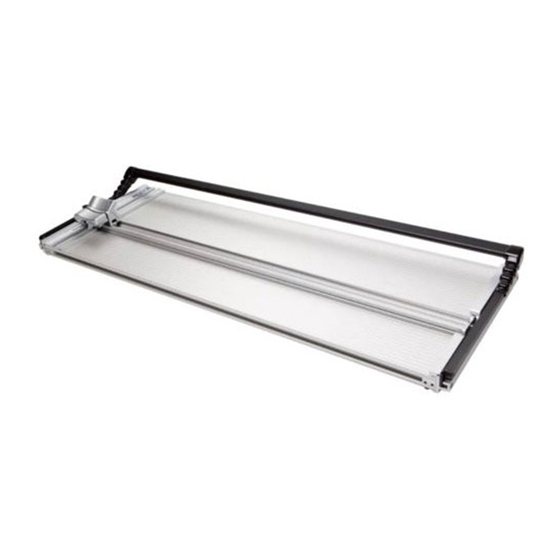

Page 3: Know Your Flexo Plate Cutter
End Plate Blade Holder Available in five sizes: Cutting length Rubber feet FPC18 46cm - 18” FPC32 81cm - 32” FPC50 127cm - 50” Rubber feet to be equally spaced along left and right edges of the base. FPC64 163cm - 64”... -
Page 4: Operation
Each cartridge has a different coloured label to help with identification and calibration if pre-set to suit different thicknesses of board. Additional blade cartridges are available from your Keencut distributor. Experimentation with blade types is advised to product optimum results with the various thicknesses and... -
Page 5: Using The 5° Offset Cutter
Operation Using the 5° Offset Cutter Cutter Bar Sight Line Strip The blade holder on the right hand side of the cutting head produces a 5° undercut. This enables the flexo plate to be joined on the roller and leave no gap at the join. Without the undercut the flexo plate will meet the base of the material but will leave a small gap at the outer surface of the plate. - Page 6 Replacing Sightline Strips Although the sightline strips are very durable they can become damaged and worn with use, replacements are available through your Keencut distributor. Place a light pencil mark on the cutter bar where the strip starts and finishes Remove the old strip by just peeling it off, remove any adhesive left on the cutter bar but be careful not to affect the adhesive holding on the green silicon tape.
-
Page 7: Using The Bevel Cutter
Operation Using the Bevel Cutter When cutting Flexo Plate always use a cutting mat to cut onto and ensure the blade depth is set to a minimum to cut through the material thickness. A cutting mat is supplied but experimentation using other materials such as good quality card can give good results. - Page 8 Keencut Limited, Baird Road, Willowbrook Industrial Estate, Corby, Northants, ENGLAND NN17 5ZA. Telephone: 01536 263158 Fax: 01536 204227 E-mail: info@keencut.co.uk www.keencut.co.uk...
