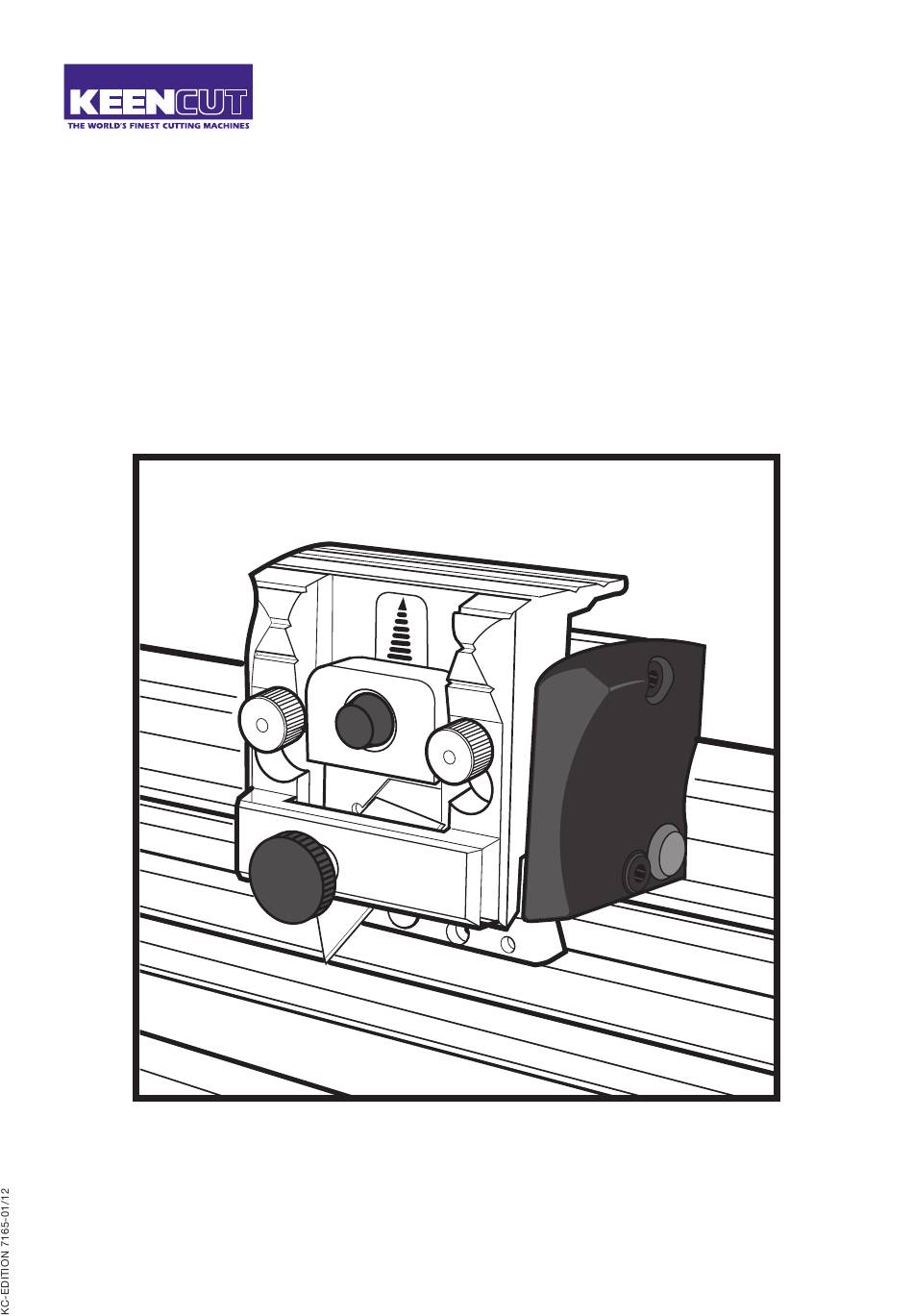

  • Page 1 Javelin Integra Inspired Design – Precision Engineering USER INSTRUCTIONS Thank you for choosing the Keencut Javelin Integra. Every effort has been made to bring you a precision engineered product with the promise of many years of valuable service. In order to obtain maximum benefit from your machine please read these instructions carefully.

  • Page 2: Table Of Contents

    Contents Contents Safety & Preparation Installation Recommendations Safety Set-up Installation Installation Blades and blade holders Changing the blade holder Medium duty blade holder Operation The Graphik blade holder Cutting PVC foamboards Cutting, Scoring hard plastics, Using the Rotary Cutter Changing the Rotary Blade Maintenance Cleaning and Lubrication - (warning note) Adjusting the Cutting Head Sliding Bearings.

  • Page 3: Safety & Preparation

    Safety & Preparation CHECKING THE FLAT SURFACE (TABLE TOP) I Please note! It is essential that the cutter is used on a flat surface for accuracy. A warped or bowed table top can induce a twist or bend in the Cutter Bar resulting in a bowed cut.

  • Page 4: Set-Up

    Set-up I DO NOT REMOVE THE PACKAGING BANDS UNTIL INSTRUCTED. CHECK THE TABLE SURFACE IS FLAT Check the flatness of the worktop by stretching a thin piece of strong thread between blocks (of the same height) measure the height of the thread above the table surface at regularintervals.
  • Page 5 Set-up FIT THE LIFTING HANDLES Using a 17mm spanner fit a lifting handle to each end. Once tightened they should move freely without sideways movements. Check the cutter is in the correct position on the table and that the Base Plate and End Plates are in line.

  • Page 6: Blades And Blade Holders

    Graphics and Sign making Industries. The Javelin Integra Cutter bar has been designed to cut a variety of boards to a thickness of 10mm (3/8") using standard Medium Duty utility blade. Materials to 13mm (1/2”) can be cut using the GRAPHIK D 017 blade holder.

  • Page 7: Changing The Blade Holder

    Set-up CHANGING THE BLADE HOLDER Before removing a blade holder make sure the blade has been removed or guarded as appropriate. Loosen both of the knurled screws by two turns, raise the blade holder to align the clearance holes with the screw heads and detach the blade holder.

  • Page 8: Medium Duty Blade Holder

    Set-up MEDIUM DUTY BLADE HOLDER Fitting the blade. Remove the magnetic blade guide by releasing the blade clamping knob Place blade onto the guide ensuring the blade notches are properly located and the back face of the blade is lying flat on the guide.

  • Page 9: Operation

    Operation THE GRAPHIK BLADE HOLDER Detach the blade clamping plate removing the large black clamping screw , if there is a blade already in the holder it will come away with the magnetic clamping plate . Please note. The blade depth adjuster with the small black knob is free to slide along its slot and the raised pin on the underside locates in the small hole in the GRAPHIK blade.
  • Page 10 Operation CUTTING The standard GRAPHIK blade holders can be set to cut at different depths and in either direction by simply adjusting or flipping the blade over in the holder. You can also push or pull the cutting head to suit your own comfort. DEEP CUT DEEP CUT SHALLOW CUT...

  • Page 11: Using The Rotary Cutter

    Operation THE ROTARY CUTTER The Rotary Blade Holder is used to cut textiles, thin papers and other delicate materials, it uses a circular blade to press down onto a cutting mat or sheet of suitable plastic placed on the base of the machine. The red plastic blade guard helps to protect the blade and fingers but, be very careful as the blade is extremely sharp.

  • Page 12: Changing The Rotary Blade

    Operation CHANGING THE ROTARY BLADE The circular blades are extremely sharp - wear protective gloves and handle with care. Unscrew the clamping knob to release the clamp plate then carefully remove the blade with the red guard and the blade centre boss. Separate the blade from the red guard and push out the magnetic centre boss...

  • Page 13: Maintenance

    Repeat this on the other screw, further finer adjustment on each screw may be needed to achieve an easy sliding movement with zero side play. KEENCUT Limited accepts no liability if the product is not assembled and used in the correct way.
