UM1789
User manual
STEVAL-IDB003V1 evaluation board
quick start guide
Introduction
®
The STEVAL-IDB003V1 is an evaluation board based on BlueNRG, a low power Bluetooth
®
Smart IC that is compliant with the Bluetooth
v4.0 specification and supports both master
and slave roles.
The STEVAL-IDB003V1 platform features an on-board STM32L low power microcontroller.
It can be used to explore the BlueNRG features and as a development platform for
®
Bluetooth
Smart applications running on the STM32L microcontroller and interfacing to the
BlueNRG network coprocessor.
®

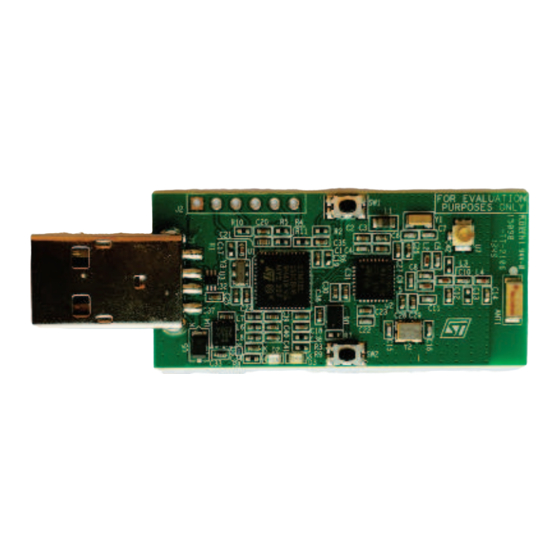

Figure 1. STEVAL-IDB003V1 Bluetooth
Smart platform
September 2014
DocID026531 Rev 1
1/10
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM1789 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST UM1789

  • Page 1 UM1789 User manual STEVAL-IDB003V1 evaluation board quick start guide Introduction ® The STEVAL-IDB003V1 is an evaluation board based on BlueNRG, a low power Bluetooth ® Smart IC that is compliant with the Bluetooth v4.0 specification and supports both master and slave roles.
  • Page 2: Table Of Contents

    Contents UM1789 Contents Getting started ..........3 Install BlueNRG DK SW package .
  • Page 3: Getting Started

    UM1789 Getting started Getting started The STEVAL-IDB003V1 evaluation board is preprogrammed with a software (BlueNRG_VOM_x_x.hex) allowing users to run the BlueNRG PC GUI (graphical user interface), which can be used to interact and evaluate the capabilities of the BlueNRG network processor.
  • Page 4: Open The Bluenrg Gui

    Getting started UM1789 Figure 3. STEVAL-IDB003V1 Virtual COM Port Open the BlueNRG GUI The BlueNRG GUI is available in the BlueNRG DK software package, Application folder (Figure 2: BlueNRG DK SW package structure and content): • Launch the BLUENRG_GUI.exe file •...
  • Page 5 UM1789 Getting started Figure 4. BlueNRG GUI GSPG1006141045SG The BlueNRG GUI utility can send standard and vendor-specific HCI commands to the BlueNRG network coprocessor and receive events from it. It allows the user to configure each field of the HCI command packets to be sent and analyze all received packets.
  • Page 6: Sw Demonstration Applications

    SW demonstration applications UM1789 SW demonstration applications In order to develop a software application for the STEVAL-IDB003V1 platform, it is recommend to start with the reference demonstration applications provided within the BlueNRG DK software package, in the Projects folder (Figure 2).
  • Page 7: References

    UM1789 References References Table 1. Reference information What Where Description BlueNRG Bluetooth Low Energy BlueNRG device www.st.com/bluenrg wireless web page network processor BlueNRG SW package with BlueNRG DK BlueNRG GUI & http://www.st.com/web/en/catalog/tools/PF259737# SW package reference demonstration applications Bluetooth Low Bluetooth...
  • Page 8: List Of Acronyms

    List of acronyms UM1789 List of acronyms Table 2. List of acronyms used in the document Term Meaning Bluetooth Low Energy Device firmware upgrade Development kit Graphical user interface Host controller interface Software Universal serial bus 8/10 DocID026531 Rev 1...
  • Page 9: Revision History

    UM1789 Revision history Revision history Table 3. Document revision history Date Revision Changes 29-Sep-2014 Initial release. DocID026531 Rev 1 9/10...
  • Page 10 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
