The following functions and indications are available:
• Indication of the device status
The device status is indicated after switching on the control supply. If an entry is
not made using the buttons for 60 seconds, the display returns to the display of
the device status.
• Indication of the device error status
On the occurrence of an error in the device, the display is immediately switched to
the indication of the error code.
• Parameter setting (indication „PA")
Reset the device parameter settings to the factory setting
• Ethernet IP address setting (indication „IP")
Setting for the Ethernet IP address as well as the subnet mask
• Fieldbus settings (indication „Fb")
Setting e.g. for the fieldbus address
2.5

Operating displays

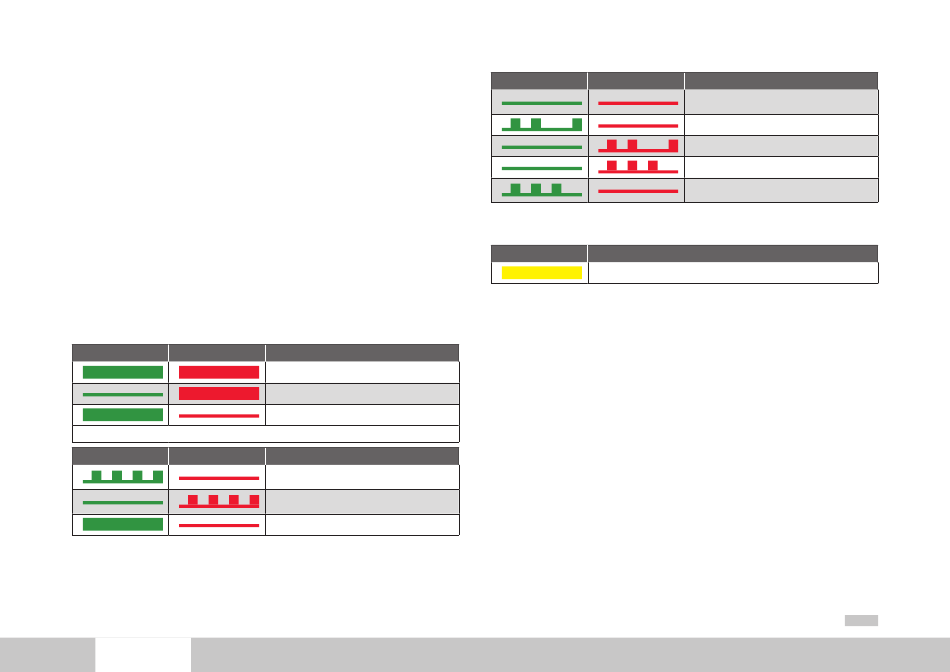

Options module: Three LEDs are mounted on the options card; these give indications
regarding the current operating status of the module. In Tables 2-2 and 2-3 the opera-
ting statuses of the Profibus module are listed, based on the various LED illumination
combinations.
LED 1, green LED 2, red
Table 2.3 Selftest during diagnostic
LED 1, green LED 2, red
Table 2.4 Operation diagnostics
moog
[ Chapter 2 ]
Status
Reset (after switching on)
ASIC RAM test and initialisation
End of ASIC RAM test and initialisation
Status
Seeking Baud rate after switching on without bus
connection
Seeking Baud rate after the bus connection has
already been established
Awaiting parameterisation data
LED 1, green LED 2, red
Table 2.4 Operation diagnostics
LED 3, yellow
Device is exchanging data
Table 2.5 Data exchange
2.6

GSD file

The device master data file contains the summary of the device features in a standar-
dised form. The device features include for instance the device name, the bus timing,
the extended services available and the modules that can be selected (telegram types).
In order to use different telegram types, the GSD file must be linked in at the configura-
tion phase of the Profibus network. This file contains, as well as the standard "Profidrive
Profile" telegrams, additional manufacturer-specific telegram types.
MSD Servo Drive User Manual Profibus
Status
Communication: Data exchange without acyclic
master class 2 connection. Yellow LED lights up.
Communication: Data exchange "clear state"
Incorrect parameterisation data
Incorrect configuration data
Communication: Data exchange with acyclic
master class 2 connection.
Status
