Sounder (Bell) Connections

Basic Connections

Connecting the Keypads and Other Addressable Devices

Connections

Supplementary Power
(optional)
UL
Use a UL Listed,
battery-backed supply for
UL installations. The
battery supplies power to
these keypads in case of
AC power loss.
The battery-backed power
supply should have
enough power to supply
the keypads with the UL
required minimum standby
power time.
1. Make sounder connections to alarm output terminals 3 (+) and 4 (–).
2. If not using bell supervision, connect the supplied 820-ohm resistor across terminals 3
and 4. If using bell supervision, see Supervised Output paragraph below.
 The 12VDC sounder output activates when an alarm occurs.
 Total current drawn from this output cannot exceed 2 amps (going beyond 2 amps will
overload the power supply, or may cause the electronic circuit protecting the sounder
output to trip).
 You must install a battery, since the battery supplies this current.

Supervised Output

1. Connect the supplied 820-ohm Bell Supervision EOL resistor across the terminals of the last
sounder. See Figure 5.
Bell Supervision Note: The value of the Bell Supervision EOL Resistor is 820 ohms.
High Impedance Device Note: If a high impedance sounding device is used (ex. 745X3),
the bell supervision resistor (included) must be installed at the device.
2. Set field 91 Option Selection for Bell Supervision (option 1).
This control complies with NFPA requirements for temporal pulse sounding of fire notification
appliances. Temporal pulse sounding for a fire alarm consists of: 3 pulses – pause – 3 pulses –
pause – 3 pulses–etc.
UL
 Use only UL Listed sounding devices for
UL installations.
 Bell supervision is required for fire alarm
installations.
 The total current drawn from the alarm
output and the auxiliary power output,
combined, cannot exceed 600mA. In
addition, the sounding device must be a
UL Listed audible signal appliance rated
to operate in a 10.5-13.8VDC voltage
range, and must be mounted indoors.
Connect keypads and other addressable devices (4204, 4219, 4229, 5881, etc.) to the
control's keypad terminals as shown on the Summary of Connections diagram. The system
supports up to 8 keypads, which can be assigned to partitions in any combination (see
program fields *190-*196).
Use the Table of Device Addresses to determine the appropriate address for each device.
Determine wire size using the Wire Run Chart on the following page. For single 4-wire runs,
determine the current drawn by all units, then refer to the Wiring Run chart to determine the
maximum length that can be safely used for each wire size.
Use supplementary power if the
control's aux. power load for all
devices exceeds 600mA (suggested
power supply: AD12612). Connect as
shown in Figure 6. Be sure to
connect the negative (–) terminal on
the power supply unit to terminal 4
(AUX –) on the control.
IMPORTANT: Keypads powered
from supplies that do not have a
backup battery will not function if
AC power is lost. Make sure to
power at least one keypad in each
partition from the control's auxiliary
power output.

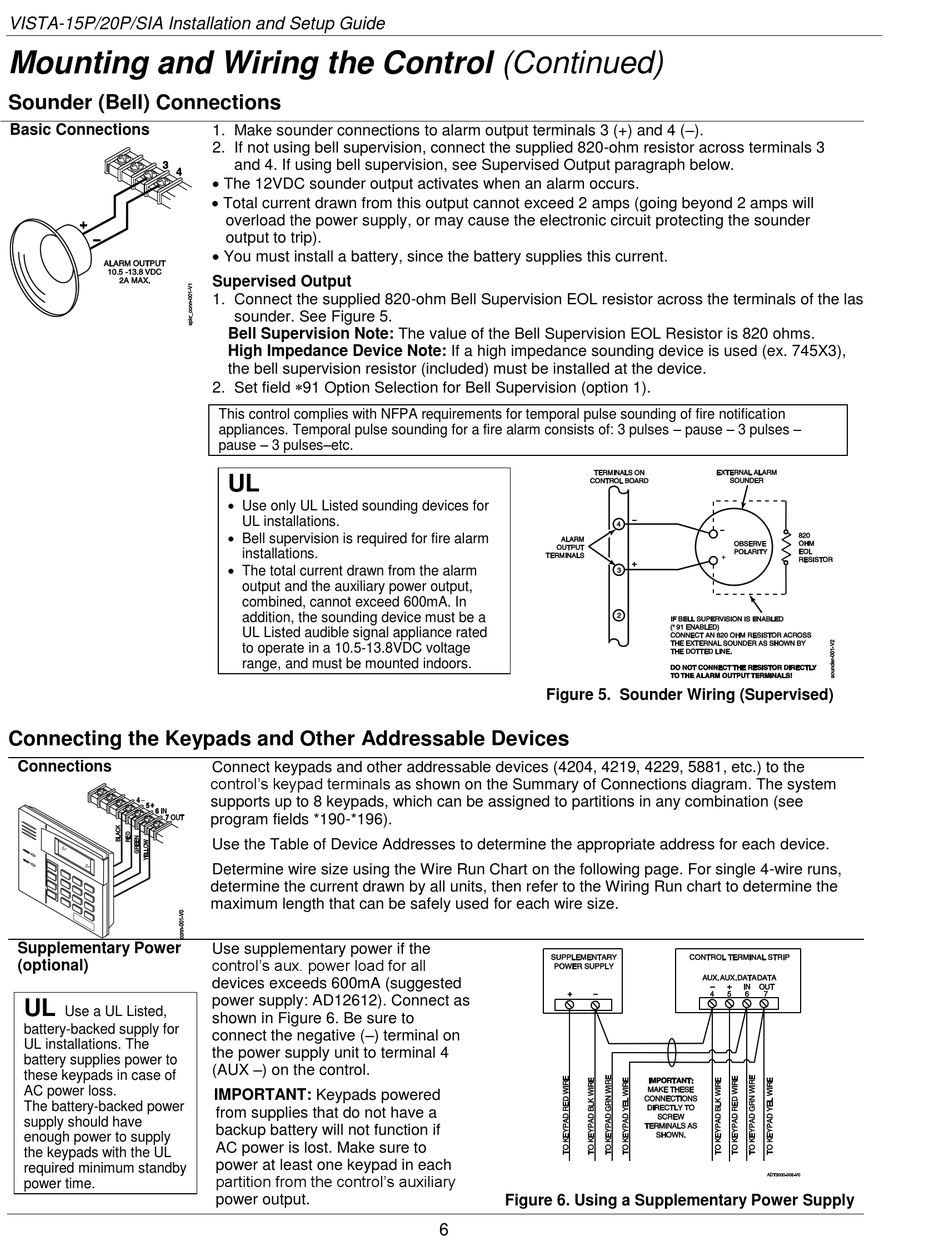

Figure 5. Sounder Wiring (Supervised)
Figure 6. Using a Supplementary Power Supply
