HCC/HCD710AJS, HCC1010AJS, HCC1410AJS, HCC1010WJS, HCC1410WJS,
HMC1010AJS, HMC1410AJS, HMC1010WJS, HMC1410WJS,
HCE1010AJS, HCE1410AJS, HCE1010WJS, HCE1410WJS
HME1010AJS, HME1410AJS, HME1010WJS, HME1410WJS
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com

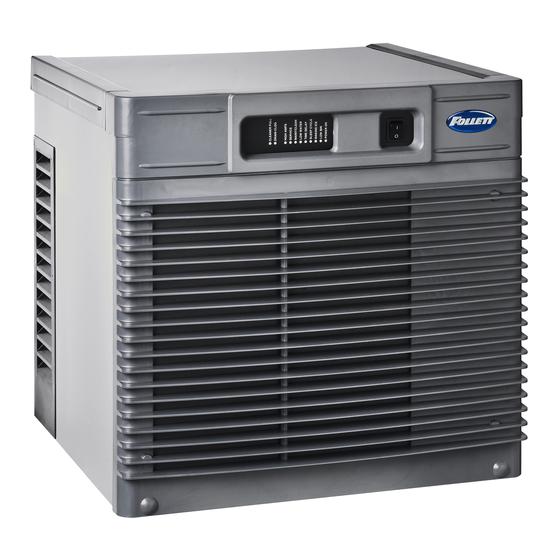

Horizon Elite
Ice Machine Models with RIDE
™
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Installation Instructions for Drop-In
Technology
™
self-contained
01113281R02
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite series
Summary of Contents for Follett Horizon Elite series
- Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ™ Installation Instructions for Drop-In HCC/HCD710AJS, HCC1010AJS, HCC1410AJS, HCC1010WJS, HCC1410WJS, HMC1010AJS, HMC1410AJS, HMC1010WJS, HMC1410WJS, HCE1010AJS, HCE1410AJS, HCE1010WJS, HCE1410WJS HME1010AJS, HME1410AJS, HME1010WJS, HME1410WJS (See model number configurator on page 2 for details.) Order parts online www.follettice.com self-contained...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Louvered docking assembly Ice transport tube External connection Internal connection Front cover DROP-IN • RIDE Technology self-contained...
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ DROP-IN • RIDE Technology... -
Page 5: Site Preparation
• 10-70 psi (69-483kpa) • 45 to 90 F (7 to 32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Dispenser preparation Hot Water 160 F (71 C) 12" (304,8mm) min. 4" (101,6mm) • Determine best route for ice transport tube run. Note: 12" (304,8mm) clearance is required. • Drill 1 3/4" (44,5mm) hole through either side of dispenser ➊... -
Page 7: Before Proceeding
Louvered docking assembly Install the louvered docking assembly. BEFORE PROCEEDING Prior to installing the louvered docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting. - Page 8 Undercounter installation detail Front View Top View Access panel/ door on counter ➌ ➊ 2" 2" (51 mm) 2.25" (51 mm) (57 mm) ➍ 24" x 15" cutout (610 mm x 381 mm) bottom of ice machine side of ice machine CAUTION •...
-
Page 9: Ice Transport Tube Installation
Ice transport tube Install the ice transport tube. Ice transport tube installation. ➋ Hot Water 160 F (71 C) ➎ ➊ 1/4" ➌ ➍ ➏ ➐ Ice transport tube tips • Insulate entire length of ice transport tube ➊ • Secure ice transport tube ➋... -
Page 10: External Connections
External connections Connect utilities to louvered docking assembly. Air-cooled ice machines only Water-cooled ice machines only ➊ ➊ ➏ ➋ ➋ ➐ ➌ ➌ Minimum 8" ➑ Minimum 8" ➏ radius radius 2 ft. x 1" OD 2 ft. x 1" OD silicone tubing silicone tubing 3/4"... -
Page 11: Internal Connections
Internal connections Connect louvered docking assembly to ice machine. CAUTION • Plug must be accessible after final installation. • H_E1410A/W 230/50/1) requires a 20 amp circuit (4.00 mm wire) Air-cooled ice machines – follow steps 7.1 through 7.5. Ice transport tube Potable water and drain lines ➋... -
Page 12: Tds Switch
Water-cooled ice machines – follow steps 7.6 through 7.12. TDS switch Cooling lines HIGH CLEAN • Set the TDS switch on the electrical box: • Install ice machine cooling water lines to louvered docking assembly HIGH: for extended service life LOW: for low-scale water Ice transport tube Potable water and drain lines... - Page 13 7.10 Cooling lines and power Power cord ➋ ➊ • Remove twist tie • Carefully pass cord thru opening and plug • Connect cooling water lines to ice into wall outlet machine (Water "Out" connects to water • For H_E units, install a suitable plug ➊...
-
Page 14: Front Cover
Front cover Install front cover to ice machine. Install front cover Front cover installation – air-cooled undercounter only ➊ ➋ ➋ ➌ ➊ ➌ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of louvered ➊... - Page 15 Long tube run recommendations max. 2 ft (.6m) 1/4" • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps ➋...
- Page 16 801 Church Lane • Easton, PA 18040, USA 01113281R02 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follett LLC 4/18 www.follettice.com...
