Installing and Wiring Your Module

After reading this chapter, you should be able to:
• set the module's jumpers
• install your module into your SLC 500 fixed or modular controller system
• wire the mating connectors of the cables used to interface user devices to the
module ports
The module has four sets of jumpers that you need to set. Jumpers JW1 and JW2
configure ports PRT1 and PRT2. Jumper JW3 configures the type of optional
memory module. Jumper JW4 configures the program port. Figure 3.1 shows the
location of these jumpers.

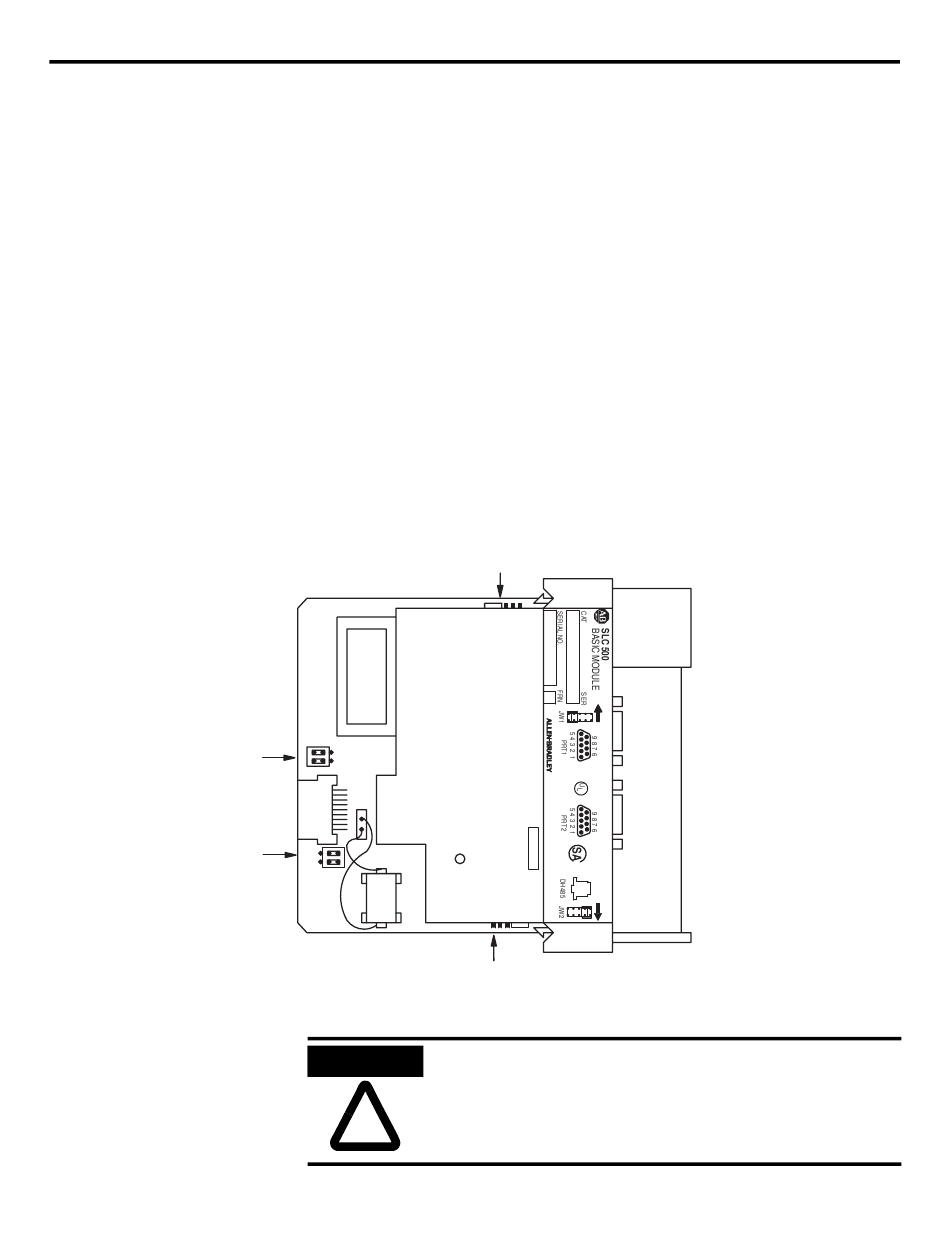

Figure 3.1 Jumper Locations
JW1
JW2
ATTENTION
Do not expose the module to surfaces or other areas that may
typically hold an electrostatic charge. Electrostatic charges can


alter or destroy memory.
