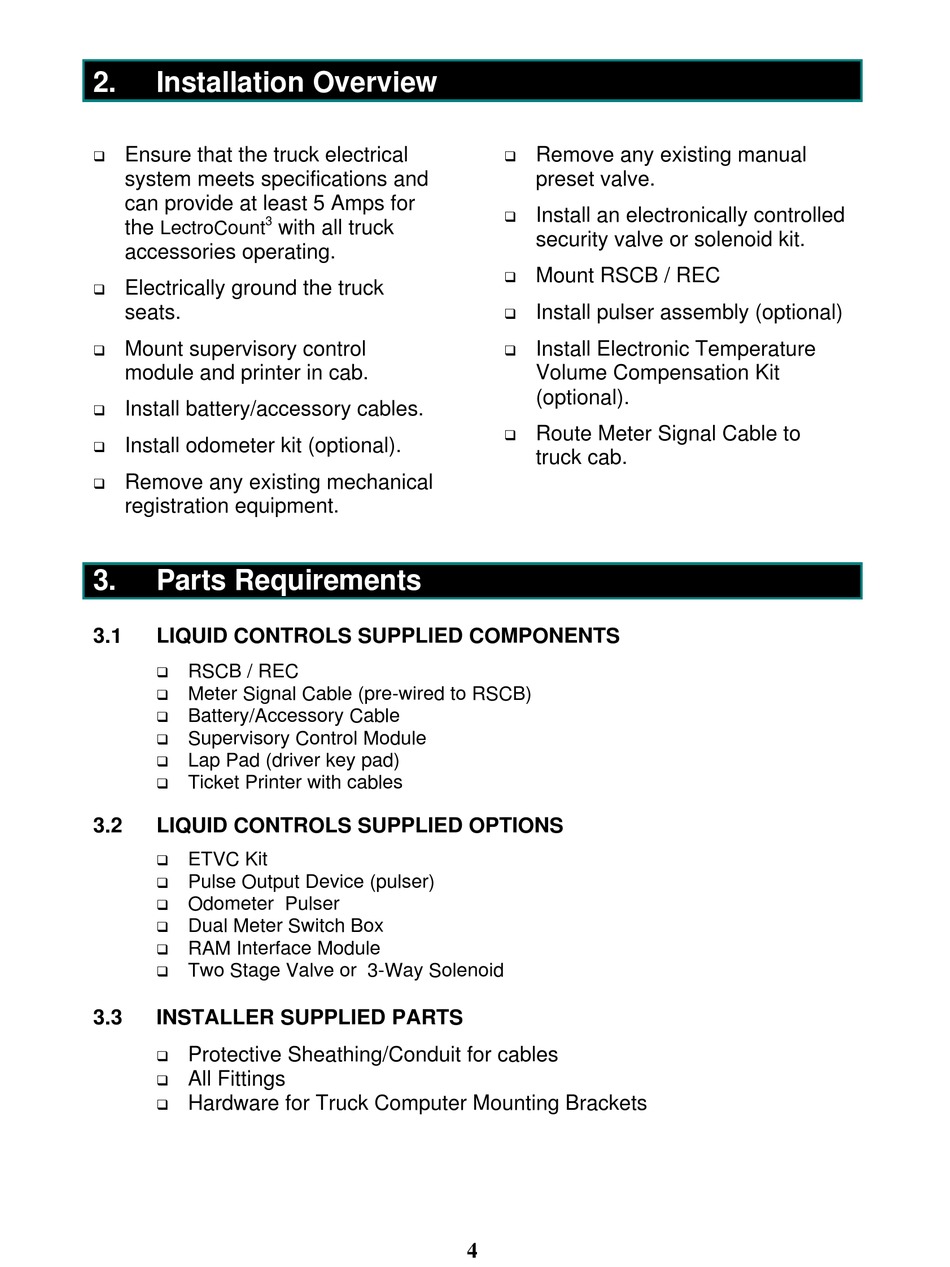

2.
Installation Overview
Ensure that the truck electrical
q
system meets specifications and
can provide at least 5 Amps for
3
the
LectroCount
accessories operating.
Electrically ground the truck
q
seats.
Mount supervisory control
q
module and printer in cab.
Install battery/accessory cables.
q
Install odometer kit (optional).
q
Remove any existing mechanical
q
registration equipment.
3.
Parts Requirements
3.1
LIQUID CONTROLS SUPPLIED COMPONENTS
RSCB / REC
q
Meter Signal Cable (pre-wired to RSCB)
q
Battery/Accessory Cable
q
Supervisory Control Module
q
Lap Pad (driver key pad)
q
Ticket Printer with cables
q
3.2
LIQUID CONTROLS SUPPLIED OPTIONS
ETVC Kit
q
Pulse Output Device (pulser)
q
Odometer Pulser
q
Dual Meter Switch Box
q
RAM Interface Module
q
Two Stage Valve or 3-Way Solenoid
q
3.3
INSTALLER SUPPLIED PARTS
Protective Sheathing/Conduit for cables
q
All Fittings
q
Hardware for Truck Computer Mounting Brackets
q
with all truck
Remove any existing manual
q
preset valve.
Install an electronically controlled
q
security valve or solenoid kit.
Mount RSCB / REC
q
Install pulser assembly (optional)
q
Install Electronic Temperature
q
Volume Compensation Kit
(optional).
Route Meter Signal Cable to
q
truck cab.
