Hayward OmniLogic Installation Manual page 6

Features
The standard Hayward HLBASE OmniLogic offers the following features:
• control up to 4 high voltage (120/240V) relays to control pumps, pool lights, yard lights, water features, chemical dispensers and more
• control up to 4 automatic valve actuators including pool and spa valves, water feature valves, cleaner valves and more
• control up to 4 heaters or low voltage equipment including gas heaters, electric heat pumps, and solar heaters as well as various low voltage devices
• inputs for up to 4 temperature sensors or external input devices
• ethernet port for wired connection to the home's router/access point allowing communication to devices on the home network or on the web
• 100A electrical subpanel that can accommodate up to 12 circuit breakers
• connection for Hayward TurboCell used to generate chlorine
• connection for flow switch used to detect water flow
• input for ORP and pH sensing (HL-CHEM)
• connection for Expansion Panel if more than on OmniLogic is required
Optional accessories (page 1) can expand the functionality of the HLBASE. Determine your needs and select the necessary HLBASE accessories before you
begin the installation.

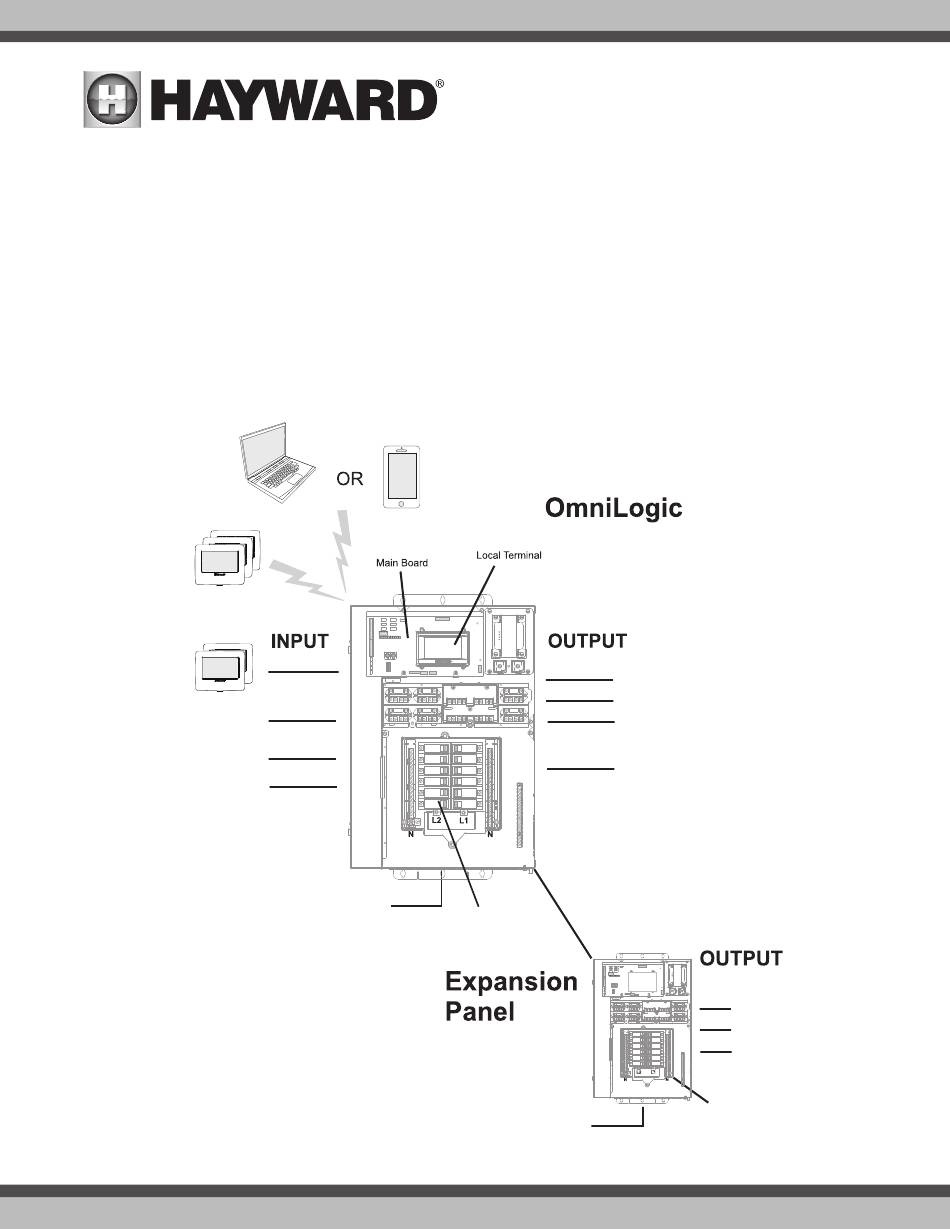

Optional Wireless
Remote Terminals
Optional Wired
Remote Terminals
If using HLIOEXPAND, up to
8 Temperature Sensors
and External Input devices
Optional pH and ORP
Flow Switch
2
Android and IOS
Computers
Mobile devices
240 VAC
Power
Circuit Breaker
Subpanel
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
up to 10 120/240V Relays (using HLRELAYBANK)
up to 8 24V Actuators (using HLIOEXPAND)
up to 8 Heaters and Low
Voltage devices (using HLIOEXPAND)
optional Chlorinator Cell
Circuit Breaker
240 VAC
Subpanel
Power
up to 10 120/240V Relays
up to 8 24V Actuators
Chlorinator Cell
