Axle Mounted Steering And Front Suspension - Cushman SHUTTLE 4X Technician's Repair And Service Manual

Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Rack & Pinion
Unit
Thrust
Washer
King Pin
Tube
Spindle &
Formed
King Pin
Axle
Bushing
FRONT SUSPENSION AND STEERING
Intermediate
Shaft with
U-Joints
Spacer
Tie Rod

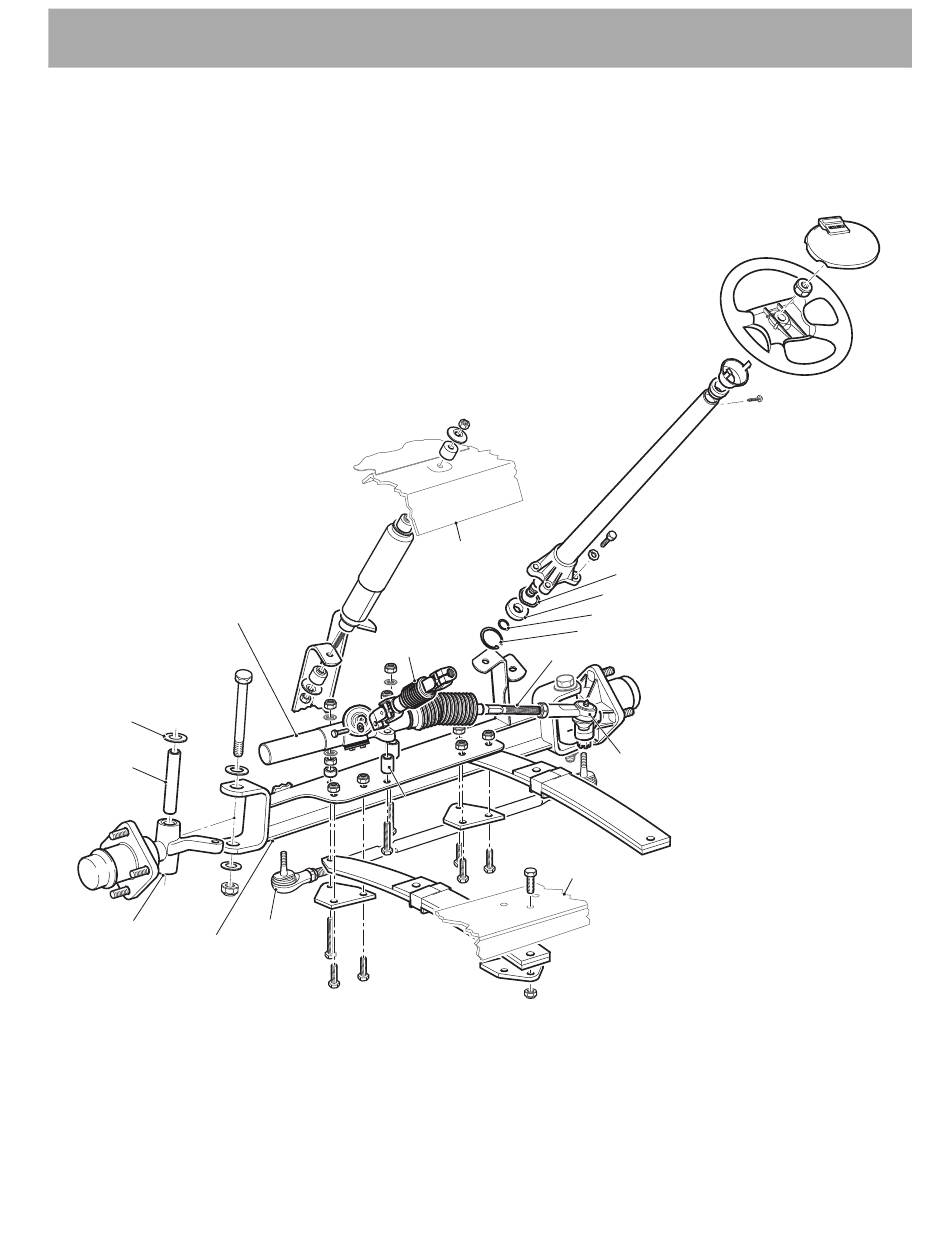

Fig. 1 Axle Mounted Steering and Front Suspension
Repair and Service Manual
Part of
Frame
Wave Washer
Bearing
Outer Snap Ring
Inner Snap Ring
Rack Extension
Rack Ball Joint
Part of Frame
B
B
Page E-1
