2-4 Fixed WiMAX RF Measurements
Adjacent Channel Power Ratio (ACPR)
The ACPR view shows one main channel and two adjacent channels, and it displays the
power levels for each channel (both absolute and relative). The channel spacing matches the
selected bandwidth, and the channels are color coded.
Procedure:
1. Setup the measurement as described in
page 2-4.
2. Press the Measurements main menu key.
3. Press the RF submenu key.
4. Press the ACPR submenu key to activate the measurement. The sample image in
Figure 2-3 may differ from any image on your instrument.

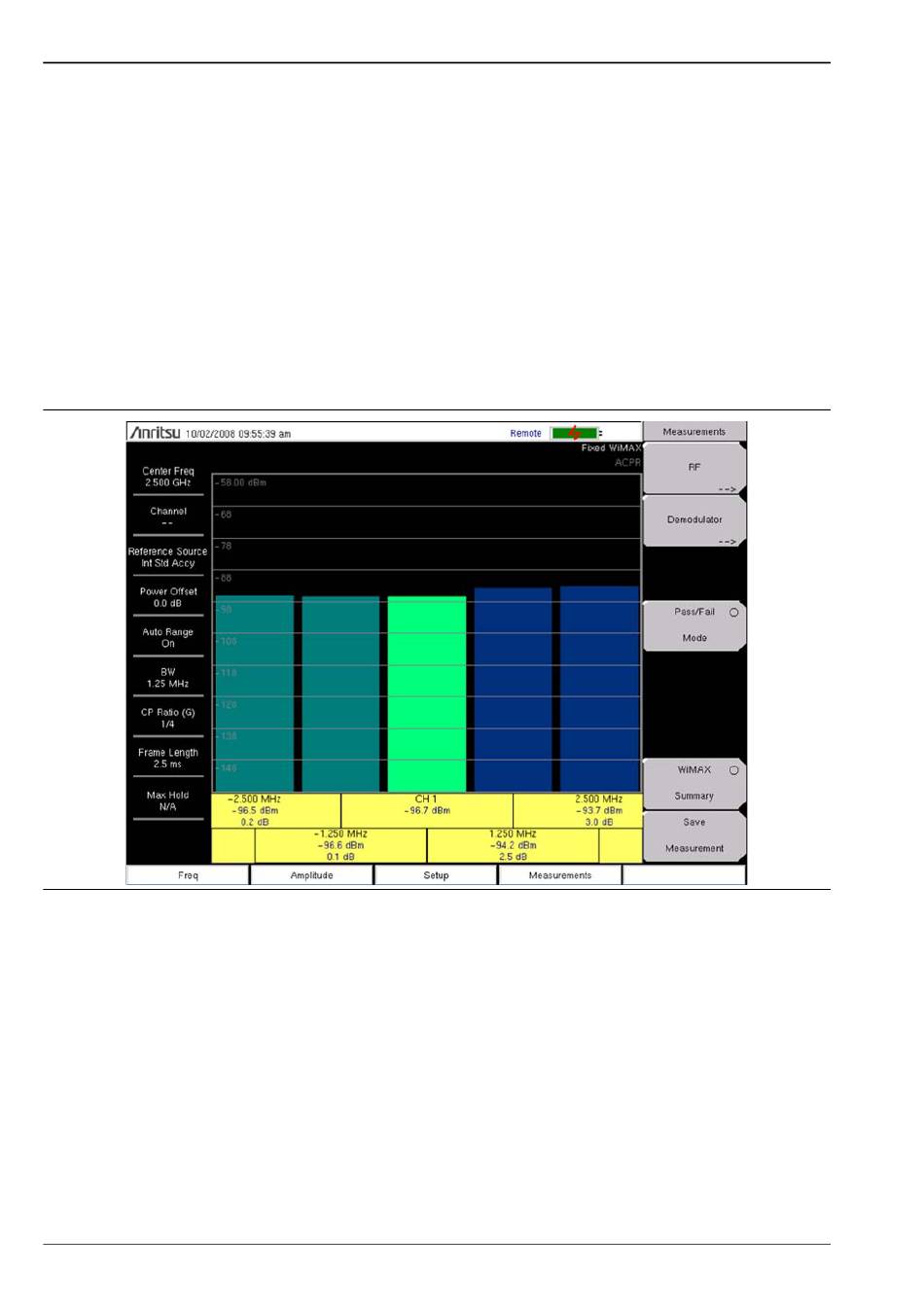

Figure 2-3. ACPR
2-6
Chapter 2 —Fixed WiMAX Signal Analyzer
"Setup for Fixed WiMAX RF Measurements" on
PN: 10580-00236 Rev. D
