CVW SWIFT 800 User Manual page 6

Receiver:3072
Link indicator
Video indicator
Digital LED
CH button Mode button
Battery interface
Mini USB
HDMI Out
Power
ON/OFF
Audio output
Battery
interface (3.5mm)
interface
DC IN
05

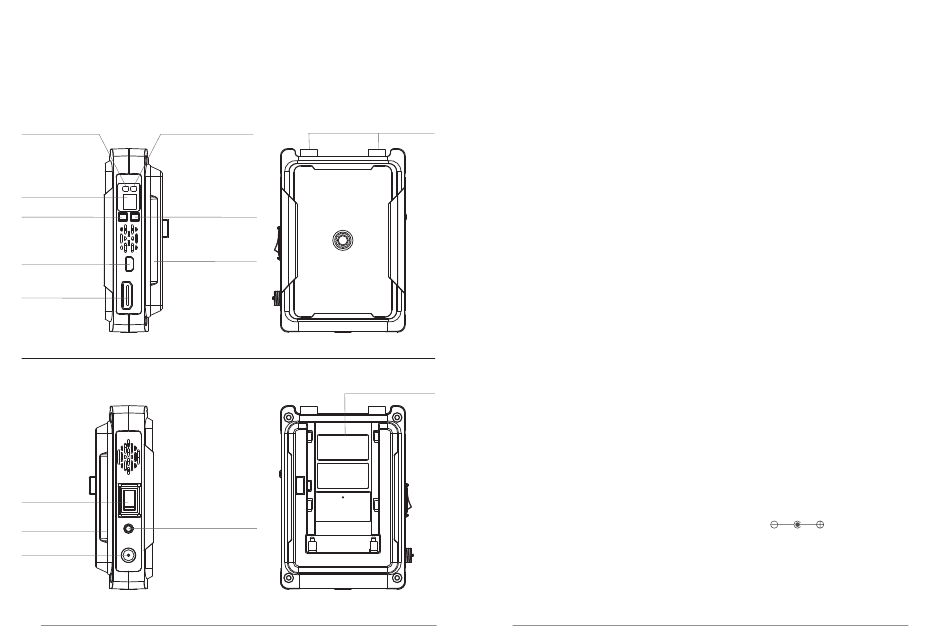

Receiver 3072 Interface Introduction
1. Link indicator:
Used to indicate the network working status of the product.
Antenna interface
2. Video indicator:
Used to indicate the video transmission working status of the product.
3. Digital LED:
Used to display the current working channel of the receiver.
4. CH button:
a: Short press to switch the frequency channel;
b: Press and hold (3s) to turn on / off the fan.
5. Mode button:
Press and hold (3s) for code pairing.
6. Mini USB:
Software Upgrading
7. HDMI Out:
Connect to HD source devices that support HDMI input
(HDTV, and projector)
Battery interface
8. Battery interface:
SONY NP-F970 and compatible battery series.
9.Power switch:
ON / OFF
10.DC IN:
This port is connected to a power adapter or other DC power sources
(such as battery pack, etc.).(SPEC:5.5mm )
