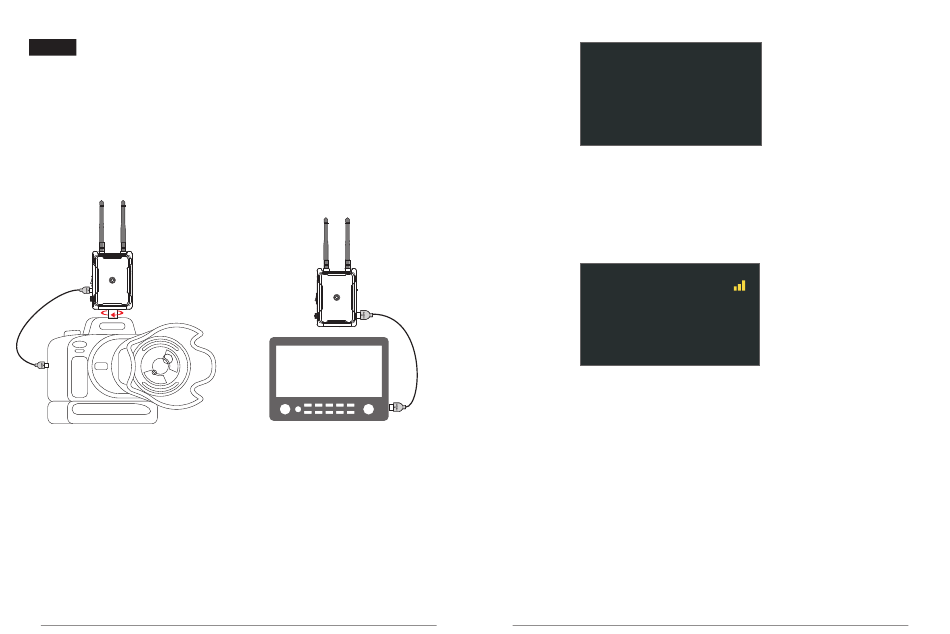

Application Case

1. Set the transmitter and receiver to the same frequency
2. The transmitter and HD source device are connected and powered
by the HDMI cable.
3. The receiver and monitor are connected via an HDMI cable.
:
TX SLR camera + 7072
4. Turn on the receiver and monitor power, and the receiver will automatically
connect to the last successfully connected transmitter. The TV OSD
displays the following figure:
13
channel
.
:
RX Monitor + 3072
Connecting to transmitter...
OSD display
5. Wait 25~35 seconds, the receiver's network indicator and video indicator are
always on, and the monitor displays the camera's monitor screen. The OSD
display is shown in the figure below.
Link up with transmitter,
Please check video source
OSD display
6. Wait for the successful connection of video, the video light will always be on,
and the monitor will normally display the pictures taken by the camera
14
