Range
1000m
Ultra Low
Through
Latency
Wall Ability
Full HD
High Definition
Line In/Out
EU Environmental Protection
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with you local authority or retailer
for recycling advice.
IP
Streaming
User Manual
This user manual applies to:
Transmitter:7074
Receiver:3074
Thunder
User Manual V1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CVW Thunder
Summary of Contents for CVW Thunder
- Page 1 Range 1000m Ultra Low Through Latency Wall Ability Thunder Full HD Streaming High Definition Line In/Out User Manual EU Environmental Protection This user manual applies to: Waste electrical products should not be disposed of with household waste. Transmitter:7074 Please recycle where facilities exist.
-
Page 2: Table Of Contents
Thank you for choosing CVW's professional wireless HD audio Contents and video transmission product. Read the following precautions carefully before using this product: About the User Manual * Do not use this product for a long time in the sun or dusty place. -
Page 3: About The User Manual
If you have any questions or difficulties in using this product, contact the Company or the seller in time. Product Features Thunder is a wireless HD video transmission device with wall-mounted, non-line-of-sight transmission features,supporting up to 1080P/60Hz video resolution. This system is based on 1.4Ghz wireless network technology for transmission. - Page 4 Structure & Interface Transmitter Key Operation TX: 7074 Operation Description Button Antenna Interface Press and hold the When switching to streaming mode, “MODE”button at the TX terminal for about 6s the word “RTSP” will be displayed on MODE the OLED display, and the product will This button does not OLED Display enter streaming mode.

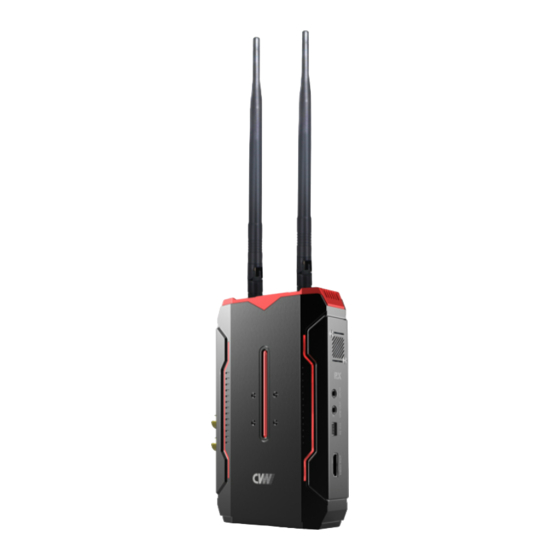

- Page 5 RX: 3074 Receiver Key Operation Operation Description Button Antenna Interface Press and hold the When switching to streaming mode, “MODE”button at the TX terminal for about 6s the word “RTSP” will be displayed on MODE the OLED display, and the product will This button does not OLED Display enter streaming mode.
-
Page 6: Product Installation
Product Installation For transmitter 1. Please install all the antennas on the transmitter (as shown in the picture). 3. Please fix the transmitter via the screw at the bottom or the V-mount at the back, and place it at a height of around 1.5 to 2 meters above floor. - Page 7 Receiver Installation 1. Please install all the antennas on the transmitter (as shown in the picture). 3. Please fix the transmitter via the screw at the bottom or the V-mount at the back, and place it at a height of around 1.5 to 2 meters above floor.
- Page 8 Application Mode Power the Devices Power the transmitter and receiver with AC adapter or battery. Point-to-point mode In point-to-point mode, the video source is sent to the transmitter via HDMI or SDI. The receiver’s OLED screen will display “connecting to transmitter” before The receiver will transmits the video signal to display device via ethernet cable the wireless connection is built .
-
Page 9: Functional Instructions
Functional Instructions Streaming mode In streaming mode, the video source is sent to the transmitter via HDMI or SDI. Tally function The receiver receives the video signal from the transmitter and send it to the The Tally port is a standard 3.5mm headphone port and low level is Switch Console/PC via RJ45 port. - Page 10 Tally Input Interface: Streaming Function R596 Tally1 When using the functions in streaming mode, the transmitter needs to switch to streaming mode. At this time, the word “RTSP” is displayed R587 Tally2 on the transmitter’s OLED display, the SDI and HDMI at the receiver have no video output, and the image is transmitted to the streaming media software through the LAN port of the receiver for decoding display.
- Page 11 Open internet browser, and enter transmitter’s encoder or receiver’s decoder IP address in the address bar to enter the parameter settings page. All transmitter’s encoder and receiver’s decoders need to be configured one by one, please refer to the following configuration case. Transmitter Encoder Case (transmitter 2): IP ETHADDR Transmitter IP address(192.168.1.111~114).
- Page 12 Product Specifications Cautions ITEM TX:7041 RX:3041 1. Environmental factors that affect wireless transmission Frequency 1427.9~1447.9MHz The following scenarios, which may result in pauses or noises, can be problematic for the device. Antenna Two antennas 1T1R+1R Protocol mode a. Walls, large metal plates can pose a problem for the device. Avoid them if Transmission Power 33dBm possible or place the device in an optimal spot.
- Page 13 Troubleshooting strength symbol does not appear. Check by following the instructions in Section 16.1. If the signal strength symbol does appear but the VIDEO symbol doesn’t, please check the video source and the corresponding 1. Mosaic or lagging on the screen SDI/HDMI cables;...
