SWIFT 800
HDMI Wireless Video Transmission
USER MANUAL
This user manual applies to:
Transmitter: 7072
Receiver: 3072
Version: 2.0
2019.09.03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CVW SWIFT 800
Summary of Contents for CVW SWIFT 800
- Page 1 SWIFT 800 HDMI Wireless Video Transmission USER MANUAL SHENZHEN CRYSTAL VIDEO TECHNOLOGY CO.,LTD ADD: F12, F518 Idea Land, Baoyuan Road, Baoan Central Area,Shenzhen, China This user manual applies to: Post code：518102 Fax: +86-755-29188427 Transmitter: 7072 Tel: +86-755-27750518-6652 www.cv-hd.com Receiver: 3072 E-mail: Sales@cv-hd.com...
- Page 2 Optimal range between transmitter and receiver is between 1 meter and 30 meters with in line of sight indoor...
-
Page 3: Table Of Contents
CONTENTS Foreword Brief Introduction Features Packing List Structure & Interface The Transmitter 7072 The Receiver 3072 Product Installation Digital Tube Status Indication Operating Instructions Application Case Product Specifications Troubleshooting... -
Page 4: Foreword
Wireless transmission distance up to 800ft; Foreword Support P frame / I frame adaptation to ensure ultra-low latency of - Please read this manual carefully before you use this product and retain it video transmission; properly for future reference Support low-battery alarm function of the battery; - If there is any doubt or difficulty in the process of product usage, please feel Full hardware design, no need to install software, PNP, free to contact us or the dealer. -
Page 5: Structure & Interface

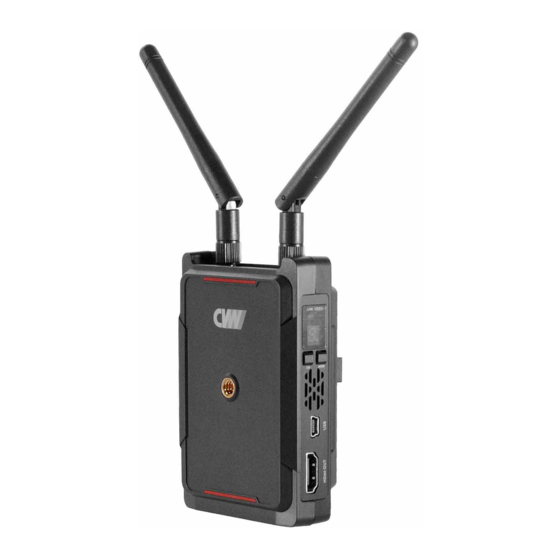

Transmitter 7072 Interface Introduction Structure & Interface Transmitter:7072 1. Link indicator: Used to indicate the network working status of the product. 2. Video indicator: Used to indicate the video transmission working status of the product. Link indicator Video indicator Antenna interface 3. - Page 6 Receiver 3072 Interface Introduction Receiver:3072 1. Link indicator: Used to indicate the network working status of the product. 2. Video indicator: Link indicator Video indicator Antenna interface Used to indicate the video transmission working status of the product. 3. Digital LED: Used to display the current working channel of the receiver.
-
Page 7: Product Installation
Product Installation 3. The transmitter is mounted on a SLR camera and rotated clockwise. Connect the HDMI interface of the transmitter to the HDMI interface of the 7072 Wireless HD Transmitter SLR camera via the HDMI cable (as shown in the figure). Installation Instructions 4. - Page 8 3072 Wireless HD Receiver 3. Install the receiver on the monitor. Connect the HDMI cable. Installation Instructions Turn on the power (receiver and monitor power). 1. Install the antennas on the receiver, turn it clockwise, and tighten the antennas. Adjust the direction of two antennas to make them in a fan shape with 90 degree angle (as shown in the figure).
- Page 9 Application Case LED and Indicator Transmitter / Receiver channel 1. Set the transmitter and receiver to the same frequency 2. Connect the transmitter with the DLSR by HDMI cable. LINK indicator VIDEO indicator 3. Connect the receiver with the monitor by HDMI cable. LED display Decimal point LED display: frequency channel 1~9, A(10), b(11)
- Page 10 5. Waiting for 25-35 seconds, LINK indicator is on, and the connection between Product Specifications the transmitter and the receiver is built successfully 6. Waiting for 7 seconds, VIDEO indicator is on, the monitor displays 7072 3072 Item the live video from DSLR. 5180/5240/5765/5805 Frequency If the transmitter and the receiver work under RTSP mode, user can use...
- Page 11 Troubleshooting Issue Issue Troubles & Possible Reasons Solution Troubles & Possible Reasons Solution The transmitter or receiver is not Insert the transmitter or receiver into the base The transmitter is not powered. Turn on the transmitter power. placed upright. and keep it upright. The transmitter or receiver is not Insert the transmitter or receiver TV images...
- Page 12 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
