Structure & Interface

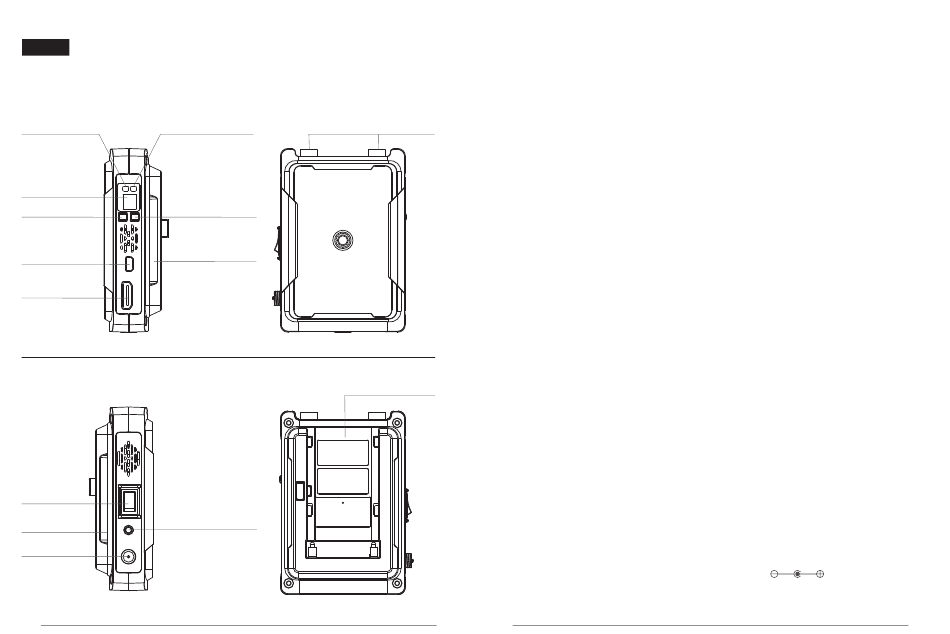

Transmitter:7072
Link indicator
Video indicator
Digital LED
CH button Mode button
Battery interface
Mini USB
HDMI In
Power
ON/OFF
Audio input
Battery
interface (3.5mm)
interface
DC IN
03
Transmitter 7072 Interface Introduction
1. Link indicator:
Used to indicate the network working status of the product.
2. Video indicator:
Antenna interface
Used to indicate the video transmission working status of the product.
3. Digital LED:
Used to display the current working status and working channel
of the transmitter.
4. CH button:
a: Short press to switch the frequency(channels) channel;
b: Press and hold (3s) to turn on / off the fan.
5. Mode button:
Short press for audio switch; press and hold (3s) for code pairing.
6. Mini USB:
Software Upgrading
7. HDMI interface:
Connect to a HD source device that supports HDMI output.
Battery interface
8. Battery interface:
SONY NP-F970 and compatible battery series
9. Power switch:
ON / OFF
10. Audio input interface (3.5mm):
Connect to an active microphone.
11. DC IN：
This port is connected to a power adapter or other DC power sources
(such as battery pack, etc.).(SPEC: 5.5mm )
