Summary of Contents for Anolis ArcPar S1

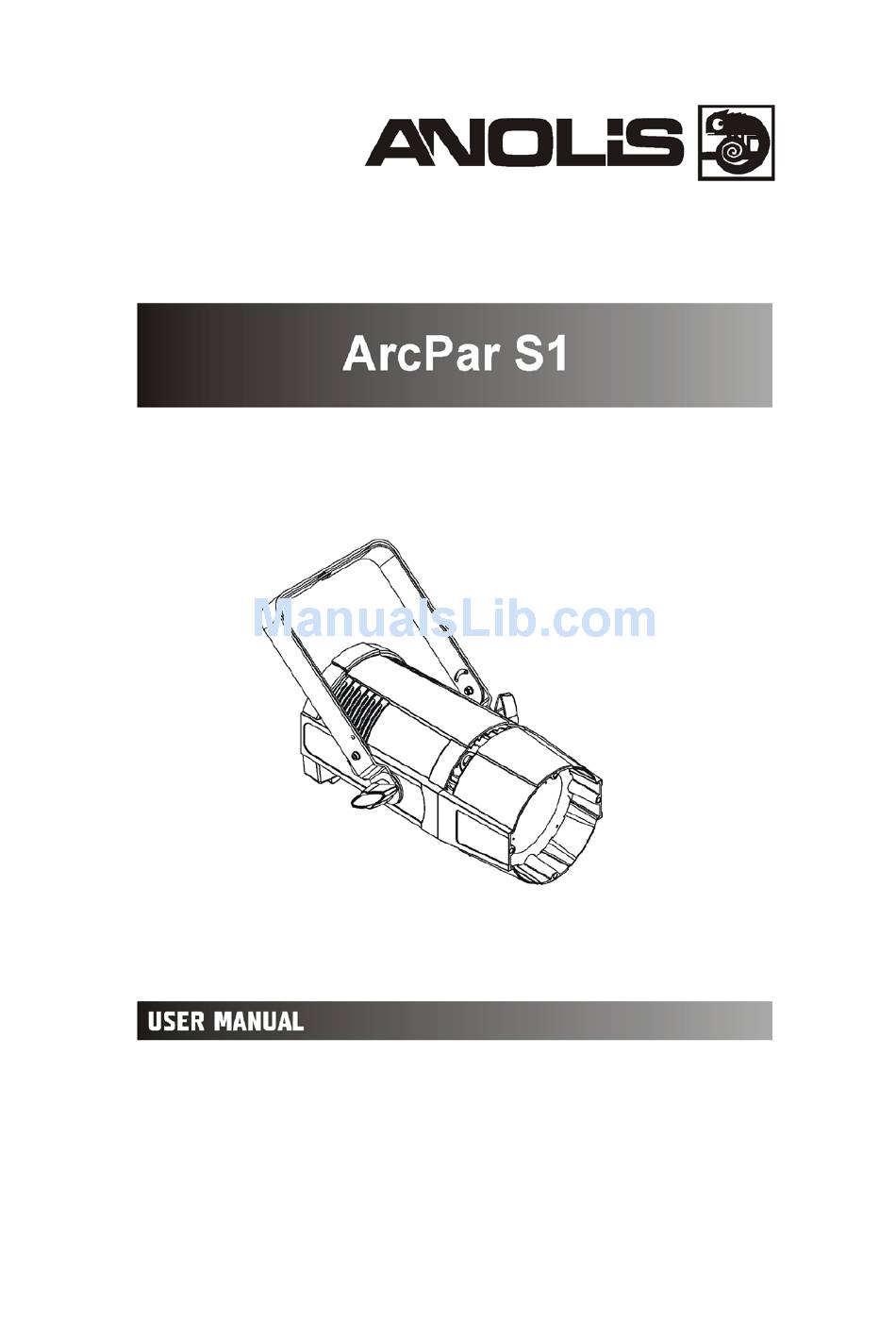

- Page 1 Version 1.0...
-
Page 2: Table Of Contents
3.5. Wireless DMX operation .................. 3.6. Stand-alone and Master/Slave operation ..............3 4. Control menu map ......................14 5. ArcPar S1 - DMX chart ....................16 6. Control menu ....................... 17 6. Addressing and master/slave setting (DMXA) ............7 6.2 Fixture information (Info) .................. -
Page 3: Safety Instructions
Please consider that damages caused by manual modifications to the device are not subject to warranty. The ArcPar S1 was designed for indoor use and it is intended for professional application only. It is not for household use. - Page 4 This device is for professional use only. It is not for household use. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating.
-
Page 5: Fixture Exterior View
2. Fixture exterior view 1 - Mounting yoke 2 - Tilt locks 3 - Optical system 4 - DMX OUT 5 - DMX IN 6 - Fuse holder 7 - Mains IN 8 - Mains OUT 9 - Display and control buttons 10 - Safety wire attachment point... -
Page 6: Installation
This device falls under class one and must be earthed (grounded)! Design of the ArcPar S1 allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Technical specifications “... -
Page 7: Installing Barndoors And The Gel Frame
1.Disconnect the fixture from mains. 2. Screw the accessory frame adaptor (1) on the ArcPar S1 housing with the four screws M4x8 (2) and unlock the spring lock (3) via pushing this spring lock as show red arrows on the picture. - Page 8 5. Secure both accessories by moving the spring lock (3) up as shows the red arrow on the picture. Note: the barndoors can be rotated to desired position and secured in this position via the securing screw (6).
-
Page 9: Rigging The Fixture
3.3 Rigging the fixture A structure intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulation. - Page 10 For overhead installation, install a safety wire that can hold at least 10 times the weight of the fixture. Use only safety wire with screw-on carabine. Fasten the safety cable in the attachment point and around the truss as shown on the picture below. 1-Clamp 2-Trust 3-Safety wire...
-
Page 11: Dmx-5 Connection
3.4 DMX-512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. DMX output DMX input XLR socket:... -
Page 12: Wireless Dmx Operation
3.5. Wireless DMX operation The external Robe Wireless CRMX-LB100 module allows receiving wireless DMX. This device is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. Robe Wireless CRMX-LB100 1 - 5-pin XLR (female) 2 - Locating pin 3 - Lock... -
Page 13: Stand-Alone And Master/Slave Operation
3.6. Stand-alone and Master/Slave operation The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. To set the program to be played, see the "Mast/Sla" menu (DMXA ---> Mast/Sla). The Stand-alone operation can be applied to the single fixture or to multiple fixtures operating synchronously. - Page 14 4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMXA 00-55 DMX Pres Mode 1 Mode Mode 3 Mast/Sla Master Play Prog Play Prog Play Prog 3 Slave Play Master...
- Page 15 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Test Pr Edit Prog Step Stro. Prog Prog 3 Step 40 F.Tim 0-5.5 S.Tim 0-5.5 COPY Prg En -40 Special RDM Low RDM Hight Wireless Stat Unlink...
-
Page 16: Arcpar S1 - Dmx Chart
5. ArcPar S1 - DMX chart Version 1.2 Mode 1- Basic 8 bit, Mode 2- Extended 16bit, Mode 3 - Strobe mode Mode/Channel Value Function Type of control Shutter/Strobe 0-3 Shutter closed step 3-63 Shutter open step 64-95 Strobe effect from proportional slow-->... -
Page 17: Control Menu
Set DMXA- Use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the ArcPar S1 will respond to the controller. If you set, for example, the address 12, the ArcPar S1 will use channels 12 - 14 for control (if Mode 3 is selected). -
Page 18: Personality (Pers)
ArcPar S1. 6.6 Stand-alone (St Alone) The ArcPar S1 offers three user-editable programs (Prog 1-Prog 3), each up to 40 steps. Music T - Music trigger. Select this function to enable the sound control of the running program via the built-in microphone. -
Page 19: Special Functions (Special)
Pr Edit - Editing program. Select this menu to edit or create the program. The ArcPar S1 has three user- editable programs, each up to 40 steps. Each program step has a step time - during which effects last in the current step and a fade time- during which effects move to new positions. -
Page 20: Rdm
DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for the ArcPar S1 is the following. Parameter ID Discovery command SET command... -
Page 21: Error And Information Messages
8. Error and information messages Short Err The message informs you that short circuit has occured on the LED PCB. 9. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50-60Hz Fuse:........T 3.15A/250V ~ Max. power consumption *:..150W@230V, I=0.65A, power factor=0.94 *Allow for a deviation of +/-5% Mains input: 16A max. - Page 22 Rigging Mounting horizontally or vertically via mounting yoke (360° tilt range) Temperatures Maximum ambient temperature : 40° C Maximum surface temperature : 80° C (at LEDs heat sink) Distances Min. distance from flammable surfaces: 0.4 m Min. distance to lighted object: 0.8 m Total heat dissipation 680 BTU/h (calculated) Weight (net):...
-
Page 23: Optional Accessories
Optional accessories P/N 10980127) Robe Wireless CRMX-LB100 (P/N 10980206) Barndoor for Parfect 100 white (barndoor with aperture 157x157 mm) (P/N 10980189) Barndoor for Parfect 100 black (barndoor with aperture 157x157 mm) (P/N305 73) Mains Cable PowerCon In/open ended, 2m (P/N 305 74) Mains Cable PowerCon In/Schuko, 2m (P/N 305 75) Mains Cable PowerCon In/CEE 16A, 2m (P/N 305 76) Mains Cable PowerCon In/US, 2m (P/N 305 77) Daisy Chain PowerCon In/Out, EU, 2m... -
Page 24: Maintenance And Cleaning
The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet. More complicated maintenance and service operations are only to be carried out by authorized distributors. Disassembly of the ArcPar S1: Important: The correct order of parts at the mounting yoke assembly is: insertion piece+rubber washer+yoke+metal washer+tilt lock (on both sides of the device).
