Anolis ArcSource 96 Integral User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArcSource 96 Integral and is the answer not in the manual?

Questions and answers

Related Manuals for Anolis ArcSource 96 Integral

Summary of Contents for Anolis ArcSource 96 Integral

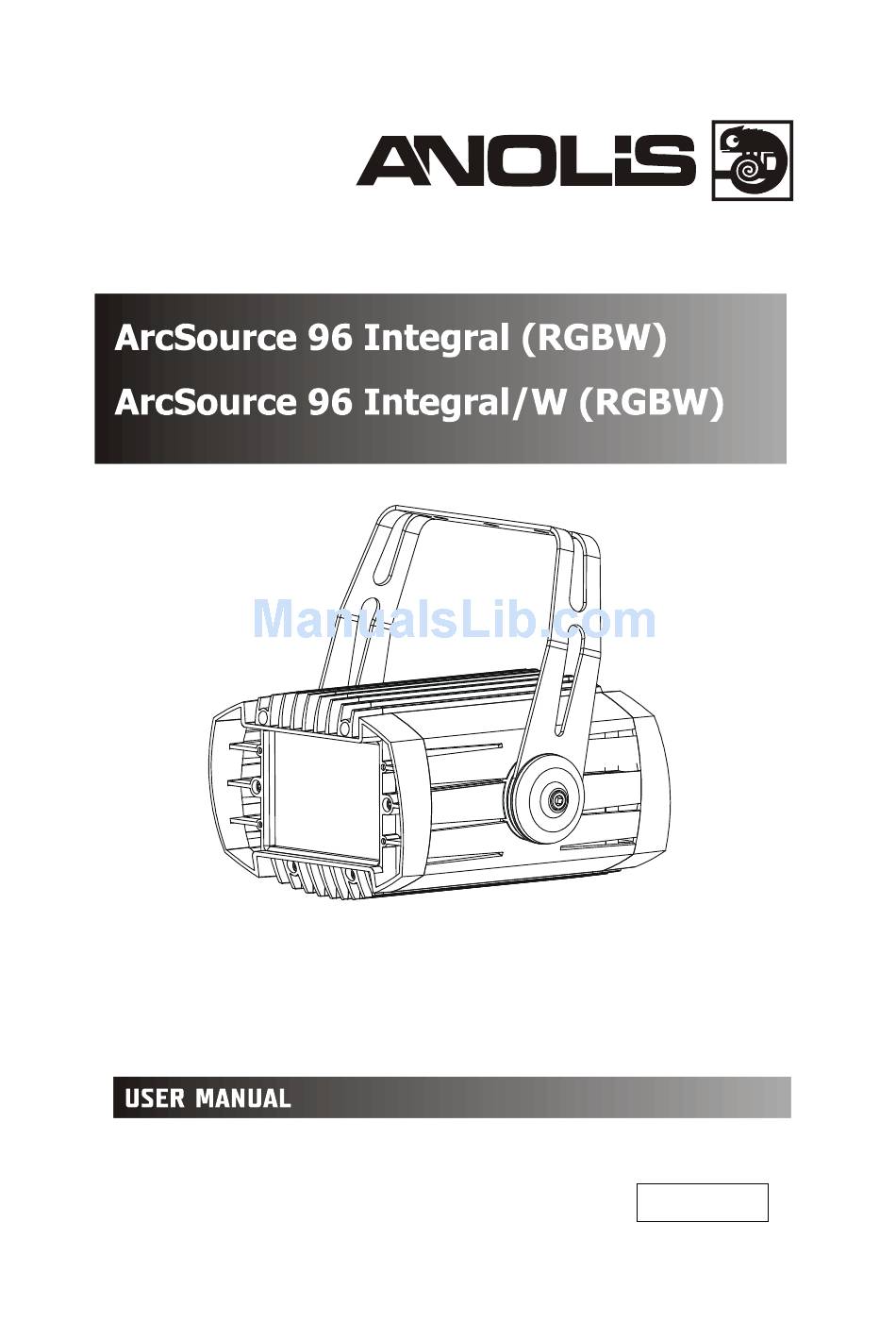

  • Page 1 Version 1.6...

  • Page 2: Table Of Contents

    3.4 DMX 512 connection ............................8 3.5 Master/slave connection ............................8 3.6 Stand-alone operation ............................8 4. ArcSource 96 Integral (RGBCW) - DMX protocol ...................... 10 5. Control menu map ..............................12 6. Fixture menu ................................14 6.1 Fixture Address ..............................15 6.2 Fixture information .............................

  • Page 3: Safety Instructions

    ArcSource 96 Integral (RGBW) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcSource 96 Integral ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
  • Page 4 ArcSource 96 Integral (RGBW) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.

  • Page 5: Fixture Exterior View

    ArcSource 96 Integral (RGBW) 2. Fixture exterior view 1. Lens array 2. Radiator 3. Mounting bracket 4. Tilt-lock screw 5. Power/data cable 6. Control board 7.Power cable 8. Antenna 3. Installation 3.1 Mounting the fixture The fixture can be rigged in any orientation on a wall (truss) without altering its operation characteristics. The mounting bracket allows to adjust desired fixture position.

  • Page 6: Installation Of The Barn-Doors

    ArcSource 96 Integral (RGBW) Ensure that the structure to which you are attaching the fixture is secure Caution: Overhead installation requires extensive experience. Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the device and consult installation with an expert.

  • Page 7: Connection To The Mains

    ArcSource 96 Integral. The ArcSource 96 Integral is equiped with with a 5-cored power/data cable. The 3 cores serve for the power supply and next 2 shielded cores are intended for DMX connection.

  • Page 8: Dmx 512 Connection

    ArcSource 96 Integral (RGBW) Core (Eu) Core (US) Connection Plug Terminal Marking Brown Black Live Light blue White Neutral Yellow/Green Green Earth This device falls under class one and must be grounded! The power cable is connected to a junction box as shown on the picture below.
  • Page 9 ArcSource 96 Integral (RGBW) Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them is set as a master (master mode) and the rest as the slaves (slave mode). To set the fixture as the master or slave, see the "Fixture Address" (menu "A001").

  • Page 10: Arcsource 96 Integral (Rgbcw) - Dmx Protocol

    ArcSource 96 Integral (RGBW) 4. ArcSource 96 Integral (RGBCW) - DMX protocol Version 1.1 Mode/Channel Value Function Type of control Red LEDs - both LED arrays 0 - 255 Red LEDs saturation control (0-100%) proportional Green LEDs - both LED arrays...
  • Page 11 ArcSource 96 Integral (RGBW) 136 - 174 Red=full, Green down, Blue=0, White=0 proportional Red(Red=full, Green=0, Blue=0, White=0) step 176 -214 Red=full, Green=0, Blue up, White=0 proportional Magenta (Red=full, Green=0, Blue=full, White=0) step Mode/Channel Value Function Type of control Colour macros – both LED arrays...

  • Page 12: Control Menu Map

    ArcSource 96 Integral (RGBW) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. FuLL totL rSEt...
  • Page 13 ArcSource 96 Integral (RGBW) turn Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 tEM.U. °C, °F bALA On, Off C.bAL. 0..200..255 GrEn 0..255 bLuE 0..237..255 Stor LOAd FuLL In.Po. rEd1 0-255 F.dim...

  • Page 14: Fixture Menu

    ArcSource 96 Integral (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 PrG.3 Edit PrG.1 St.01 P.End 1-68 rEd1 0-255 PrG.3 St.68 S.tim. 0-25.5 sec CoPY SPEC. rdML rdMH rAdI* r.InF.

  • Page 15: Fixture Address

    ArcSource 96 Integral has been fabricated. rESEt - the function shows the number of the operation hours that the ArcSource 96 Integral has been powered on in the “FuLL” mode since the counter was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN buttons and at the same time press the ENTER button.

  • Page 16: Personality

    --- Balance Use this menu item to enable (On) or disable (Off) the white balance which is set in the “White colour balance“ menu below. I f this function is set off, the ArcSource 96 Integral will use maximum values (255) of saturation for red, green and blue colour.

  • Page 17: Manual Mode

    6. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the ArcSource 96 Integral. 6.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture.
  • Page 18 ArcSource 96 Integral (RGBW) Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them is set as a master (“MASt“) and the rest as the slaves (“SLA“). Up to 32 fixtures can be connected in a master/slave chain.

  • Page 19: Special Functions

    To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from theAnolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.

  • Page 20: Rdm

    DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for ArcSource 96 Integral is the following.

  • Page 21: Error And Information Messages

    ArcSource 96 Integral (RGBW) Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation.

  • Page 22: Wireless Dmx Operation

    ArcSource 96 Integral (RGBW) 9. Wireless DMX operation The wireless version of the ArcSource 96 is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. For setting DMX address, selecting DMX mode and for another settings you can use Robe Universal Interface WTX.

  • Page 23: Technical Specifications

    ArcSource 96 Integral (RGBW) 10. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T3.15 A H • Power consumption: Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full)
  • Page 24 ArcSource 96 Integral (RGBW) Dimmer • Smooth 16-bit dimming from 0 - 100 % Connection • Power/data cable: Li9YCHY Cable 3xAWG16+1x (2xAWG24 Shielded and Jacketed) • junction box Rigging • Via mounting bracket Temperatures • Maximum ambient temperature: 40° C •...
  • Page 25 ArcSource 96 Integral (RGBW) Weight • 11kg Removable floor stand Weight • 1.2 kg Junction box Protection factor • IP 67 fixture, IP 66 junction box Included items • 1 x ArcSource 96 (ArcSource 96/W) • 1 x Junction box (Junction box/W)
  • Page 26 ArcSource 96 Integral (RGBW) Optional accessories • Barn-doors in silver colour (No. 10980094) • Removable floor stand in silver colour (No.10980070) • Eggcrate top hat module in silver colour (without lenses) (No. 10980093) • Top hat in silver colour (No.10980079) •...

  • Page 27: Cleaning And Maintenance

    ArcSource 96 Integral (RGBW) 11. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent.
  • Page 28 ArcSource 96 Integral (RGBW)
