Anolis ArcPad 48 Integral User Manual

Rgbw
Hide thumbs Also See for ArcPad 48 Integral:
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArcPad 48 Integral and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anolis ArcPad 48 Integral

Summary of Contents for Anolis ArcPad 48 Integral

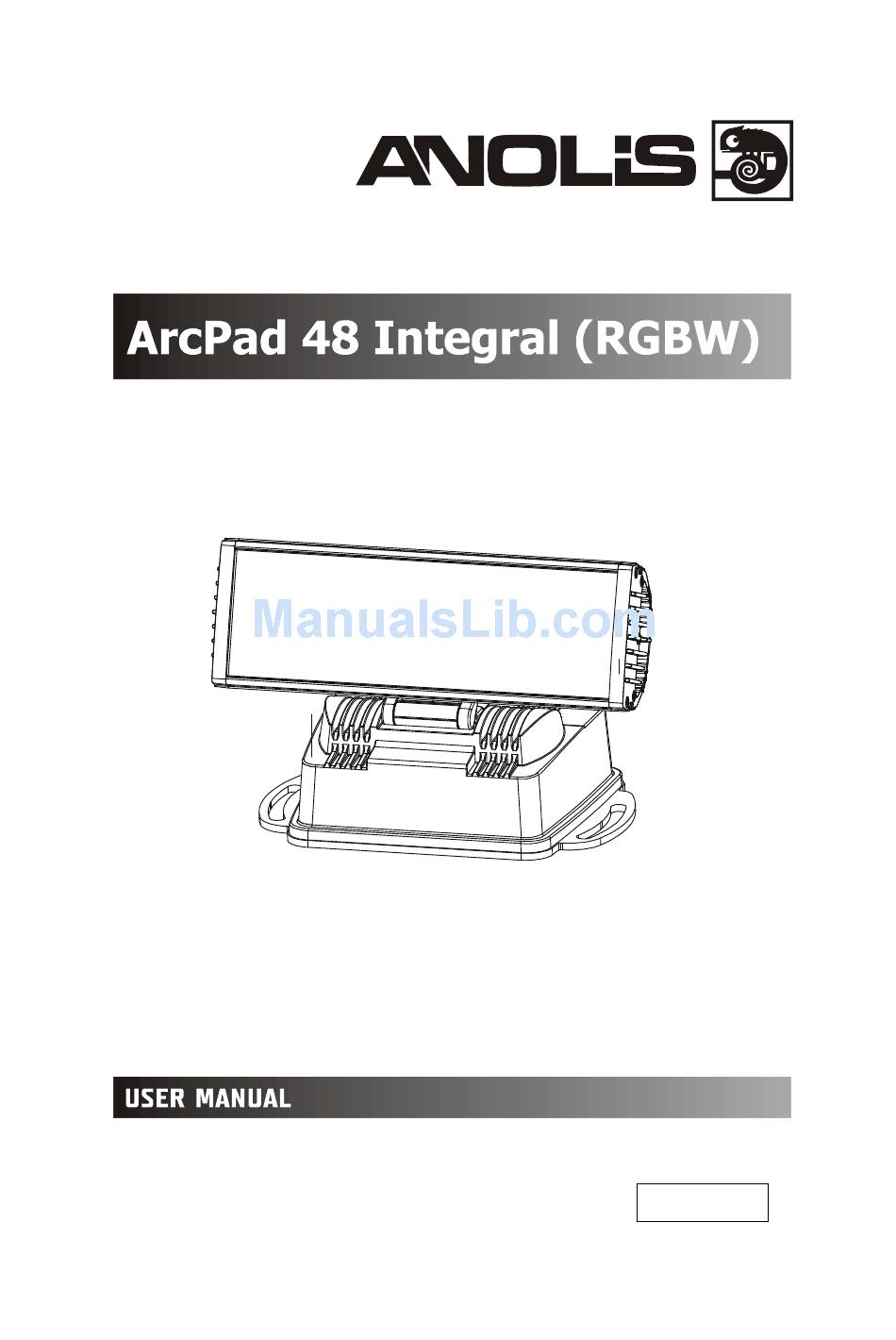

  • Page 1 Version 1.5...

  • Page 2: Table Of Contents

    3.5 DMX 512 connection ............................10 3.6 Master/slave connection ............................ 10 3.7 Stand-alone operation ............................10 4. ArcPad 48 Integral (RGBCW) - DMX protocol ......................11 5. Control menu map ..............................12 6. Fixture menu ................................14 6.1 Fixture Address ..............................15 6.2 Fixture information .............................

  • Page 3: Safety Instructions

    ArcPad 48 Integral (RGBW) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad 48 Integral ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
  • Page 4 ArcPad 48 Integral (RGBW) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.

  • Page 5: Fixture Exterior View

    3. Installation 3.1 Mounting the fixture The ArcPad 48 Integral can be arranged in any position orientation.The ArcPpad 48 Integral´s radiator with LEDs is mounted on an adjustable bracket for “tilt” adjustment into many positions: Two slots (8.5mm wide) in the fixture base serve for mounting on the non-flammable flat surface:...

  • Page 6: Connection To The Mains

    Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulation. The ArcPad 48 Integral is equiped with with a 5-cored power/data cable. The 3 cores serve for the power supply and next 2 shielded cores are intended for DMX connection.
  • Page 7 ArcPad 48 Integral (RGBW)

  • Page 8: Installation Of The Barn-Doors

    ArcPad 48 Integral (RGBW) 3.3 Installation of the barn-doors You can install the barn-doors to better define illuminated surface. To install the barn-door module: 1. Disconnect the fixture from the mains. 2. Put the top edge of the barn-doors module into the second groove on the top side of the radiator ( detail A) and the bottom edge into the second groove on the bottom side of the radiator and tighten four locking screws M2 to secure this barn-doors module on the radiator.

  • Page 9: Setting And Control

    ArcPad 48 Integral (RGBW) 3.4 Setting and control For setting DMX address, selecting DMX mode and for another settings you need either Robe Universal Interface or the RDM Communicator. Please see the Robe Universal Interface or RDM Communicator user manuals to get more information about this products.

  • Page 10: Dmx 512 Connection

    ArcPad 48 Integral (RGBW) 3.5 DMX 512 connection To build a DMX chain 1. Connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain. 2. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture.

  • Page 11: Arcpad 48 Integral (Rgbcw) - Dmx Protocol

    ArcPad 48 Integral (RGBW) 4. ArcPad 48 Integral (RGBCW) - DMX protocol Version 1.1 Mode/Channel Value Function Type of control Red LEDs 0 - 255 Red LEDs saturation control (0-100%) proportional Green LEDs 0 - 255 Green LEDs saturation control (0-100%)

  • Page 12: Control Menu Map

    ArcPad 48 Integral (RGBW) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. FuLL totL rSEt...
  • Page 13 ArcPad 48 Integral (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 bLuE 0..237..255 Stor LOAd FuLL In.Po. rEd1 0-255 F.dim 0-255 Stor. dFSE MAn.M. PrE.C. rEd1 rE.01..rE.03 dimr di.01...di.06 Man.C.

  • Page 14: Fixture Menu

    ArcPad 48 Integral (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 S.tim. 0-25.5 sec CoPY SPEC. rdML rdMH Adj. rEd1 F.dim CaL.U. rEd1 Stor. uPd.M. 6. Fixture menu RDM communicator: Connect the RDM communicator to the fixture and from the menu “Control”...

  • Page 15: Fixture Address

    ArcPad 48 Integral (RGBW) The Remote LED Display window will appear. Now you can fullly control the fixture using the UP, Down, Enter, Escape and Reset buttons. 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave).

  • Page 16: Fixture Information

    ArcPad 48 Integral has been fabricated. rESEt - the function shows the number of the operation hours that the ArcPad 48 Integral has been powered on in the “FuLL” mode since the counter was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN buttons and at the same time press the ENTER button.

  • Page 17: Personality

    --- Balance. Use this menu item to enable (On) or disable (Off) the white balance which is set in the “White colour balance“ menu below. I f this function is set off, the ArcPad 48 Integral will use maximum values (255) of saturation for red, green and blue colour.

  • Page 18: Manual Mode

    6. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the ArcPad 48 Integral. 6.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture.

  • Page 19: Special Functions

    ArcPad 48 Integral (RGBW) PLAY --- Playing program. By enter to this menu a complete overview of all programs is offered, from which the program to be run can be selected. 1. Use the UP/DOWN buttons to find “ St.AL.“ menu.
  • Page 20 To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from theAnolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.

  • Page 21: Rdm

    ArcPad 48 Integral (RGBW) Note: If you do not want to continue in software update, you have to switch off and on the fixture to escape from this menu. 8. After switching the fixture to the update mode cancel the RDM-Network program.

  • Page 22: Error And Information Messages

    ArcPad 48 Integral (RGBW) DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. 8. Error and information messages t.M.Er.(Temperature measuring error)

  • Page 23: Technical Specifications

    ArcPad 48 Integral (RGBW) 9. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T 1.25 A H • Power consumption: Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full)
  • Page 24 ArcPad 48 Integral (RGBW) Rigging • Via two slots in the fixture base Temperatures • Maximum ambient temperature: 40° C • Maximum housing temperature: 80° C Dimensions (mm) ArcPad 48 integral Junction box...
  • Page 25 Protection factor • IP 67 fixture, IP66 junction box Included items • 1 x ArcPad 48 Integral • 1 x Junction box (No.99012672) • 1 x User manual • 1 x Gasket of cable grommet M20, PF ½ (P.N. 1305 1388) Optional accessories •...

  • Page 26: Cleaning And Maintenance

    ArcPad 48 Integral (RGBW) 10. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent.
  • Page 27 ArcPad 48 Integral (RGBW)
