The module generate colored light by means of RGBW LED multichip.The product was designed for exterior
use and it is ideal for locations where signaling,directional or effect lighting is required.
1.Attention
Consider the respective national norms during the installation!
Do not install the unit near naked flames
Avoid using the unit in locations subject to possible impacts
Do not attempt to dismantle or modify the unit
2.Installation
The ArcSource unit has to be connected to the power source of type of LVLE acording to the specifications
stated in the chapter "Technical specifications".
3. Connection
ArcSource 1 MC Short
User instructions
ArcSource 1 MC Short
Avoid looking directly into the LED light beam at close range!
CAUTION!
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ArcSource 1 MC Short and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anolis ArcSource 1 MC Short

Summary of Contents for Anolis ArcSource 1 MC Short

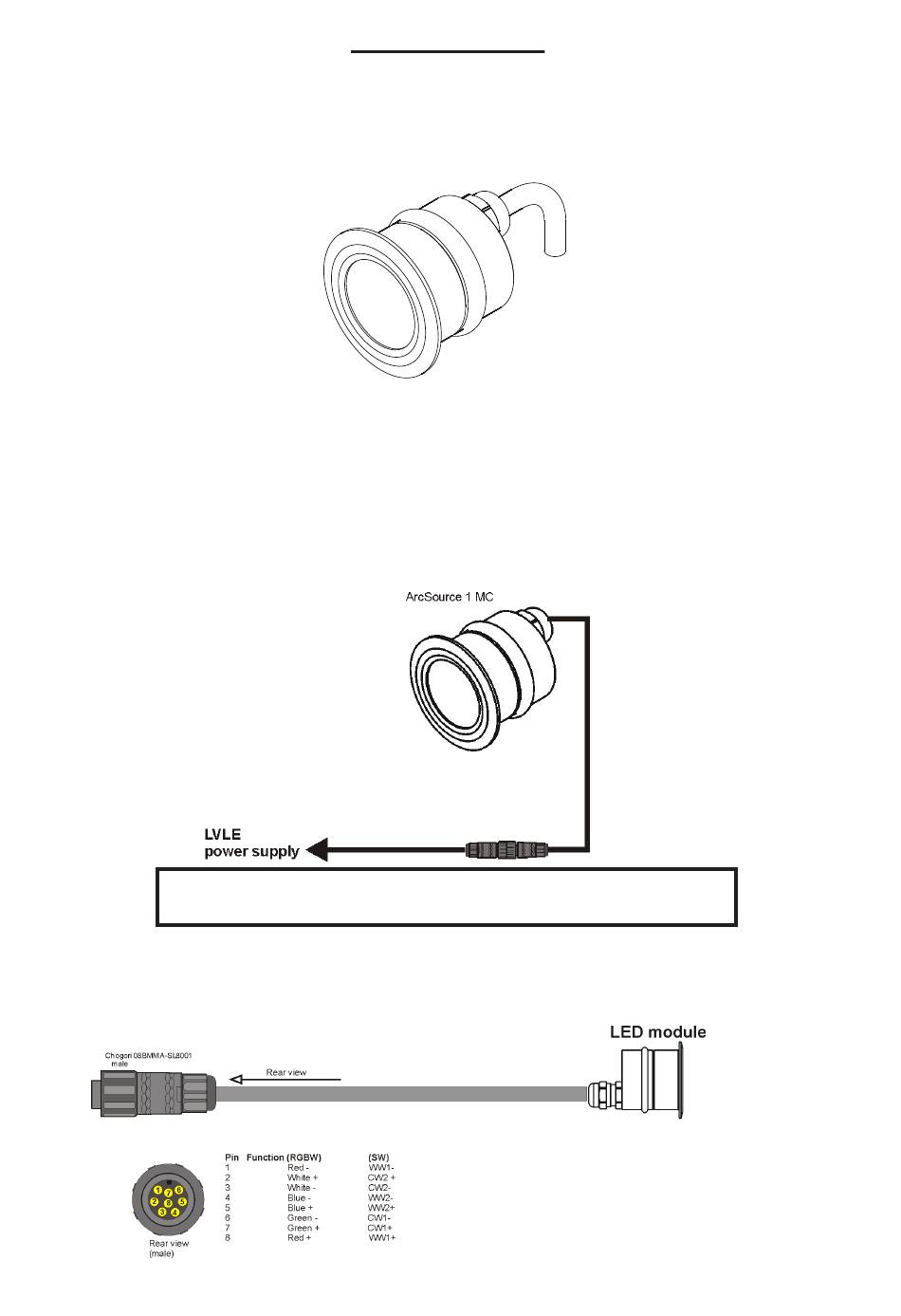

  • Page 1 User instructions ArcSource 1 MC Short The module generate colored light by means of RGBW LED multichip.The product was designed for exterior use and it is ideal for locations where signaling,directional or effect lighting is required. 1.Attention Consider the respective national norms during the installation!
