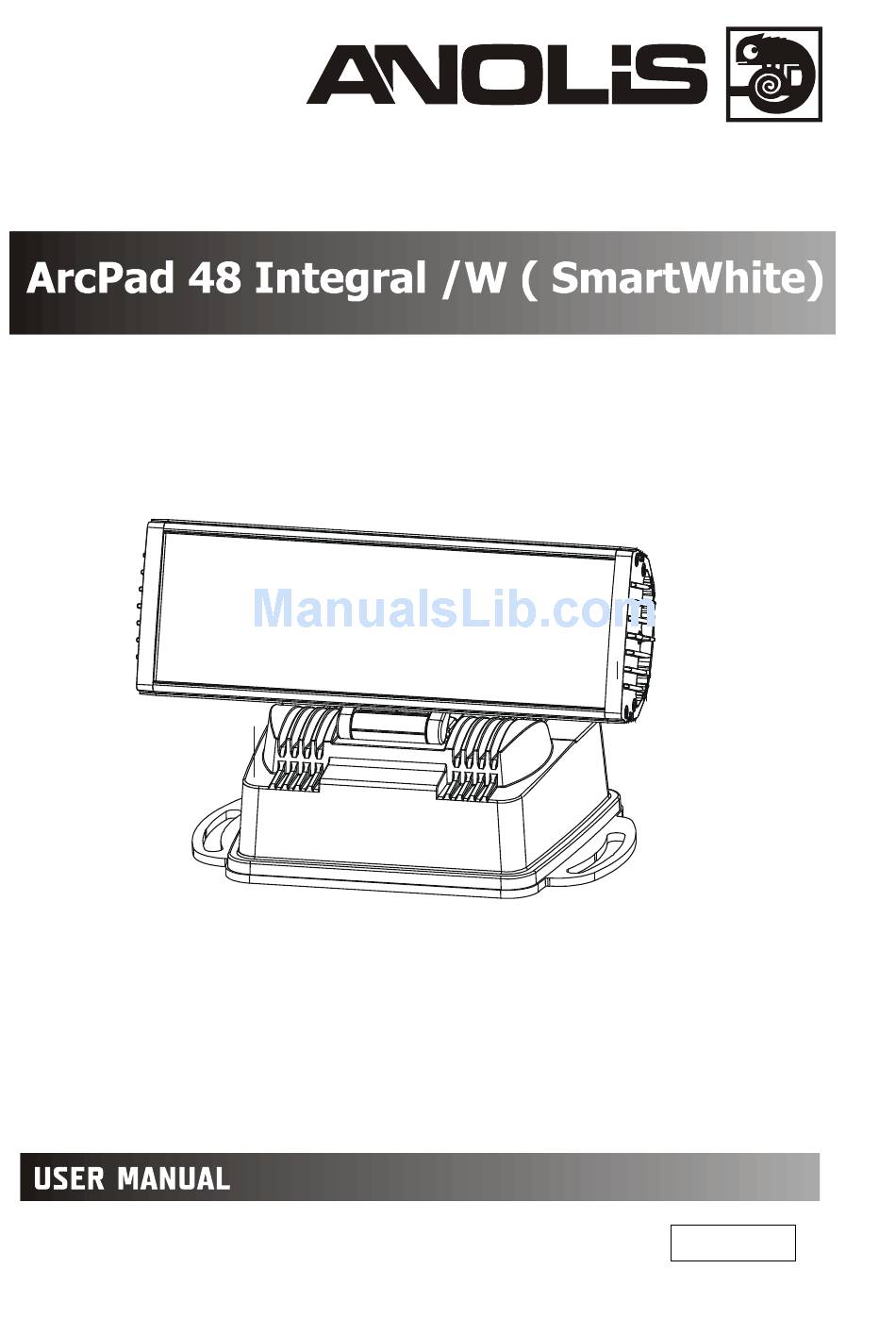

- Page 1 Version 1.7...
-
Page 2: Table Of Contents
ArcPad 48 Integral/Wireless DMX (SmartWhite) Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to the mains ............................6 3.3 Installation of the barn-doors ..........................8 3.4 Setting and control ............................... -
Page 3: Safety Instructions
ArcPad 48 Integral/Wireless DMX (SmartWhite) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad 48 Integral/W ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. - Page 4 ArcPad 48 Integral/Wireless DMX (SmartWhite) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
-
Page 5: Fixture Exterior View
3. Installation 3.1 Mounting the fixture The ArcPad 48 Integral/W can be arranged in any position orientation.The ArcPad 48 Integral´s radiator with LEDs is mounted on an adjustable bracket for “tilt” adjustment into many positions: Two slots (8.5mm wide) in the fixture base serve for mounting on the non-flammable flat surface:... -
Page 6: Connection To The Mains
Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulation. The ArcPad 48 Integral/W is equiped with with a 5-cored power/data cable. The 3 cores serve for the power supply and next 2 shielded cores are intended for DMX connection. - Page 7 ArcPad 48 Integral/Wireless DMX (SmartWhite) The junction box allows to connect several fixtures in a daisy chain of the power/data cable. Use the 3 x 1.5mm power cable to connect the first junction box with the mains and the power/data cable for connecting fixtures each other.
-
Page 8: Installation Of The Barn-Doors
ArcPad 48 Integral/Wireless DMX (SmartWhite) 3.3 Installation of the barn-doors You can install the barn-doors to better define illuminated surface. To install the barn-door module: 1. Disconnect the fixture from the mains. 2. Put the top edge of the barn-doors module into the second groove on the top side of the radiator ( detail A) and the bottom edge into the second groove on the bottom side of the radiator and tighten four locking screws M2 to secure this barn-doors module on the radiator. -
Page 9: Setting And Control
ArcPad 48 Integral/Wireless DMX (SmartWhite) 3.4 Setting and control For setting DMX address, selecting DMX mode and for another settings you need either Robe Universal Interface WTX or the RDM Communicator. Please see the Robe Universal Interface WTX or RDM Communicator user manuals to get more information about this products. -
Page 10: Arcpad 48 Integral (Smartwhite) - Dmx Protocol
ArcPad 48 Integral/Wireless DMX (SmartWhite) 4. ArcPad 48 Integral (SmartWhite) - DMX protocol Version 1.0 Mode/Channel Value Function Type of control Warm white LEDs 0 - 255 Warm white LEDs saturation control (0-100%) proportional Cool white LEDs 0 - 255 Cool white LEDs saturation control (0-100%) proportional Ratio control*... -
Page 11: Control Menu Map
ArcPad 48 Integral/Wireless DMX (SmartWhite) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. FuLL totL rSEt totL rSEt... - Page 12 ArcPad 48 Integral/Wireless DMX (SmartWhite) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 LOAd FuLL In.Po. WWhi. 0-255 F.dim 0-255 Stor. rAd.t. OFF, 1-255 min. 60min. dFSE MAn.M. PrE.C. WWhi Wh.01..Wh.03 dimr di.01...di.06...
-
Page 13: Fixture Menu
ArcPad 48 Integral/Wireless DMX (SmartWhite) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 CoPY SPEC. rdML rdMH rAdI r.InF. r.UnL. Adj. WWhi. dimr CaL.U. Wh.1.1 Wh.1.4 Stor. uPd.M. 6. Fixture menu To browse the fixture menu, use the Robe Universal Interface WTX (RUNIT WTX): Run the RDM-network on your computer and click with the right button of the mouse on the fixture and select the Remote LED display option from the menu list as shown below. -
Page 14: Fixture Address
ArcPad 48 Integral/Wireless DMX (SmartWhite) The Remote LED Display window will appear. Now you can fullly control the fixture using the UP, Down, Enter, Escape and Reset buttons. 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave). dM.Ad. -
Page 15: Fixture Information
ArcPad 48 Integral/W has been fabricated. rESEt - the function shows the number of the operation hours that the ArcPad 48 Integral/W has been powered on in the “FuLL” mode since the counter was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN buttons and at the same time press the ENTER button. -
Page 16: Manual Mode
ArcPad 48 Integral/Wireless DMX (SmartWhite) DMX signal is received by means of the inbuilt wireless module rAd. I. - rAd.o.- the fixture receives wireless DMX and sends the signal to its wired DMX output. The fixture behaves as " Wireless/Wired" adapter. Note: the option „DMH.I.“... -
Page 17: Test Sequences
6. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the ArcPad 48 Integral/W. 6.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. -
Page 18: Special Functions
DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for ArcPad 48 Integral/W is the following. Parameter ID Discovery command... -
Page 19: Error And Information Messages
ArcPad 48 Integral/Wireless DMX (SmartWhite) SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. 8. Error and information messages t.M.Er.(Temperature measuring error) The message informs you that the LED module temperature sensor is defective. -
Page 20: Technical Specifications
ArcPad 48 Integral/Wireless DMX (SmartWhite) 9. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T 2.5A H • Power consumption: Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full) ( 2 LED Channels at full) Temperature Full mode... - Page 21 ArcPad 48 Integral/Wireless DMX (SmartWhite) Rigging • Two slots in the fixture base Temperatures • Maximum ambient temperature: 40° C • Maximum housing temperature: 80° C Dimensions (mm) ArcPad 48 Integral/W...
- Page 22 • 3 kg Protection factor • IP 67 Included items • 1 x ArcPad 48 Integral/W • 1 x Junction box • 1 x User manual • 1 x Gasket of cable grommet M20, PF ½ (P.N. 1305 1388) Optional accessories •...
-
Page 23: Cleaning And Maintenance
ArcPad 48 Integral/Wireless DMX (SmartWhite) 10. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent. - Page 24 ArcPad 48 Integral/Wireless DMX (SmartWhite)
