ULTRAFRYER Systems PAR-3-14HE CE Operating Instructions Manual page 39

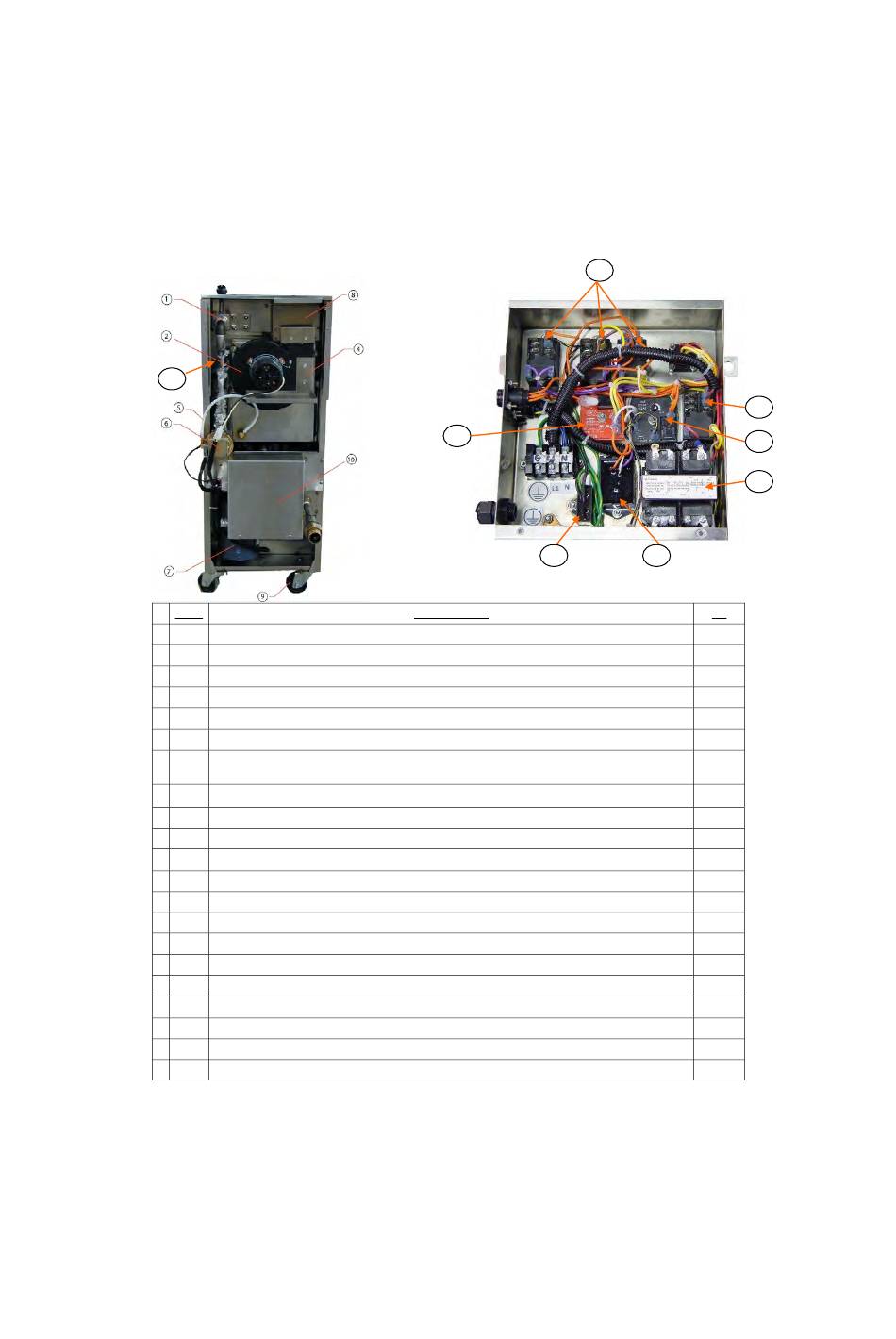

ULTRAFRYER MODEL PAR 3-H FRYER REAR VIEW
21
ITEM
1 1⁄2" (13mm) FPT S/S Female Bulkhead Coupling w/Raised Button Release
2 14" Model PAR-3-H CE 220 Volt 60 HZ Exhaust Blower Motor Kit w/Mounting Bracket
3 14" Model PAR-3-H CE Exhaust Blower Motor Gasket
4 Exhaust Blower Motor Drip Pan
5 3/16" (5mm) ID 5/16" (8mm) OD Air Pressure Switch Plastic Tube rated for 500˚ F (260˚C)
6 Air Pressure Switch
7 230/240 VAC 50/60 Mhz motor
5.5 GPM (19.25 LPM) pump
8 14" Model PAR-3-H CE 53⁄4" x 8" High (146 x 208mm) Rectangular Flue Tube with deflector
* 9 Medium Duty 3" (76mm) Rear Caster w/out Brake
10 Electrical Box Assy
* 11 240 Volt 75 Watt Silicon Heater 5‟ (1524mm) Long
* 12 1⁄2" (13mm) Pump Ball Valve
13 Rear Exit Weldment Baffle
14 240 Volt Surge Protector
15 Filter Circuit
16 Relay, Delay on Break 24 VAC
17 Relay, Delay on make 24 VAC
18 24 VAC DPDT Relay
19 24 VDC DPDT Relay
20 Transformer, Step Down 240 / 24 VAC
21 Thermostat, OOR SPST for Heater strip
* NOT SHOWN
17
14
ELECTICAL BOX PN 12C195
DESCRIPTION
Page 32
19
18
16
20
15
PN
24A209
19A547
19A545
19A527
24A068
18A291
24A206
24329
19A910
28A011
12C195
23401
24-036
19A463
18A063
12C191
18A099
23A232
18A076
18A301
18A066
18A315
30A134
