C. CLEANING THE FILTER TUB AFTER FILTERING & AT CLOSING AS FOLLOWS:
1. Disassemble the Filter tub by removing the following items in the order listed; 1) FILTER TUB COVER, 2) CRUMB
CATCHER SCREEN, 3) FILTER SCREEN W/STANDPIPE/DOCKING attached; then 4) separate the STANDPIPE and
DOCKING ASSEMBLY from the Filter Screen.
2. Clean the Wash Down Hose with sanitizer solution; then hang the Wash Down Hose in an upright position so shortening
can drain into a container.
3. Discard crumb fragments in the Crumb Catcher Pan and THOROUGHLY clean the pan with HOT water and let it air dry.
4. Raise the Filter Assembly with Standpipe and Docking Assembly attached, above the Filter Tub and let any sediment or
shortening drain into the tub; then separate the standpipe/docking assembly from the Filter Screen and clean the assembly
with sanitizer solution and wipe it dry with a lint free cloth. Remove any sediment and shortening in the Filter tub using a
scraper; then wipe the tub dry with paper towels.

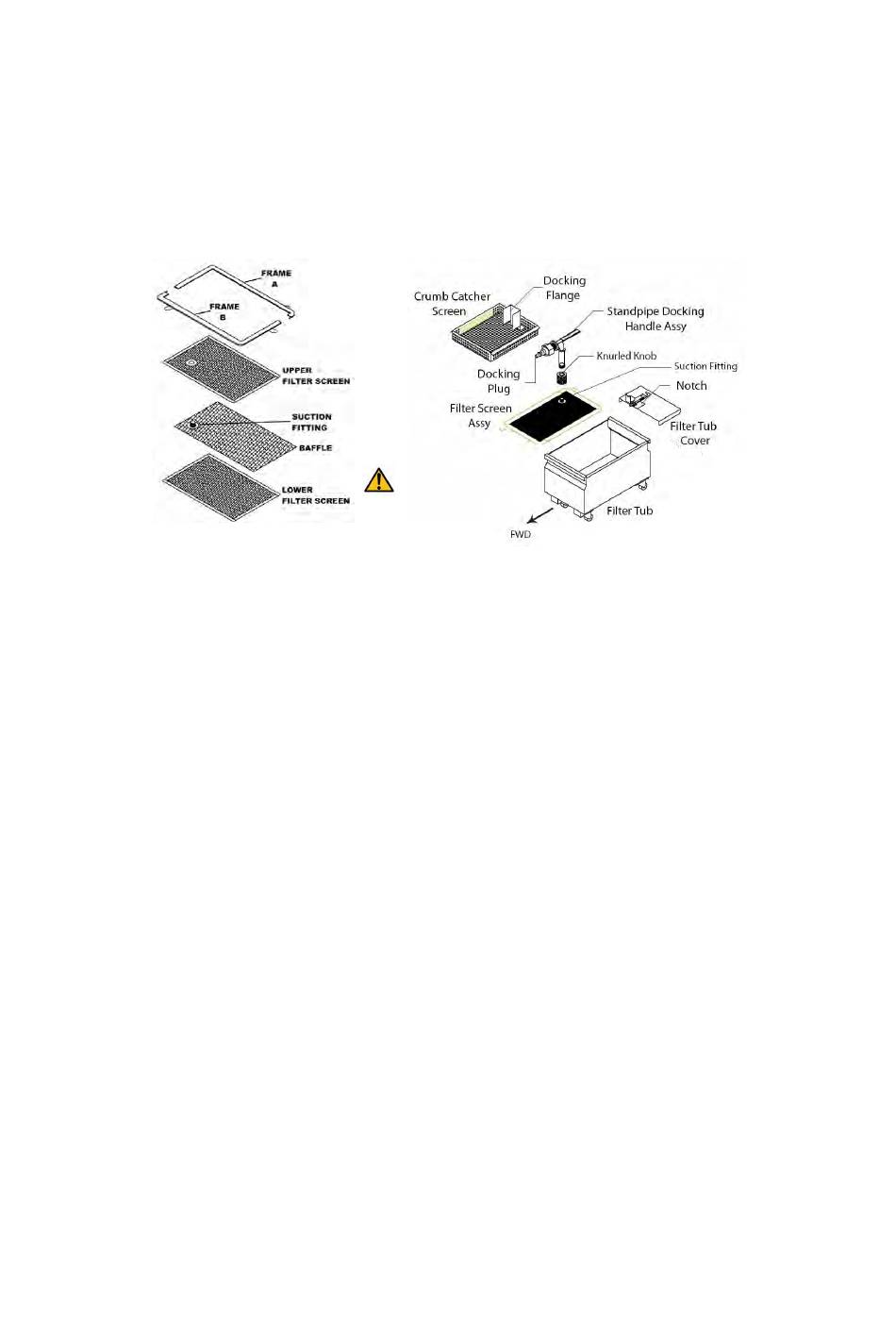

D1. THOROUGHLY CLEAN THE FILTER ASSEMBLY FOLLOWS:
1. "Micro-Mesh" Stainless Steel Filter Screen
a. CAREFULLY remove any debris from the screen using a scraper.
b. Grasp the FINGER LOOP on FRAME A and adjacent FINGER LOOP on FRAME B, EVENLY pull the frames
apart; then HINGE FRAME A to remove it from the FILTER SCREENS FIRST.
c. Grasp the FINGER LOOP on the straight side of FRAME B; then HINGE it to remove FRAME B from the
FILTER SCREENS.
d. Separate the UPPER FILTER SCREEN and BAFFLE from the LOWER FILTER SCREEN.
e. CAREFULLY clean the two frames, screens and baffle in the 3 compartment sink with hot water and allow these
items to air dry. DO NOT USE SOAP. If necessary the channels in each frame can be cleaned with the edge of a
scotch-brite pad.
f. Insert the SUCTION FITTING on the BAFFLE in the hole of the UPPER FILTER SCREEN; then place these items
on top of the LOWER FILTER SCREEN.
g. ENSURE all sides of the FILTER SCREEN assembly are aligned, place the PIN end of FRAME A on the FILTER
SCREENS, place the CHANNEL on the frame adjacent to the PIN end over the FILTER SCREENS; then HINGE the
frame so the edge of the FILTER SCREENS are inserted in the other CHANNEL of FRAME A.
h. Place the PIN end of FRAME B on the FILTER SCREENS so the PIN is seated in the CHANNEL of FRAME A
near the FINGER LOOP, place the CHANNEL on the frame adjacent to the PIN end over the edge of the FILTER
SCREENS; then HINGE the frame so the edge of the FILTER SCREENS are inserted in the other CHANNEL of
FRAME B and the PIN of FRAME A is seated in the CHANNEL of FRAME B.
i. Adjust FRAME A and B so both PINS are properly seated in the CHANNEL of the opposite frame; then CARE-
FULLY connect the KNURL KNOB on the STANDPIPE/DOCKING ASSEMBLY to the SUCTION FITTING on
the FILTER SCREEN assembly. DO NOT OVERTIGHTEN!!!
NOTE: Optional Magnepad
Filter Pad not shown
